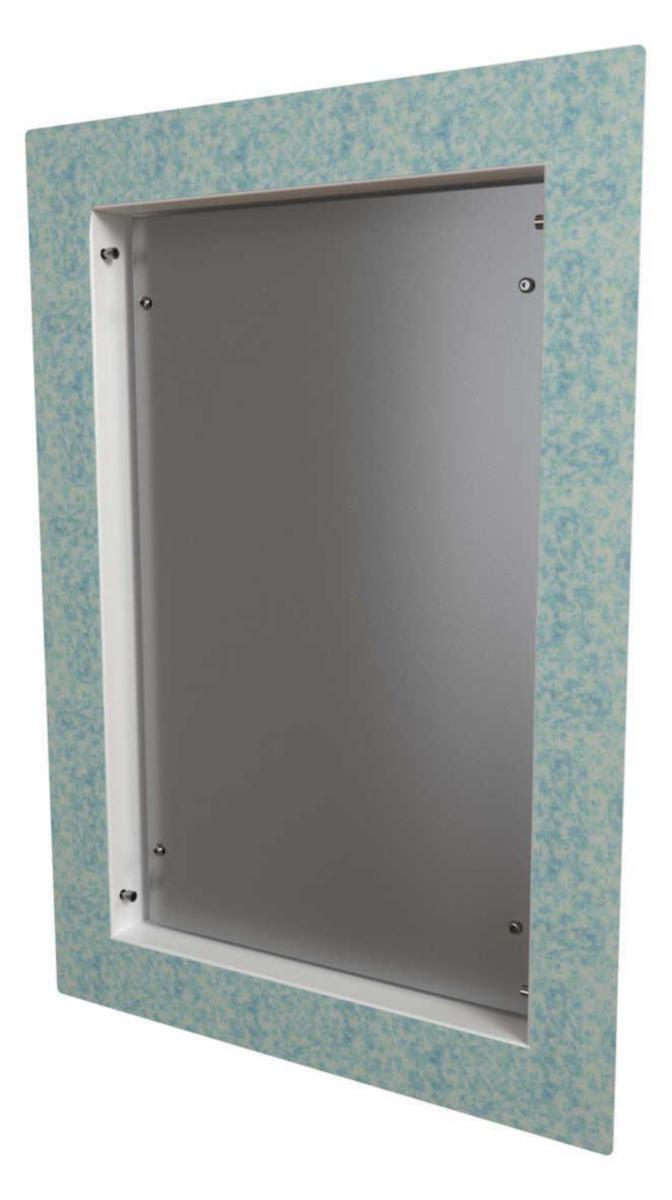

Wet zone hatch preseal, LK

LK Wet Zone Hatch Preseal has a prefabricated foil flange and is tested and approved for sitting in a wet zone, but not in place for bathing and showering.
The current list of system-approved brands of waterproofing layers and installation instructions for connecting waterproofing layers to LK Wet Zone Hatch Preseal for each brand is available at www.lksystems.se/sv/support/dokumentation/dokumentation-anslutning-tatskikt
LK Wet Zone Hatch Preseal requires a free construction depth of at least 65 mm from the outside of the wet room panel to the front edge of the LK Manifold Cabinet or other installation, eg LK Shaft Bottom SECURE. Table with dimensions for drilling holes can be found in the installation instructions.
LK Wet Zone Door Preseal can be mounted against a distribution cabinet or in a building frame. Accessories for both mounting methods are included. The outer frame can be adjusted between 3–13 mm so that the frame lives with the surface layer of the wall.
LK Wet Zone Hatch Preseal must be supplemented with LK Tile Design Preseal or LK Standard Design Preseal.
Parts fixed to the wall are made of stainless steel, other parts are in galvanized sheet steel, white color RAL9016.
The product must be stored in a temperate and frost-free environment.
