Valve coupling PressPex, LK

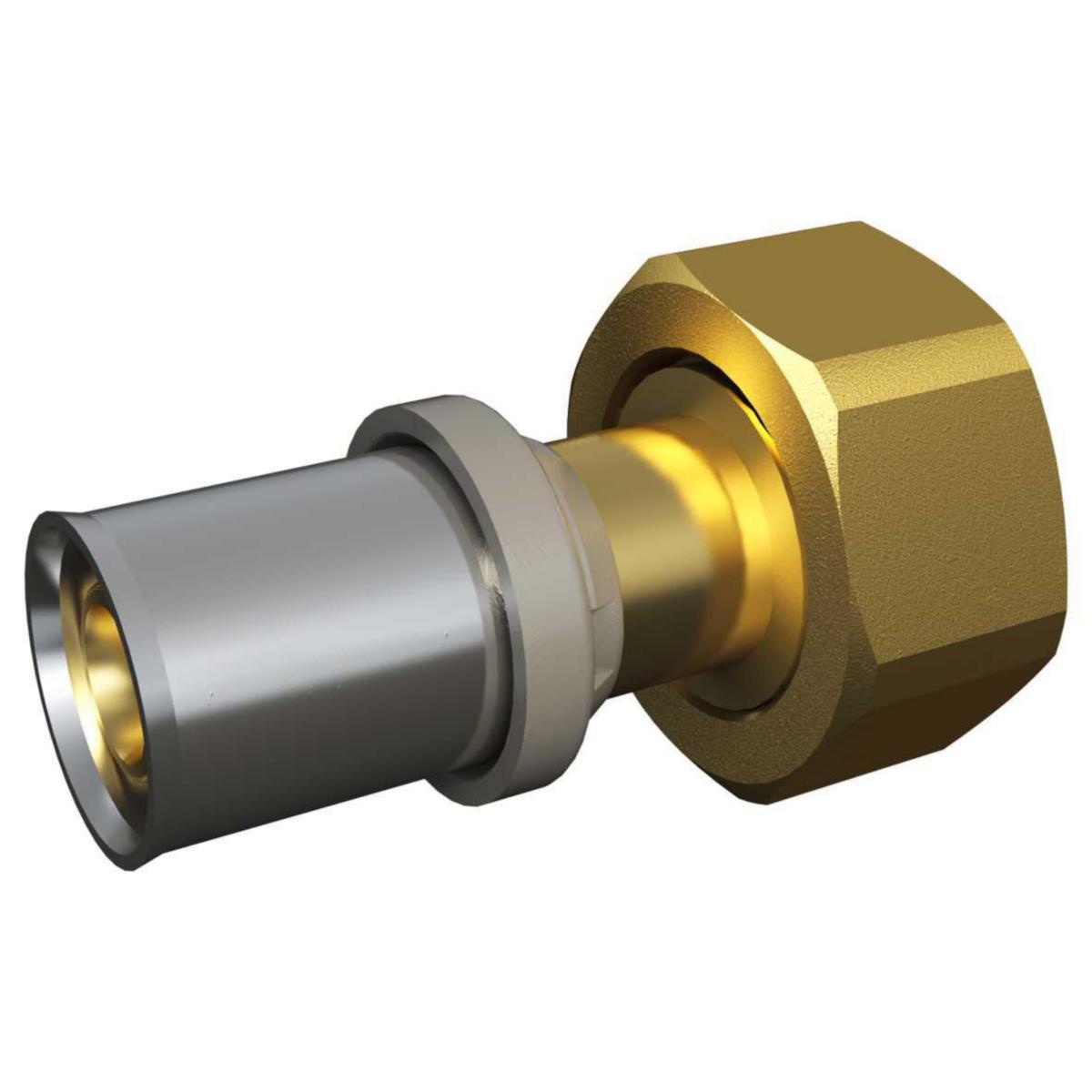

LK PRESSPEX VALVE FITTING AX20 LK SYSTEMS
Article number: Suppl. article no:
1882572
1882572
to see price and stock
Pressure coupling for joining LK PAL and LK PE-X Universal pipes. The coupling has a metallic seal against LK Ball valve high neck,
M-Thread available in the corresponding dimension M26 - M70. All dimensions have yellow connector housing.
M-Thread available in the corresponding dimension M26 - M70. All dimensions have yellow connector housing.
- Article number: 1882572
- Suppl. article no: 1882572
- Ean no: 7331590054399
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/12 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: M26 x 1.5
- Outer pipe diameter connection 1: 20 mm
- Outer pipe diameter connection 2: 26 mm
- Connection 1: Press sleeve
- Connection 2: Internal thread metric
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- KIWA certified: Yes
- Medium temperature (continuous): -20-70 °C
- Contour code connection 1: TH
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Length: 52.5 mm
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 1-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Brass
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- High tensile strength: Yes
- Eccentric: No
- REACH Date: 2025-06-25
- GWP-tot (A1-A3): 0,27 kgCO2e/ST
- Design: M26
- REACH Information obligation: No
