LK

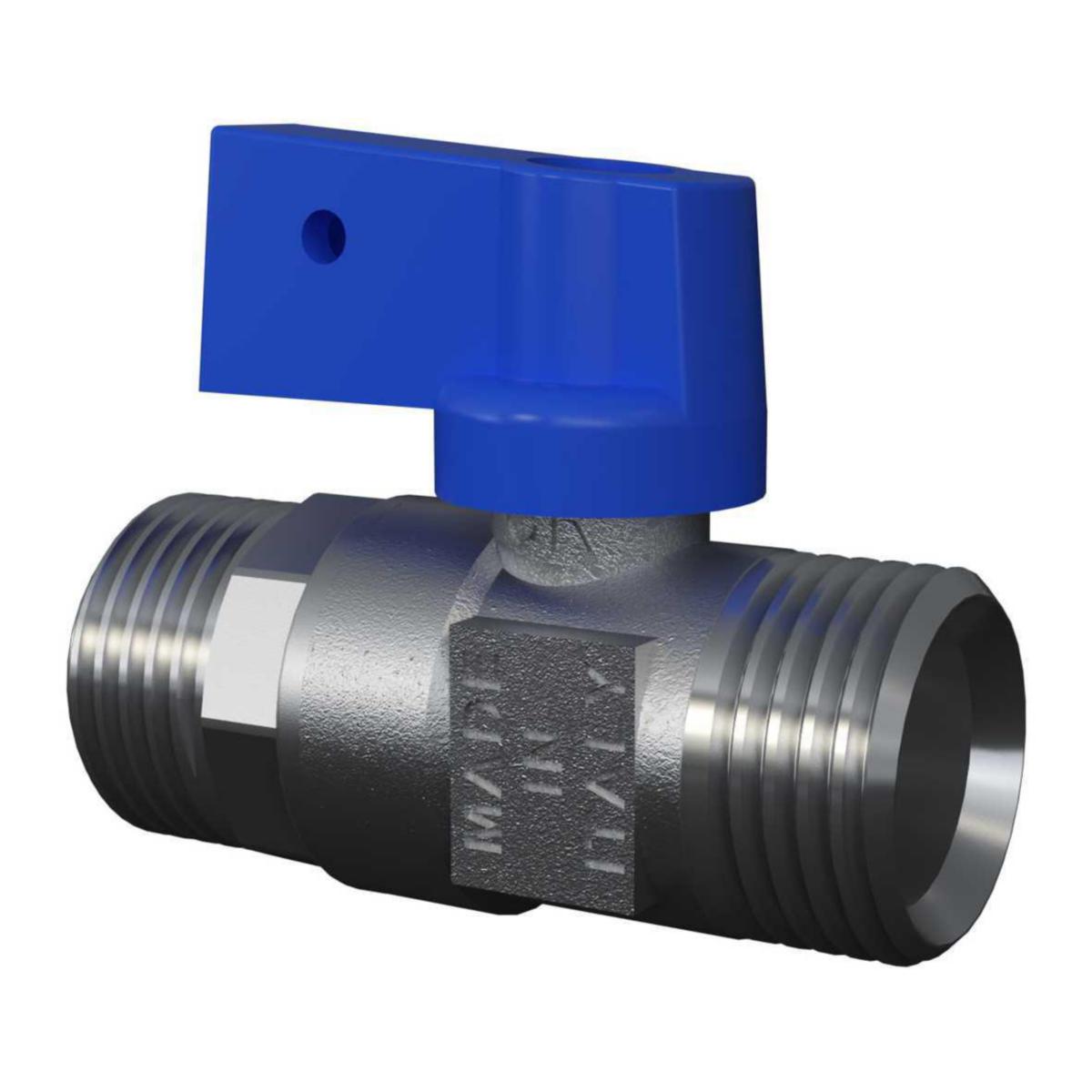

Ball Valve 827 Blue/Red, straight external, LK
BALL VALVE 827 BLUE. STRAIGHT LK SYSTEMS
Article number: Suppl. article no:
1882565
1882565
to see price and stock
Shut-off valve in zinc-resistant brass. Exterior G15 EuroCone threads at both ends.
- Article number: 1882565
- Suppl. article no: 1882565
- Ean no: 7331590056508
- Material class PAM130
Technical data
- Packagin Size: 1 ST/25 ST
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Material ball: Brass
- Material spindle: Brass
- Material secondary spindle seal: NBR (nitrile rubber)
- Material primary spindle seal: NBR (nitrile rubber)
- Article compression class: PN 10
- Medium temperature (continuous): 0-90 °C
- Max. pressure difference at 20 °C: 10 bar
- Housing material: Brass
- Model: Straight
- Full bore: No
- With drain valve: No
- With drain possibility (connection): No
- Operation: Turn button
- Medically clean: No
- Grease-free: No
- Fire-safe: No
- LPCB quality mark: No
- ULC quality mark: No
- UL quality mark: No
- FM quality mark: No
- Housing construction: 1-part
- With coupling connection 2: No
- With coupling connection 1: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- Design: Blue
- REACH Information obligation: Yes
