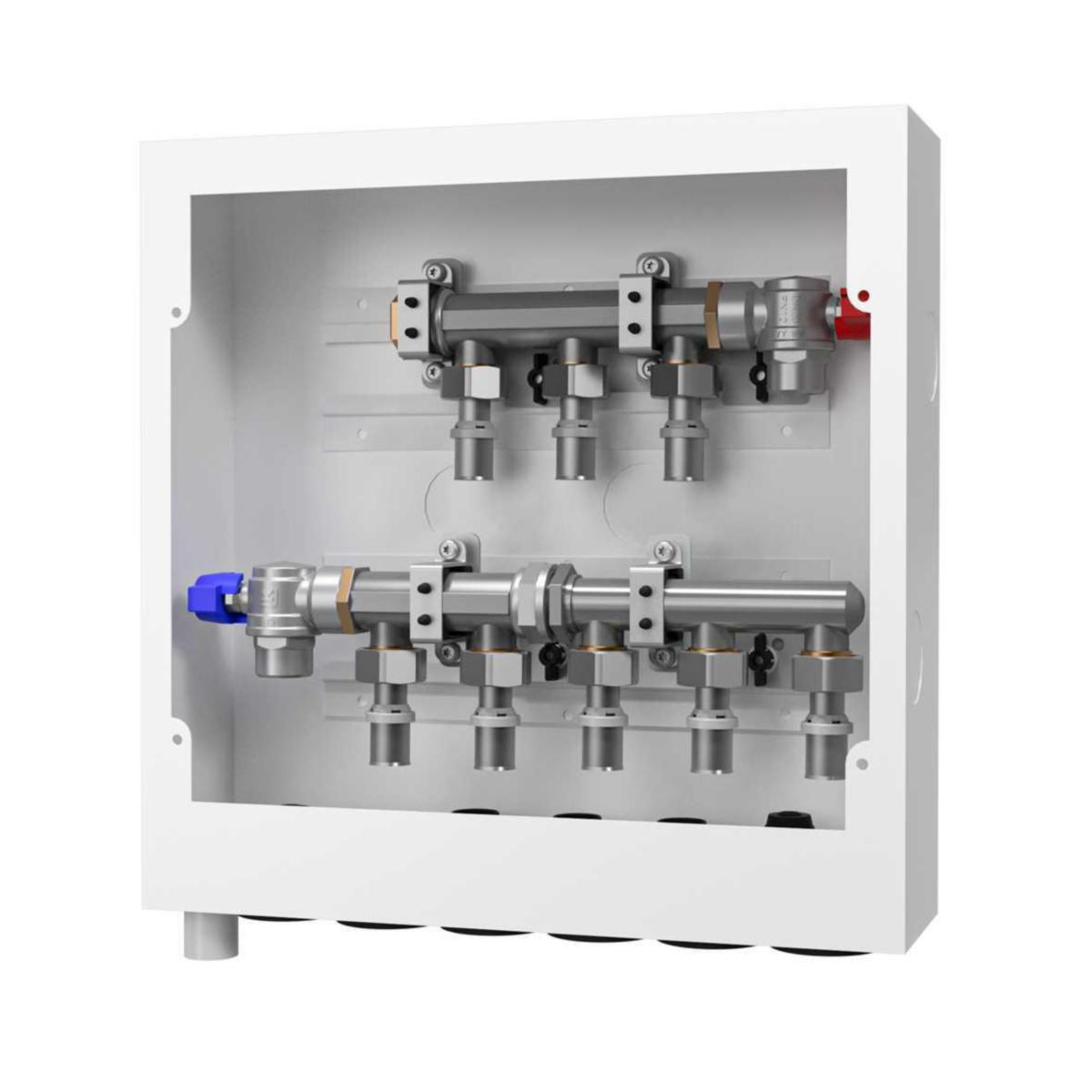

Distributor cabinet UNI 5/3 mini, LK

LK Prefab cabinet UNI 5/3 mini is a leak-proof prefabricated distribution cabinet for 5 cold water connections and 3 hot water connections.
Prepared for feeding with stem from below.
Supplied with ball valves with blue knob for cold water or red hot water knob. The ball valves have connection G20 out. Euroconus.
Supplied complete with required cabinet penetrations for both supply and connection lines.
8 LK Press connection connection AX16xG15 for connection lines included.
All distributors, couplings and ball valves are made of zinc-resistant brass.
The cabinet has a waterproof bottom with 50 mm high front edge and approved according to NT VVS 129.
Protective bag to wood over the cabinet during construction is included.
To be able to mount and fit with the drainage pipe, the cabinet must be mounted at a minimum height of 250 mm from the bottom of the cabinet bottom to the finished floor. The drainage pipe must be fitted with cases.
NOTE! LK Frame / door INB Switch cabinet UNI 350x350 ordered separately, fits LK Prefab cabinet UNI 5/3 mini.
