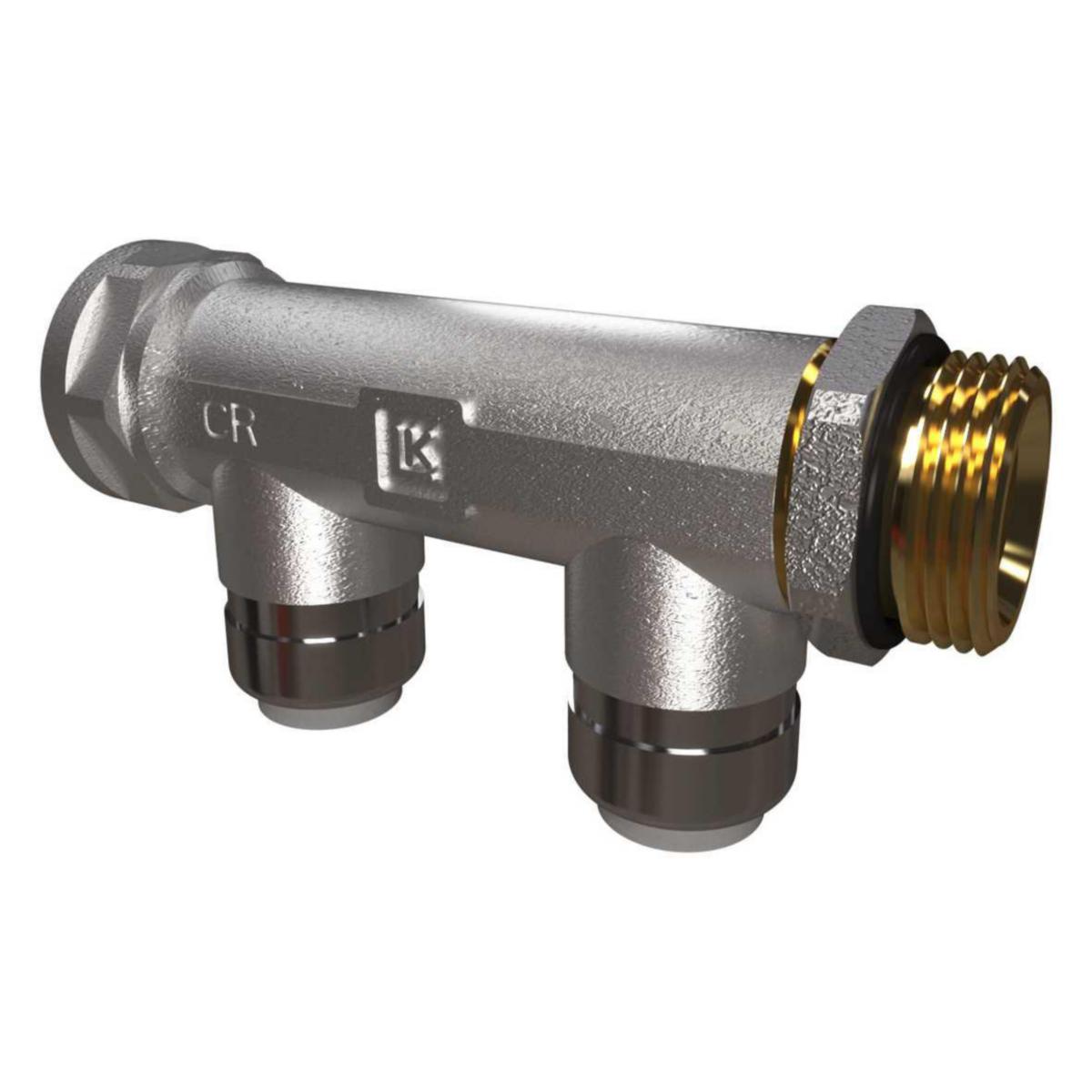

Distributor UNI PushFit 2/3, LK
MANIFOLD UNI PUSH 2-AX16 UNI PUSHFIT 2-AX16
Article number: Suppl. article no:
1882499
1882499
to see price and stock
Buildable distributor for heating and tap water systems. Mounted on wall in LK Distributor Console or in LK Distributor Cabinet UNI.
Made of zinc-resistant brass, nickel-plated.
Distributors UNI 2-AX16 and 3-AX16 have connection G20 (output and input) for supply line and
AX16 PushFit connection with c / c 50 mm on the side.
Distributors UNI 1-AX16, AX20 & AX25 have connection G20 (output and input) for supply line.
All types have o-ring seals on the outside G20 side for supply line which facilitates
assembly of 2 distributors without additional sealing.
All distributors come complete with support sleeves mounted.
Push connector designed for LK PE-X and PAL Universal pipes.
Made of zinc-resistant brass, nickel-plated.
Distributors UNI 2-AX16 and 3-AX16 have connection G20 (output and input) for supply line and
AX16 PushFit connection with c / c 50 mm on the side.
Distributors UNI 1-AX16, AX20 & AX25 have connection G20 (output and input) for supply line.
All types have o-ring seals on the outside G20 side for supply line which facilitates
assembly of 2 distributors without additional sealing.
All distributors come complete with support sleeves mounted.
Push connector designed for LK PE-X and PAL Universal pipes.
- Article number: 1882499
- Suppl. article no: 1882499
- Ean no: 7331590051640
- Replaces art.nbr: 1880642
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/48 ST
- Outer pipe diameter branches: 16 mm
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Nominal diameter branches: Other
- Number of branches: 2
- Number of branching directions: 1
- Distance between offset: 50 mm
- Material: Brass
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Deviant distance between branches: No
- Material quality: Other
- Mounting method: Built-in
- Max. medium temperature (continuous): 70 °C
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,8034 kgCO2e/ST
- REACH Date: 2023-02-15
- REACH Information obligation: Yes
