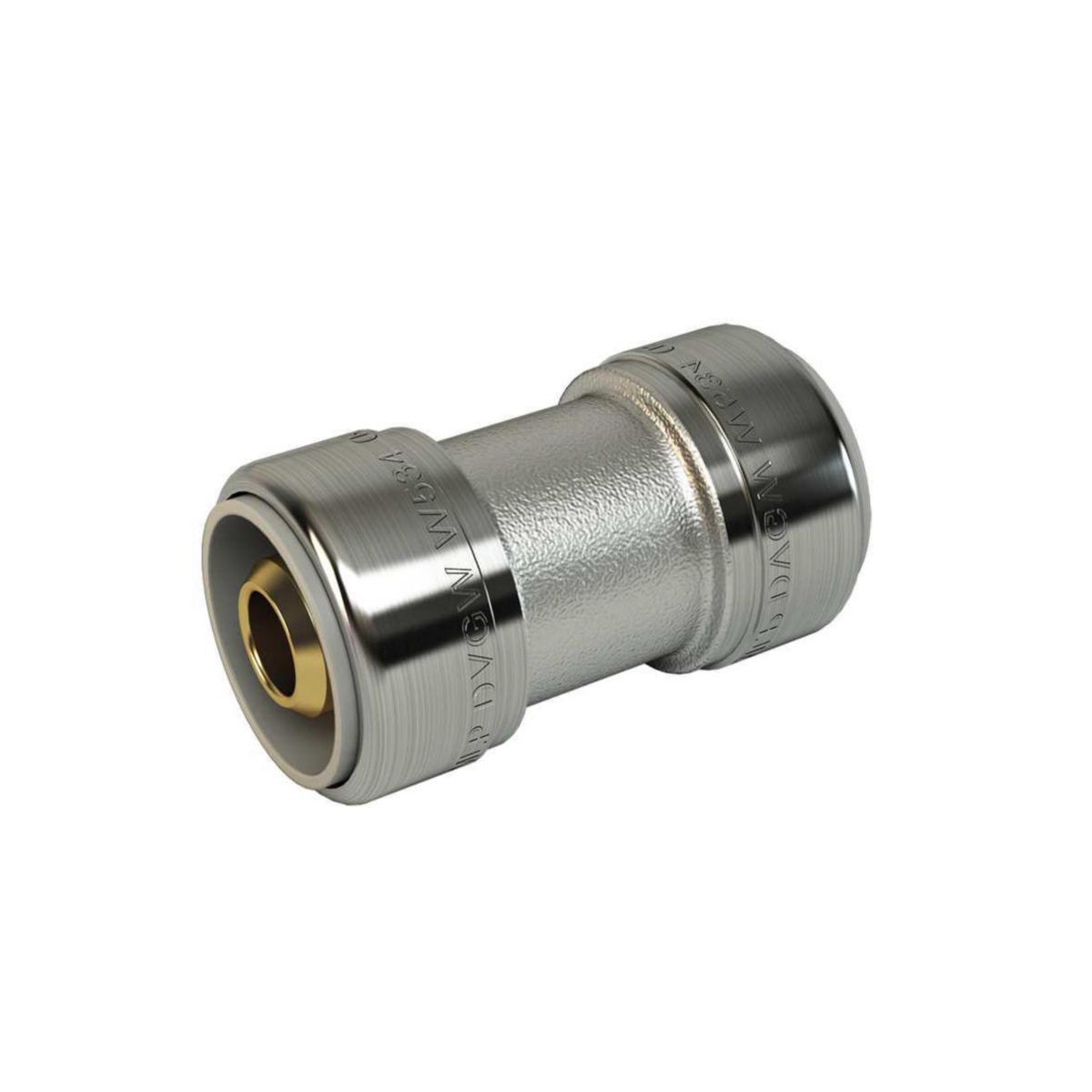

Straight coupling PushFit chrome, LK
PUSHFIT STRAIGHT COUPLING AX16 LK
Article number: Suppl. article no:
1882448
1882448
to see price and stock
Push connector designed for LK PE-X and PAL Universal pipes. Comes complete with mounted support sleeve.
- Article number: 1882448
- Suppl. article no: 1882448
- Ean no: 7331590050087
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: Other
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 2: 16 mm
- Connection 1: Insert (push-fitting)
- Connection 2: Insert (push-fitting)
- Shape: Straight
- Material connection 2: Brass
- Material connection 1: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 10 bar
- With de-aerator: No
- With drain valve: No
- With sealing rings/gaskets: No
- Capped: No
- With buffer stud: Yes
- Model: 1-part
- System specific: Yes
- Medium temperature (continuous): 0-70 °C
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Reducing: No
- UL quality mark: No
- ULC quality mark: No
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Nickel-plated
- LPCB quality mark: No
- FM quality mark: No
- Eccentric: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,1421 kgCO2e/ST
- REACH Information obligation: Yes
