AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

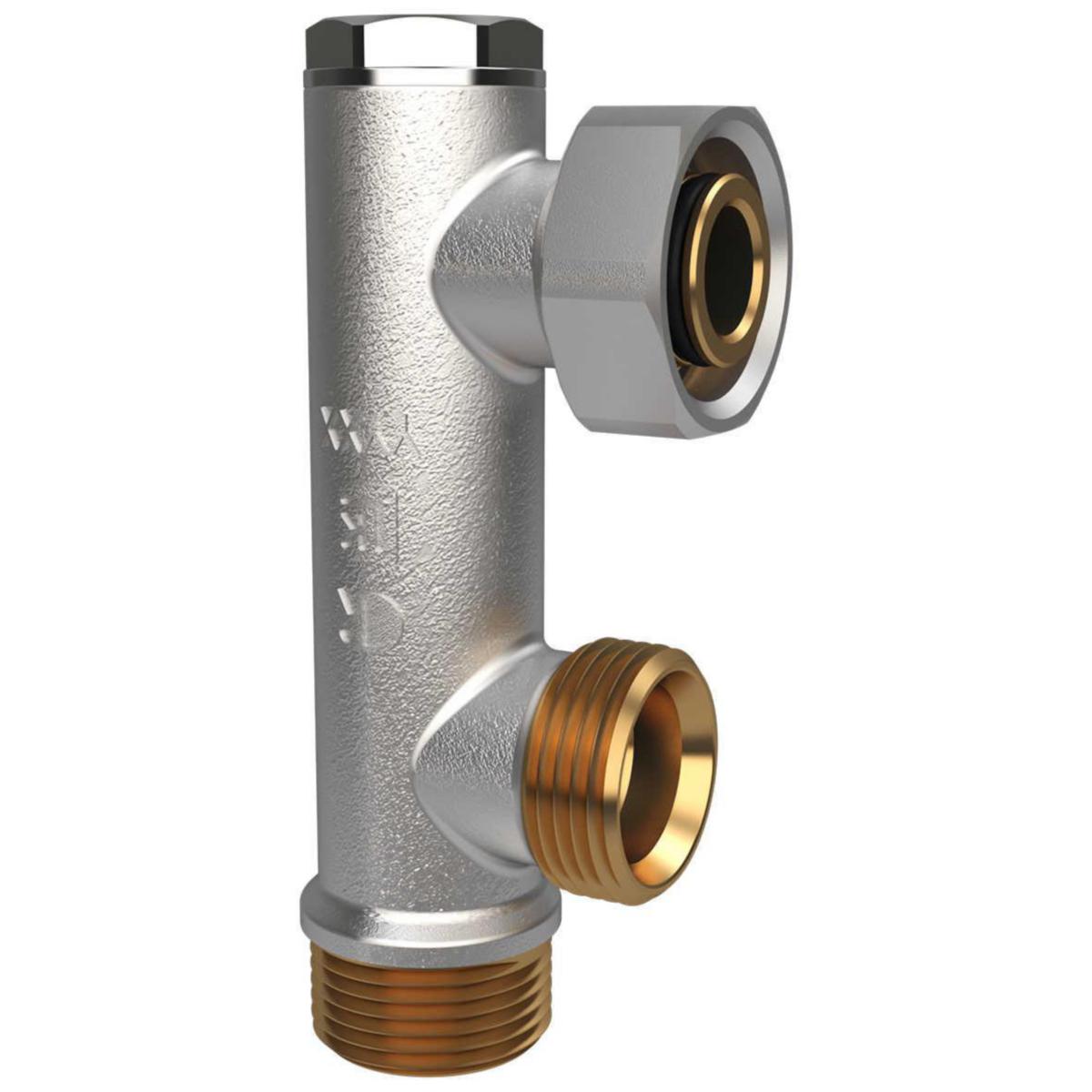

Distributor VVC UNI, LK
MANIFOLD HWR LK SYSTEMS
Article number: Suppl. article no:
1882360
1882360
to see price and stock
- Article number: 1882360
- Suppl. article no: 1882360
- Ean no: 7331590051794
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 2: 20 mm
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: Other
- Nominal diameter branches: 3/4 inch (20)
- Number of branches: 2
- Number of branching directions: 1
- Distance between offset: 50 mm
- Material: Brass
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Other
- Deviant distance between branches: No
- Material quality: Other
- Article compression class: PN 10
- Mounting method: Surface mounting
- Suitable for cooling water: Yes
- Suitable for tap water: Yes
- Suitable for central heating water: Yes
- Shape: Throughflow with angled branches
- Suitable for glycol: Yes
- Suitable for compressed air: Yes
- With de-aeration: No
- With shut-off valve: No
- With legs: No
- With insulation: No
- With mounting material: No
- With wall-mounting bracket: No
- System specific: No
- Surface protection: Nickel-plated
- Max. medium temperature (continuous): 75 °C
- With fill- and drain valve: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 1,2288 kgCO2e/ST
- REACH Information obligation: Yes
