AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

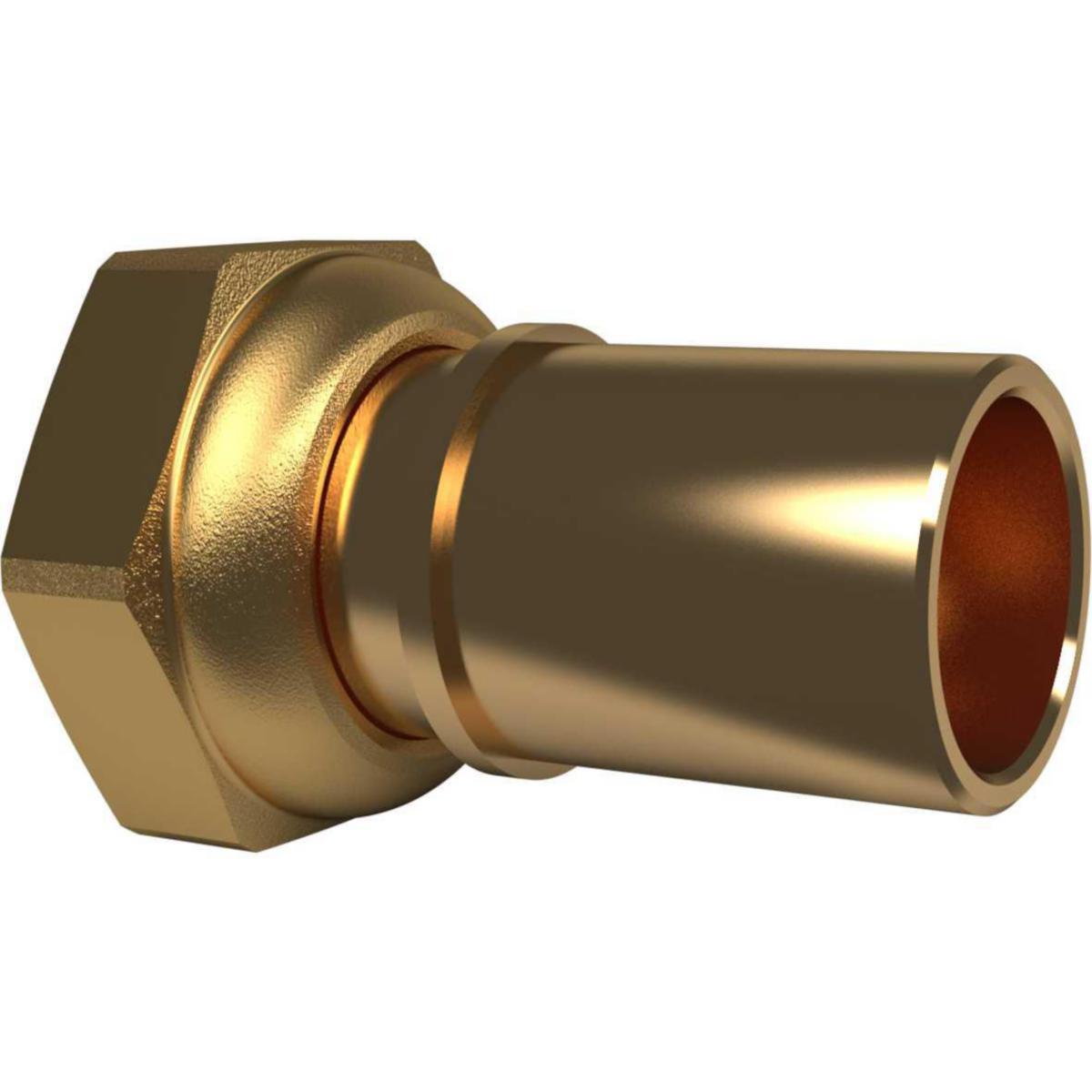

Connection coupling, Press connection coupling-CU, LK
LK PRESS CONNECTION-CU22 LK SYSTEMS
Article number: Suppl. article no:
1882217
1882217
to see price and stock
- Article number: 1882217
- Suppl. article no: 1882217
- Ean no: 7331590045236
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/5 ST
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: Other
- Outer pipe diameter connection 2: 22 mm
- Connection 1: Euroconus
- Connection 2: Slide end
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- KIWA certified: Yes
- Medium temperature (continuous): 0-70 °C
- Contour code connection 1: TH
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Length: 48.5 mm
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 1-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- With buffer stud: No
- System specific: No
- UL quality mark: No
- ULC quality mark: No
- Eccentric: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
