LK
Prefabricated Cabinet UNI 8/5, LK
PREFAB CABINET UNI 8/5 550 X 550 X 95, LK SYSTEMS
Article number: Suppl. article no:
1881530
1881530
to see price and stock

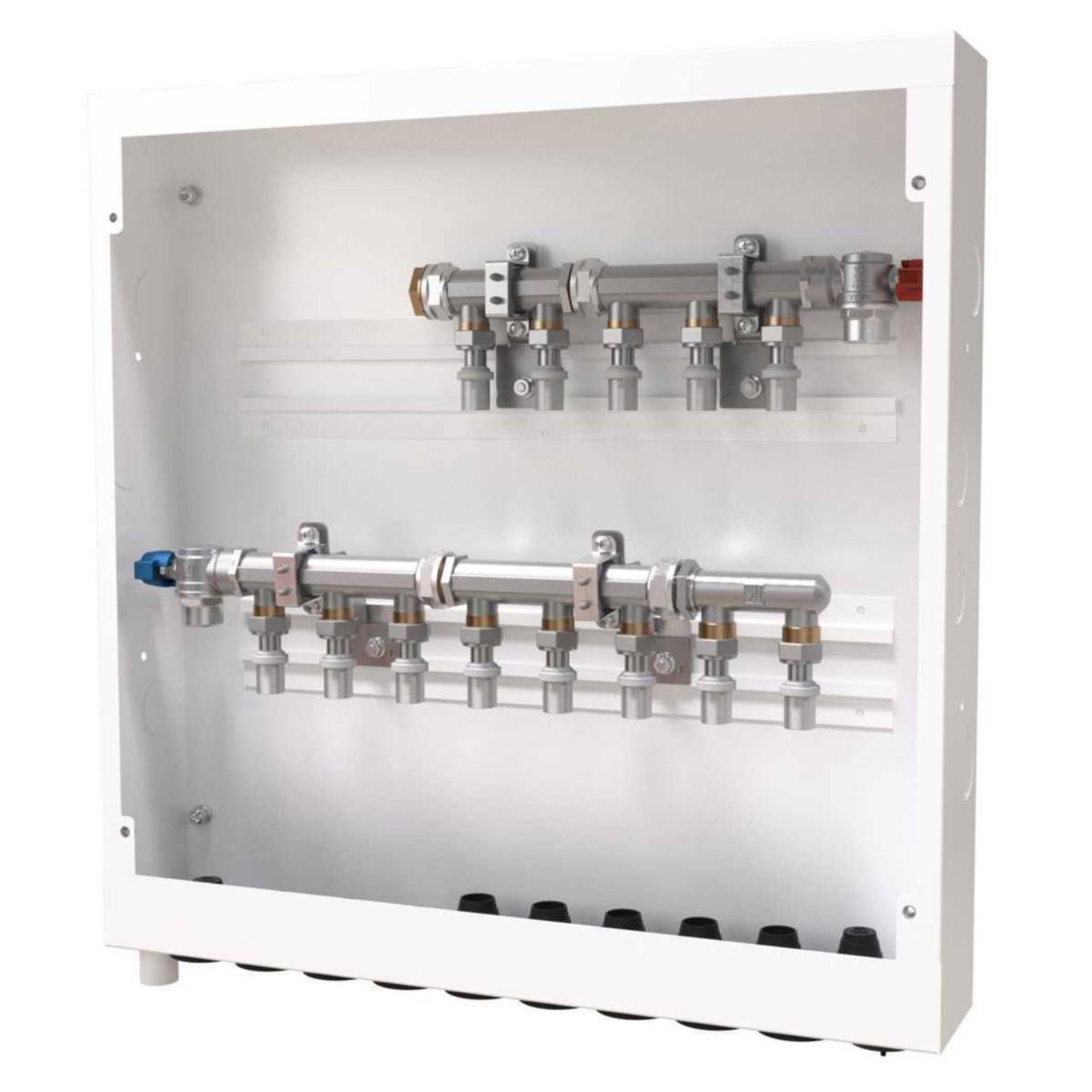

LK Prefab box UNI 8/5 is a spill-proof prefabricated distributor box for 8 cold water connections and 5 hot water connections. Prepared for mounting with stem from below. Comes complete with ball valves with blue knob for cold water or red knob for hot water. The ball valves have external G20 connection. Euroconus. Comes complete with all the required box penetrations for both feed and connection lines. 13 pcs LK Press connection link AX16 x G15 for the coupling wires are included. All distributors, couplings and ball valves are of dezincification hardy zinc hardened brass.
- Article number: 1881530
- Suppl. article no: 1881530
- Ean no: 7331590041566
- Material class PAM120
Technical data
- Packagin Size: 1 ST/14 ST
- Width: 550 mm
- Height: 550 mm
- Depth: 95 mm
- Housing colour: White
- Housing material: Steel
- With door: No
- With waterproof bottom: Yes
- With splash guard: Yes
- With pipe feed-through sealing: Yes
- With brackets for distributor: Yes
- Suitable for built-in mounting: Yes
- RAL-number housing: 9016
- Colour door: White
- With built-in distributor: Yes
- Number of holes in bottom: 20
- Suitable for surface mounting: Yes
- With outlet for leakage indication: Yes
- With open holes on top: No
- With holes in bottom: Yes
- Surface protection housing: Lacquered
- Material door: Steel
- Number of holes on top: 20
- With open holes on sides: No
- Number of holes/slots per side: 4
- Surface protection door: Lacquered
- With door frame: No
- REACH Date: 2025-06-25
- REACH Information obligation: No
