AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK
Embedding box, LK
WALLBOX CONCREATE AX16 DOUBLE UNI PRESSPEX 16MM, LK SYSTEMS
Article number: Suppl. article no:
1880667
1880667
to see price and stock

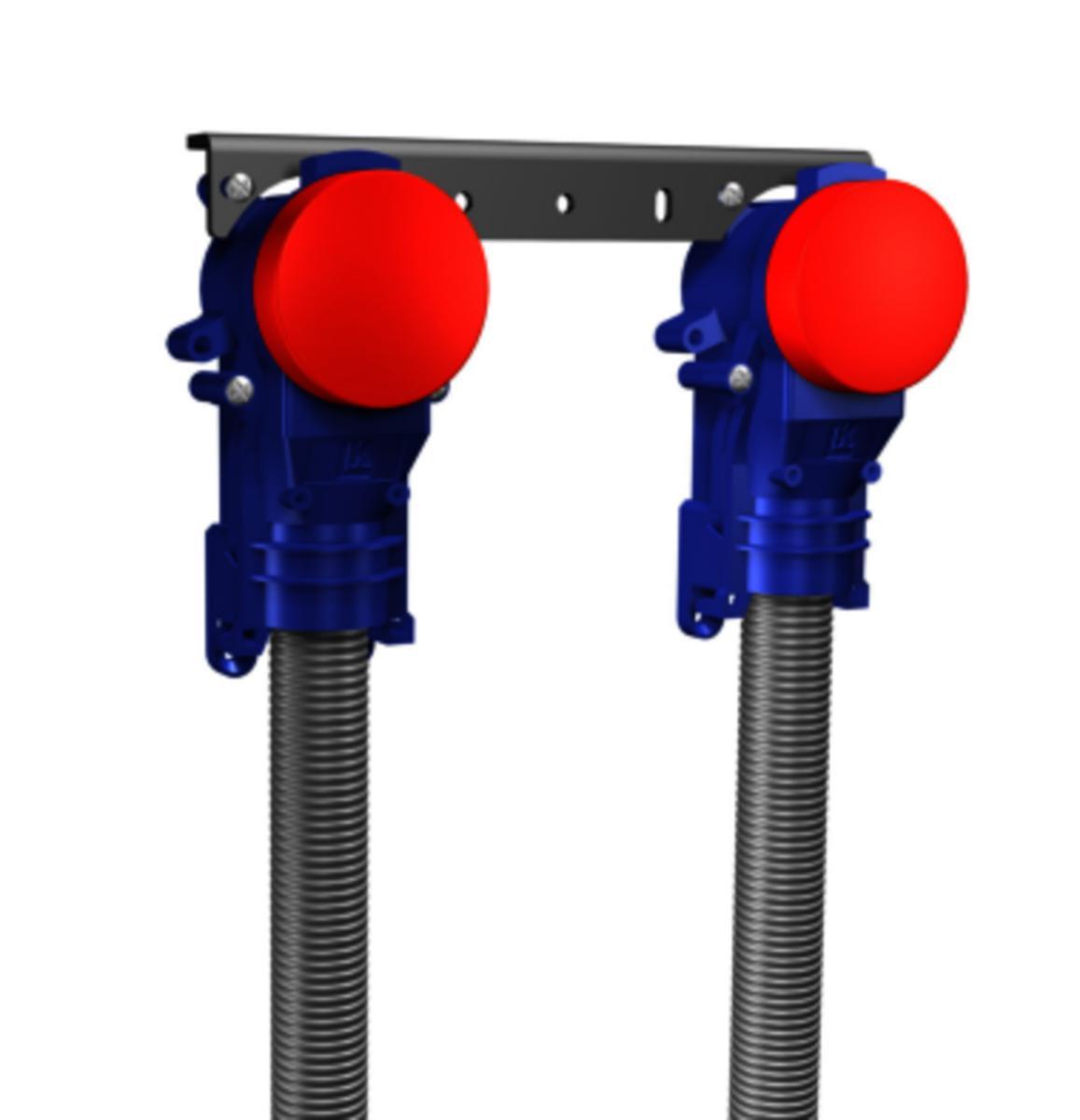

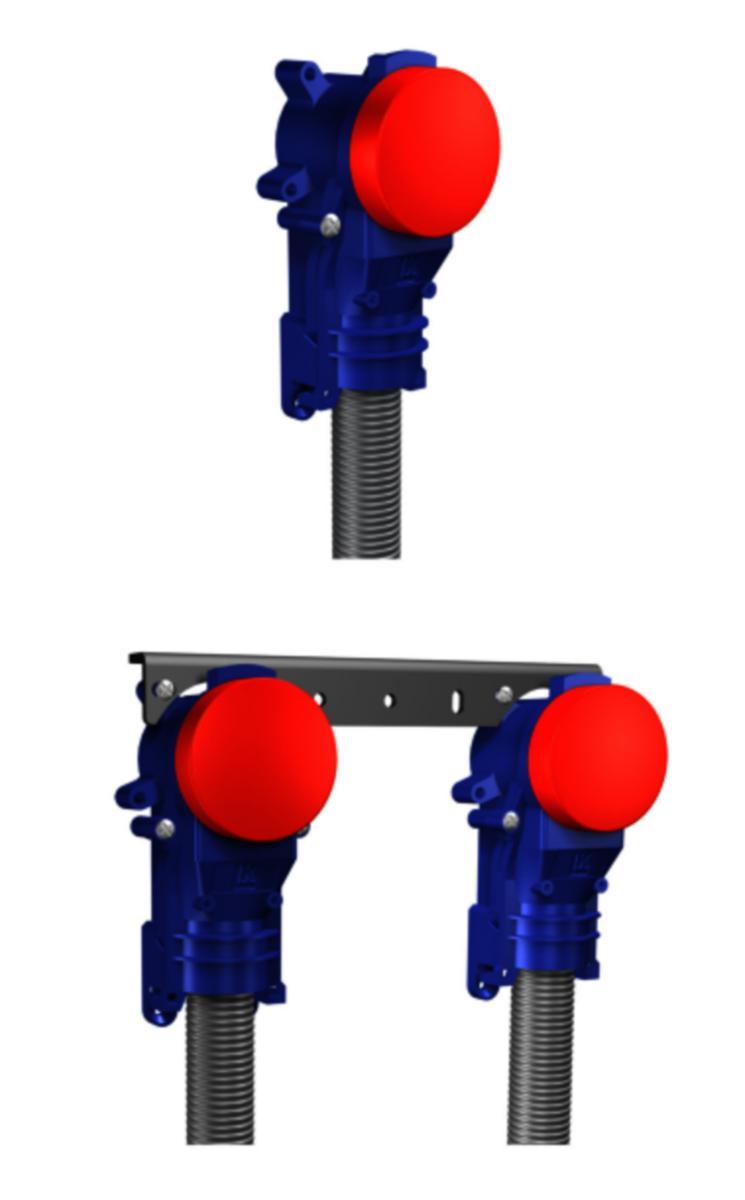

LK embedded box, simple and double, designed for pre-fabricated or cast-in-place
concrete walls.
For the double box, the pipe exit from the wall can have a variable c/c spacing of
150-160 mm. Supplied with c/c 150 mm, but is easily adjustable to c/c 160 mm.
concrete walls.
For the double box, the pipe exit from the wall can have a variable c/c spacing of
150-160 mm. Supplied with c/c 150 mm, but is easily adjustable to c/c 160 mm.
- Article number: 1880667
- Suppl. article no: 1880667
- Ean no: 7331590034834
- Material class PAM12A
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 16 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Model: Double
- Housing material: Acrylonitrile butadiene styrene (ABS)
- Outer diameter mantle pipe: 25 mm
- Connection 1: Press sleeve
- Suitable for concrete installation: Yes
- Suitable for stud wall: No
- With coupling: Yes
- With mounting plate: Yes
- System specific: Yes
- Material coupling: Brass
- Material quality coupling: Dezincification resistant brass (DZR)
- Centre distance boxes: 150/160 mm
- REACH contains candidate substances: Bly
- REACH Date: 2025-06-25
- REACH Information obligation: Yes
