AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

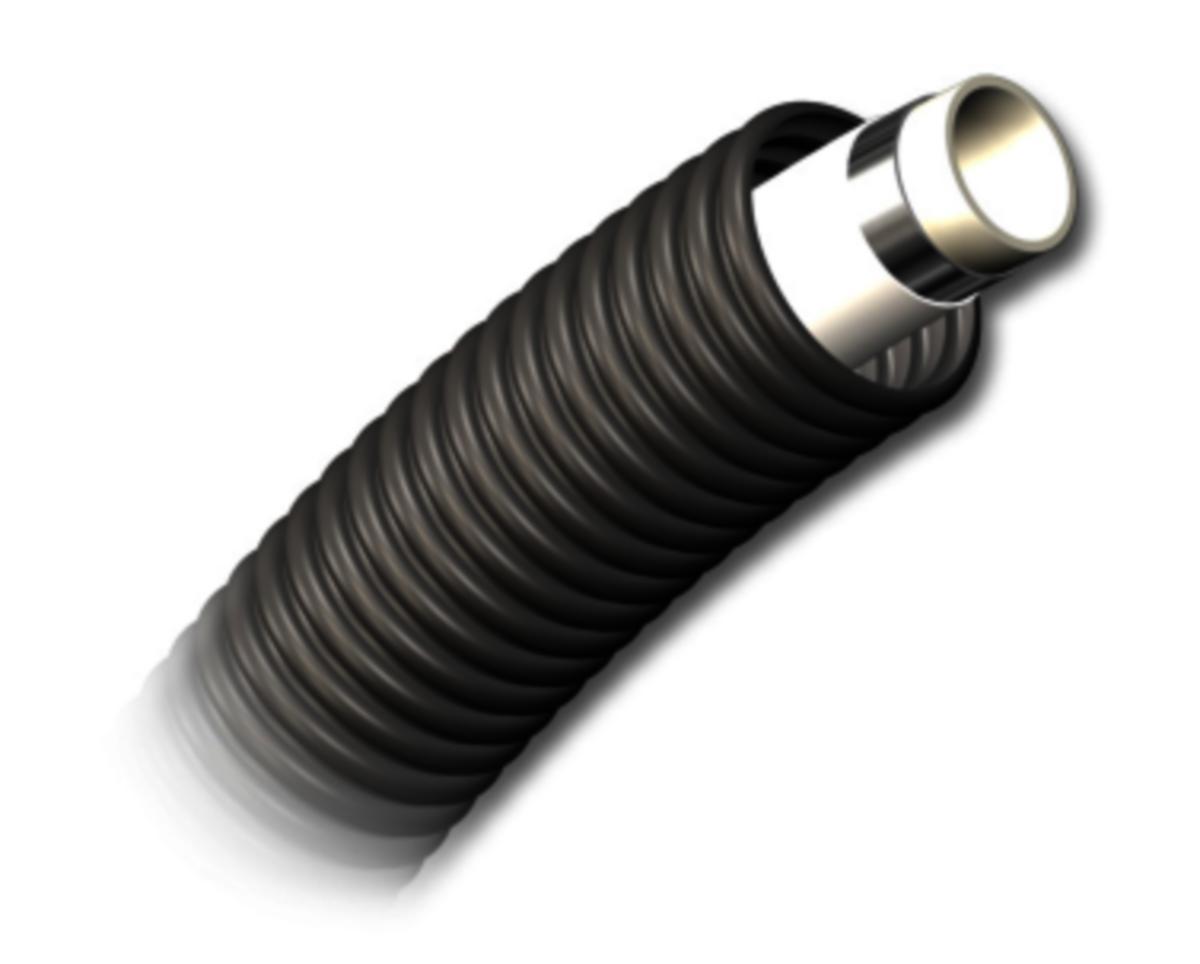

PAL Universal Pipe A with Conduit (RiR), LK
UNIVERSAL PIPE PIP A32/50M LK SYSTEMS, (PRICE PER UNIT)
Article number: Suppl. article no:
1878238
1878238
to see price and stock
Pipes fitted in empty pipe of black HD polyethylene. Supplied in roll, in carton package.
- Article number: 1878238
- Suppl. article no: 1878238
- Ean no: 7331590030553
- Material class PAM110
Technical data
- Packagin Size: 1 ST/3 ST
- Outer pipe diameter: 32 mm
- Wall thickness: 3 mm
- Outer diameter mantle pipe: 42 mm
- Number of layers: 5
- Length: 50 m
- Quality class inner layer: PE-RT II
- Max. operating pressure at 20 °C: 10 bar
- Material inner layer: Plastic
- Material intermediate layer: Aluminium
- Material outer layer: Plastic
- With mantle pipe: Yes
- With thermal insulation: No
- Quality class intermediate layer: Other
- Min. bending radius: 128 mm
- Pipe colour: White
- System specific: Yes
- Expansion coefficient: 30 mm/(m·K)
- Wall roughness: 0.0005 mm
- Quality class outer layer: PE-RT II
- Diffusion-proof: Yes
- Flexible: Yes
- Medium temperature (continuous): -20-70 °C
- DVGW quality mark for gas: No
- Colour outer sheath: Black
- Glass-fibre reinforced: No
- Suitable for surface mounting: Yes
- Max. medium temperature (momentarily): 95 °C
- Capped: No
- REACH Date: 2025-06-25
- REACH Information obligation: No
