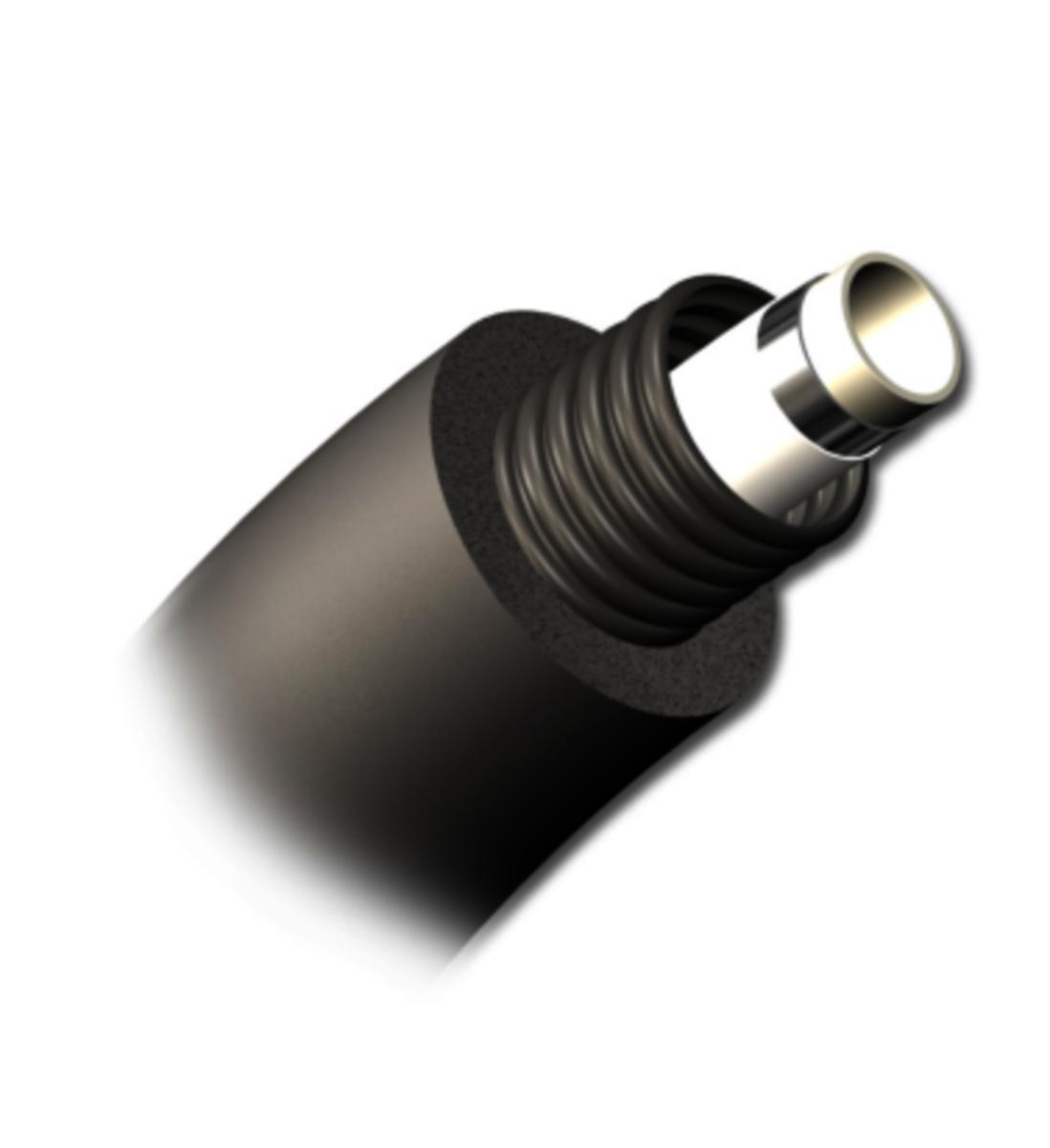

PAL Universal Pipe with Extra Insulated Conduit, RiR Extra, LK
UNIVERSAL PIP EXTRA A32/ 25M LK SYSTEMS, (PRICE PER UNIT)
Article number: Suppl. article no:
1877954
1877954
to see price and stock
Supplied installed in empty pipes of HDPE, equipped with surface-mounted polyethylene insulation.
Supplied in roll, in carton package.
Supplied in roll, in carton package.
- Article number: 1877954
- Suppl. article no: 1877954
- Ean no: 7331590022268
- Material class PAM111
Technical data
- Packagin Size: 1 ST/2 ST
- Outer pipe diameter: 32 mm
- Wall thickness: 3 mm
- Outer diameter mantle pipe: 42 mm
- Number of layers: 5
- Length: 25 m
- Thickness of thermal insulation: 10 mm
- Quality class inner layer: PE-RT II
- Max. operating pressure at 20 °C: 10 bar
- Material inner layer: Plastic
- Material intermediate layer: Aluminium
- Colour of thermal insulation: Other
- Material outer layer: Plastic
- With mantle pipe: Yes
- With thermal insulation: Yes
- Quality class intermediate layer: Other
- Min. bending radius: 128 mm
- Pipe colour: White
- System specific: Yes
- Expansion coefficient: 30 mm/(m·K)
- Wall roughness: 0.0005 mm
- Quality class outer layer: PE-RT II
- Diffusion-proof: Yes
- Flexible: Yes
- Medium temperature (continuous): -20-70 °C
- DVGW quality mark for gas: No
- Colour outer sheath: Black
- Glass-fibre reinforced: No
- Suitable for surface mounting: Yes
- Max. medium temperature (momentarily): 95 °C
- With heating cable: No
- Capped: No
- REACH Date: 2022-01-17
- GWP-tot (A1-A3): 104,8560 kgCO2e/ST
- REACH Information obligation: No
