Distribute UNI-25-c / c 100, LK

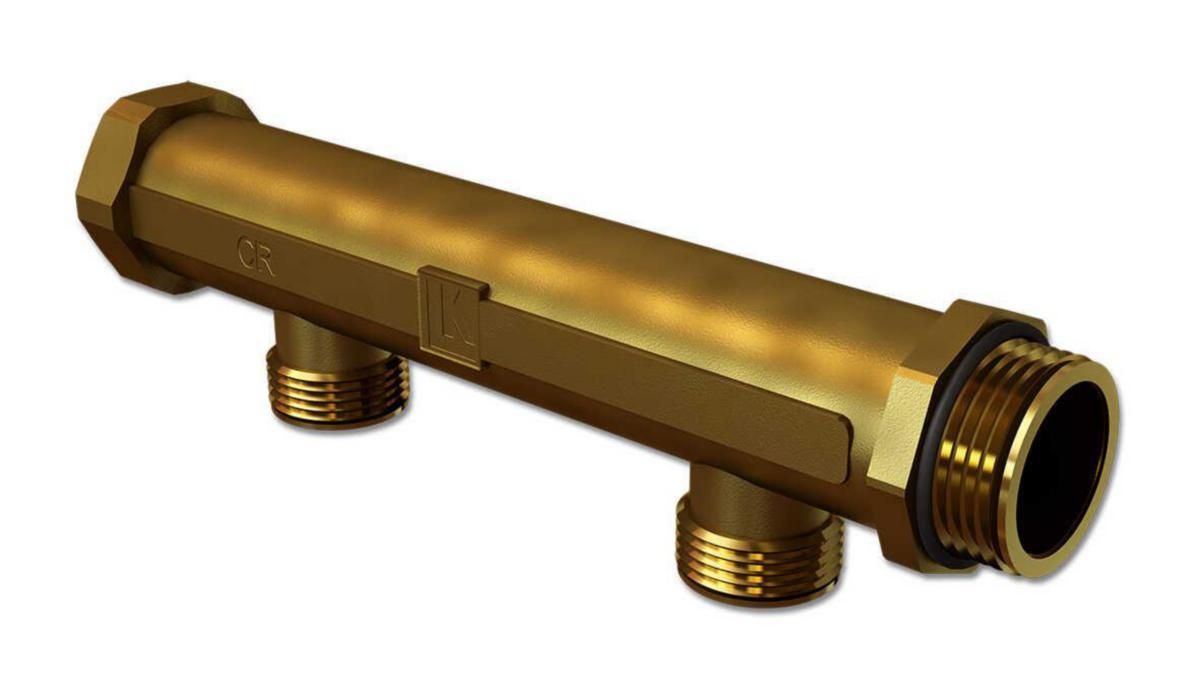

MANIFOLD UNI25-2-C/C 100 1"/¾"
Article number: Suppl. article no:
1875891
1875891
to see price and stock
Intended for the distribution of larger flows and where large space is required between outbound pipes, e.g. for room for a water and heat quantity meter. The manifold has a connection G25 (ext and int thread) for supply pipe and connection G20 c/c 100 mm ext. thread on branch. Made of dezincification-resistant brass.
- Article number: 1875891
- Suppl. article no: 1875891
- Ean no: 7331590016717
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1 inch (25)
- Nominal diameter branches: 3/4 inch (20)
- Number of branches: 2
- Number of branching directions: 1
- Distance between offset: 100 mm
- Length distributor: 200 mm
- Material: Brass
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Deviant distance between branches: No
- Connection branches: External thread cylindrical BSPP-G (ISO 228-1)
- Material quality: Other
- Article compression class: PN 10
- Mounting method: Surface mounting
- Suitable for cooling water: Yes
- Suitable for tap water: Yes
- Suitable for central heating water: Yes
- Shape: Throughflow with straight branches
- Distributor working length: 200 mm
- Suitable for glycol: Yes
- Suitable for compressed air: Yes
- With de-aeration: No
- With shut-off valve: Yes
- With legs: No
- With insulation: No
- With mounting material: No
- With wall-mounting bracket: No
- System specific: No
- Surface protection: Nickel-plated
- Max. medium temperature (continuous): 70 °C
- With fill- and drain valve: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 1,5043 kgCO2e/ST
- REACH Information obligation: Yes
