AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

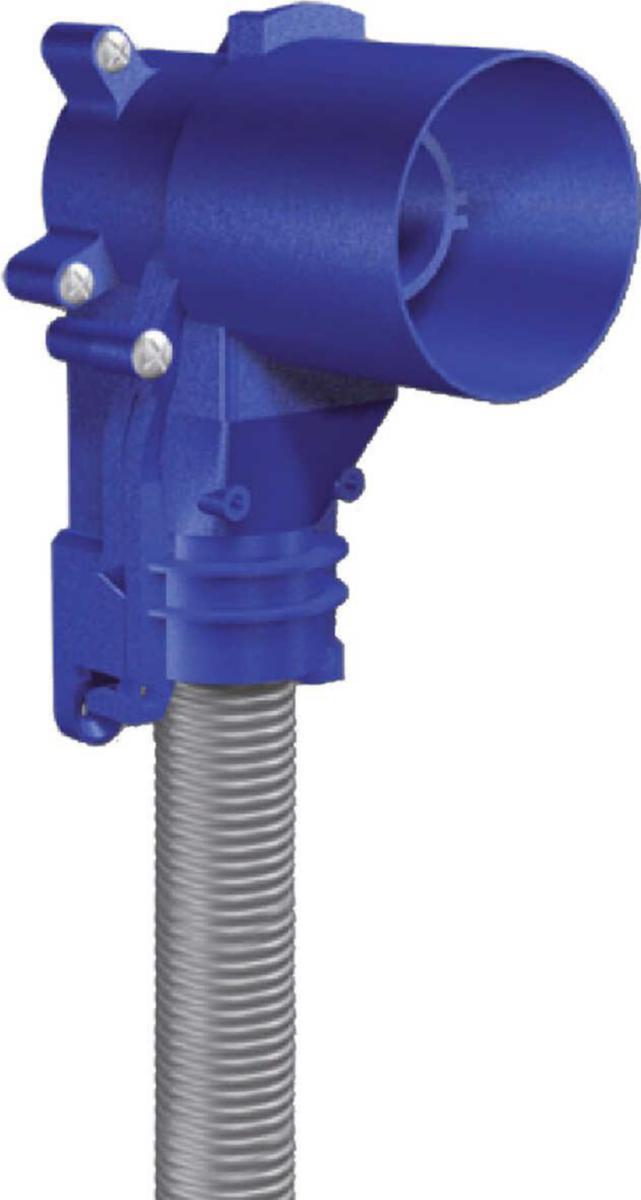

Wall box Uni 20, single, LK
ANGLE WALL BOX 20 LK SYSTEMS
Article number: Suppl. article no:
1874385
1874385
to see price and stock
Coupling type G15.
- Article number: 1874385
- Suppl. article no: 1874385
- Ean no: 7331590008255
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/40 ST
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Housing material: Acrylonitrile butadiene styrene (ABS)
- Outer diameter mantle pipe: 34 mm
- Connection 1: Compression ring
- Suitable for concrete installation: No
- Suitable for stud wall: Yes
- With coupling: Yes
- With mounting plate: No
- System specific: Yes
- Material coupling: Brass
- Material quality coupling: Dezincification resistant brass (DZR)
- REACH contains candidate substances: Bly
- REACH Date: 2025-06-25
- REACH Information obligation: Yes
