AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

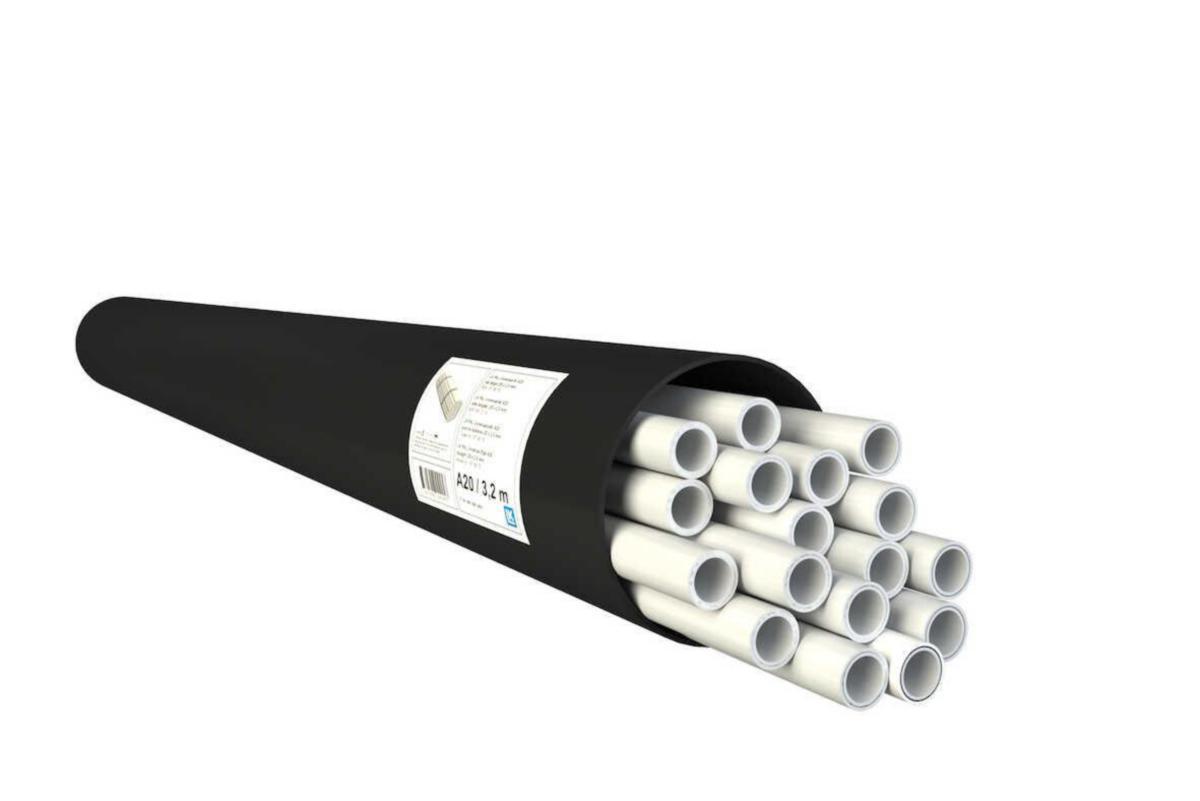

PAL Universal Pipe A, Straight Lengths, LK
UNIVERSAL PIPE A32X3.0/3.2 M LK SYSTEMS, (PRICE PER UNIT)
Article number: Suppl. article no:
1872639
1872639
to see price and stock
Supplied in tubular paper packages. The pipes are normally supplied in complete packages with the quantity/package as below. Packaging costs are added for opened packages.
- Article number: 1872639
- Suppl. article no: 1872639
- Ean no: 7331590019909
- Material class PAM111
Technical data
- Packagin Size: 1 ST/7 ST/231 ST
- Outer pipe diameter: 32 mm
- Wall thickness: 3.0 mm
- Number of layers: 5
- Length: 3.2 m
- Quality class inner layer: PE-RT II
- Max. operating pressure at 20 °C: 10 bar
- Material inner layer: Plastic
- Material intermediate layer: Aluminium
- Material outer layer: Plastic
- With mantle pipe: No
- With thermal insulation: No
- Quality class intermediate layer: Other
- Min. bending radius: 128 mm
- Pipe colour: White
- System specific: Yes
- Expansion coefficient: 30 mm/(m·K)
- Wall roughness: 0.0005 mm
- Quality class outer layer: PE-RT II
- Diffusion-proof: Yes
- Flexible: Yes
- Medium temperature (continuous): -20-70 °C
- DVGW quality mark for gas: No
- Glass-fibre reinforced: No
- Suitable for surface mounting: Yes
- Max. medium temperature (momentarily): 95 °C
- Capped: No
- REACH Date: 2022-01-17
- GWP-tot (A1-A3): 2,9547 kgCO2e/ST
- REACH Information obligation: No
