AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK
Distributor UNI, LK

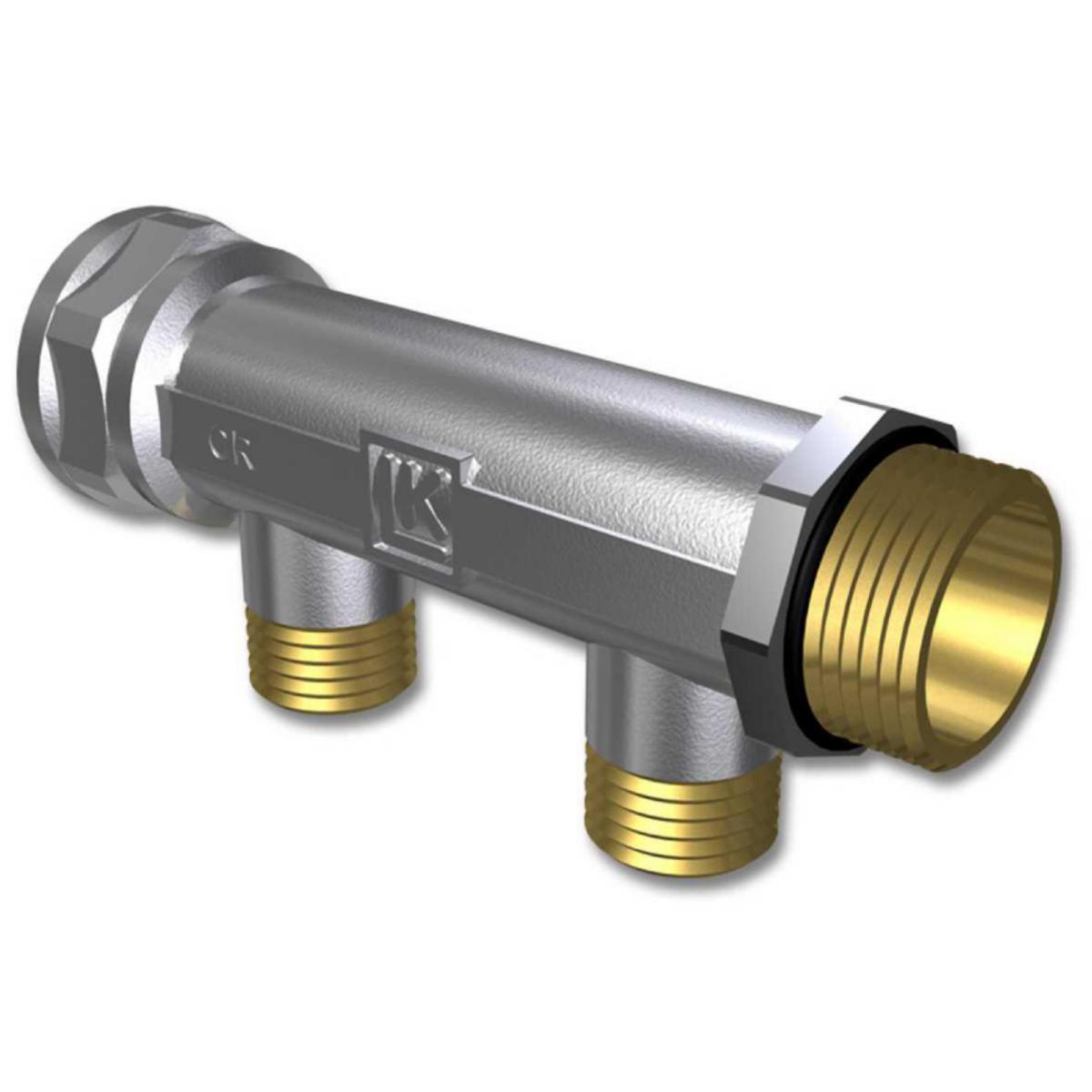

MANIFOLD UNI 2-3/4" 2-G20
Article number: Suppl. article no:
1870689
1870689
to see price and stock
Extendable manifold for heat and tap water systems. Made of dezincification-resistant brass, nickel-plated.
- Article number: 1870689
- Suppl. article no: 1870689
- Ean no: 7331590022442
- Material class PAM12A
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Nominal diameter branches: 3/4 inch (20)
- Number of branches: 2
- Number of branching directions: 1
- Distance between offset: 50 mm
- Length distributor: 110 mm
- Material: Brass
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Deviant distance between branches: No
- Connection branches: External thread cylindrical BSPP-G (ISO 228-1)
- Material quality: Other
- Article compression class: PN 10
- Mounting method: Surface mounting
- Suitable for cooling water: Yes
- Suitable for tap water: Yes
- Suitable for central heating water: Yes
- Shape: Throughflow with straight branches
- Suitable for glycol: Yes
- Suitable for compressed air: Yes
- With de-aeration: No
- With shut-off valve: No
- With legs: No
- With insulation: No
- With mounting material: No
- With wall-mounting bracket: No
- System specific: No
- Surface protection: Nickel-plated
- Max. medium temperature (continuous): 70 °C
- With fill- and drain valve: No
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
