LK
Radiator Coupling, LK

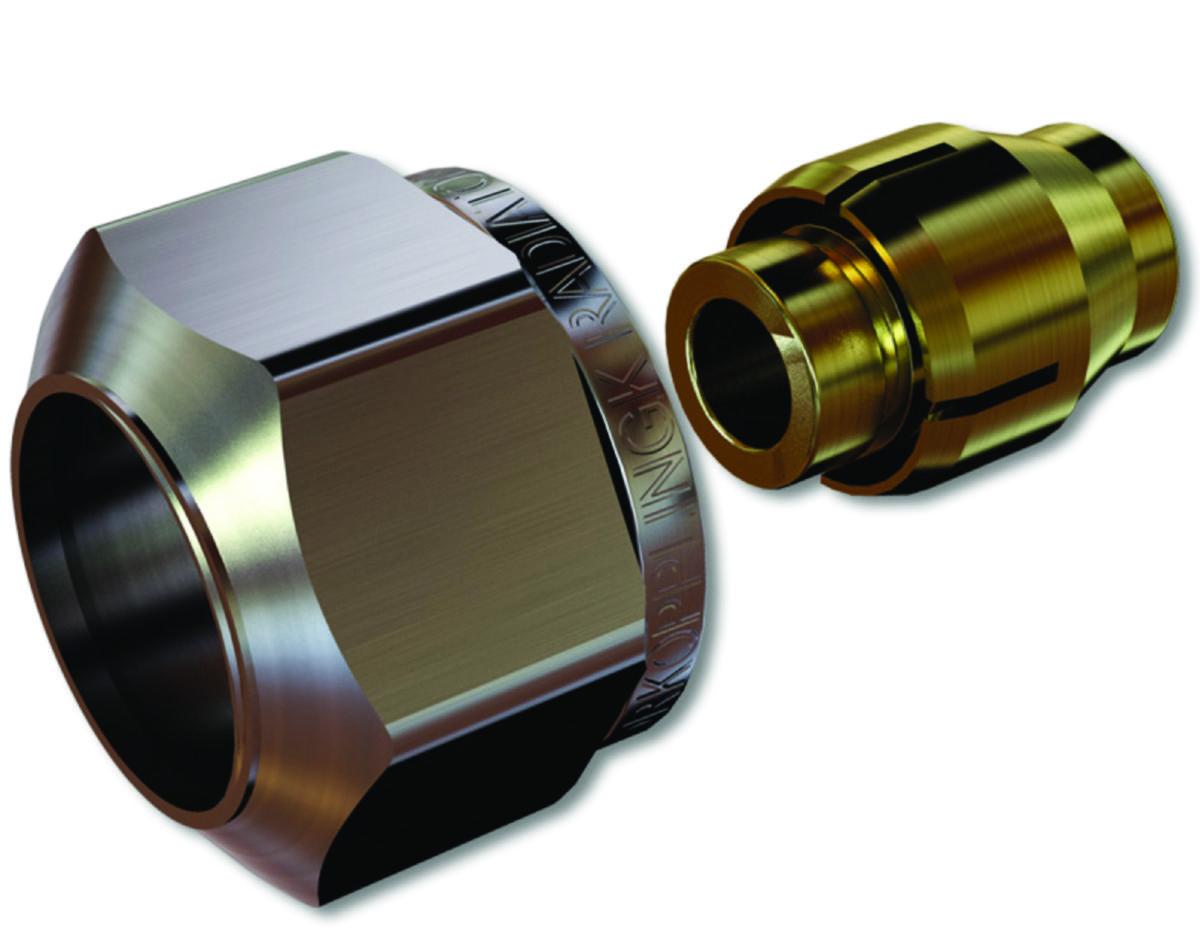

RADIATOR ADAPTER M22X16 LK SYSTEMS
Article number: Suppl. article no:
1870646
1870646
to see price and stock
Connection coupling for LK PE-X and PAL Universal pipes to radiator coupling M22.
- Article number: 1870646
- Suppl. article no: 1870646
- Ean no: 7331590024767
- Material class PAM120
Technical data
- Packagin Size: 1 ST/6 ST/300 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: M22 x 1.5
- Outer pipe diameter connection 1: 16 mm
- Connection 1: Compression ring
- Connection 2: Internal thread metric
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- KIWA certified: Yes
- Medium temperature (continuous): 0-70 °C
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Nickel-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 3-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Brass
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- Type approval according to BBR/EKS: No
- Suitable for wall thickness: 2 mm
- Outer pipe diameter: 16 mm
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- Material quality: Dezincification resistant brass (DZR)
- Thread size nut: M22
- With gasket: Yes
- REACH Information obligation: Yes
- Material union nut: Brass
- Suitable for plastic tube: Yes
- With thrust bushing: Yes
- Surface protection union nut: Nickel-plated
- Suitable for plastic multi-layer pipes: Yes
- Thread connection: Internal thread
- Material compression ring: Brass
- Material quality union nut: Dezincification resistant brass (DZR)
