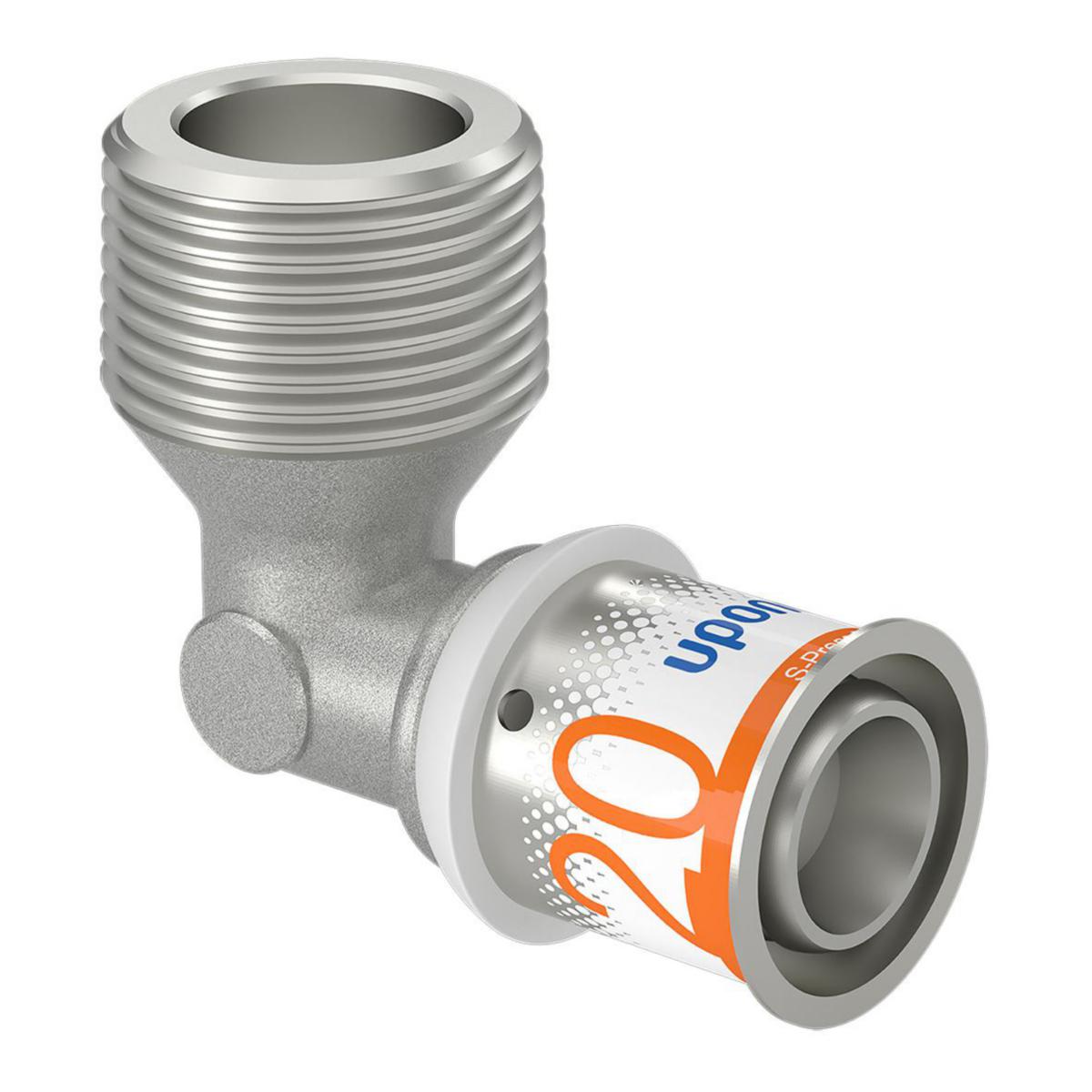

Angle transition, S-Press PLUS ext. thread, Uponor
S-PRESS PLUS ELBOW MALE THREAD 20-R3/4"MT
Article number: Suppl. article no:
1896536
1070534
to see price and stock
Press angle, tinned dezincification resistant brass with stainless steel press sleeve. The couplings have a press stop, press and color dimension indication. The couplings do not require deburring of the pipe before the coupling is put on the pipe. Thread according to SS-EN10226-1
- Article number: 1896536
- Suppl. article no: 1070534
- Ean no: 6414905218547
- Replaces art.nbr: 1873367
- Material class PAL14B
Technical data
- Packagin Size: 1 PCS/10 PCS/80 PCS
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 3/4 inch (20)
- Bend angle: 90 °
- Max. operating pressure at 20 °C: 10 bar
- Medium temperature (continuous): 0-70 °C
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,4486 kgCO2e/ST
- REACH Date: 2024-06-27
- REACH Information obligation: Yes
