Neoperl

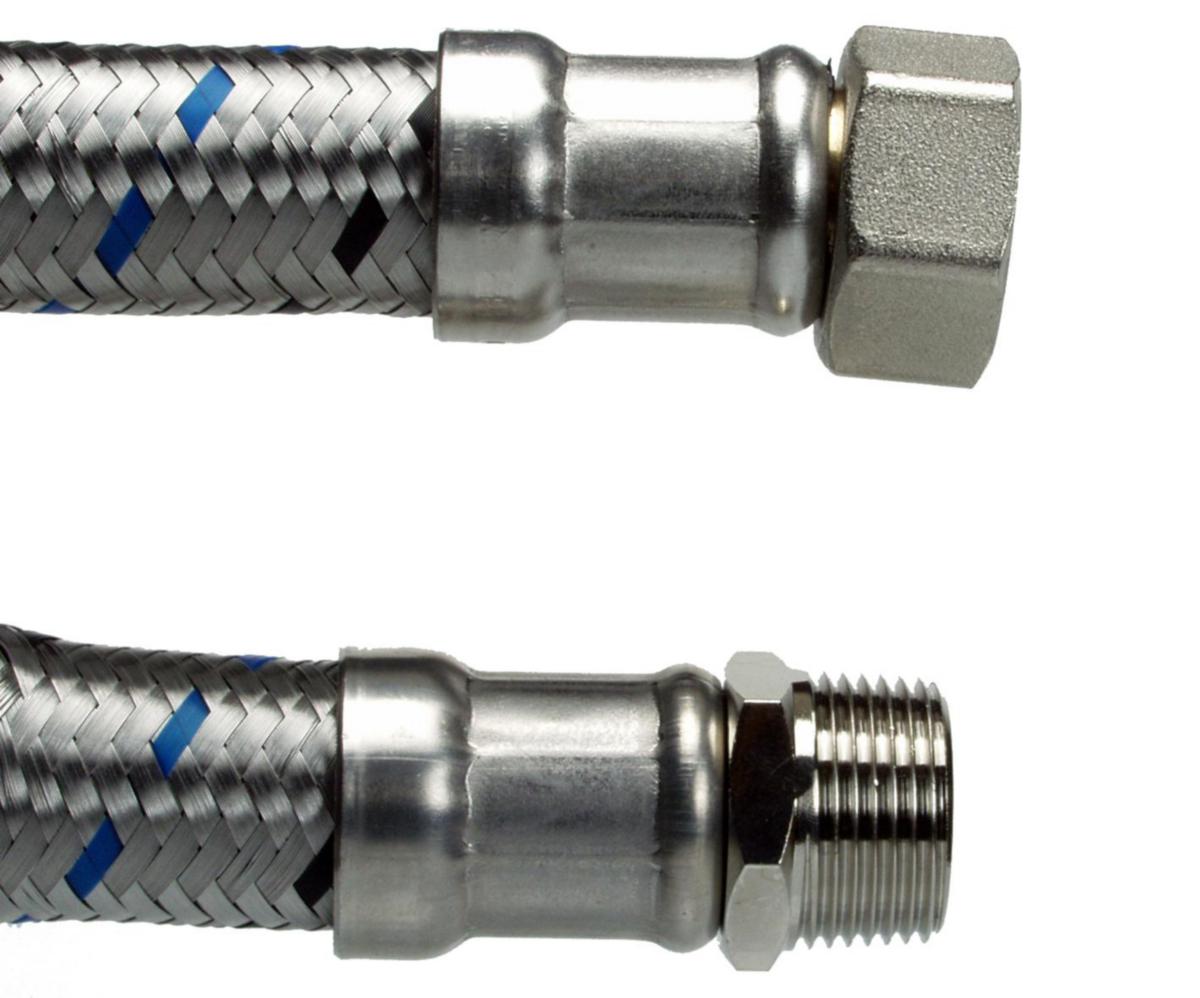

Diffusion-tight hose stainless steel braiding with threaded connections, a-collection
NEOFLEX BUTYL HOSE DN20 0,4 M MALE/FEMALE,STRAIGHT SWIV.NUT
Article number: Suppl. article no:
8192589
36560304001
to see price and stock
Butyl inner hose, stainless steel sleeves, brass couplings. Max operating pressure at 90gr 10 bar, at 20gr , 25 bar. For connection of cooling & heating systems as well as cold & hot water for technical use, etc.
Straight, int.pipe thread/ext. pipe thread with 1 swivel nut.
Straight, int.pipe thread/ext. pipe thread with 1 swivel nut.
- Article number: 8192589
- Suppl. article no: 36560304001
- Ean no: 5708550103244
- Material class PCP02B
Technical data
- Packagin Size: 1 ST/50 ST
- Connection 1: Internal thread
- Connection 2: External thread
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Outer pipe diameter connection 1: 20 mm
- Outer pipe diameter connection 2: 20 mm
- Length: 400 mm
- Max. medium temperature (continuous): 100 °C
- REACH contains candidate substances: Bly
- REACH Date: 2024-05-17
- Material: Butyl
- REACH Information obligation: Yes
