Diffusion-tight hose stainless steel braiding with smooth end for clamp or press fitting, a-collection

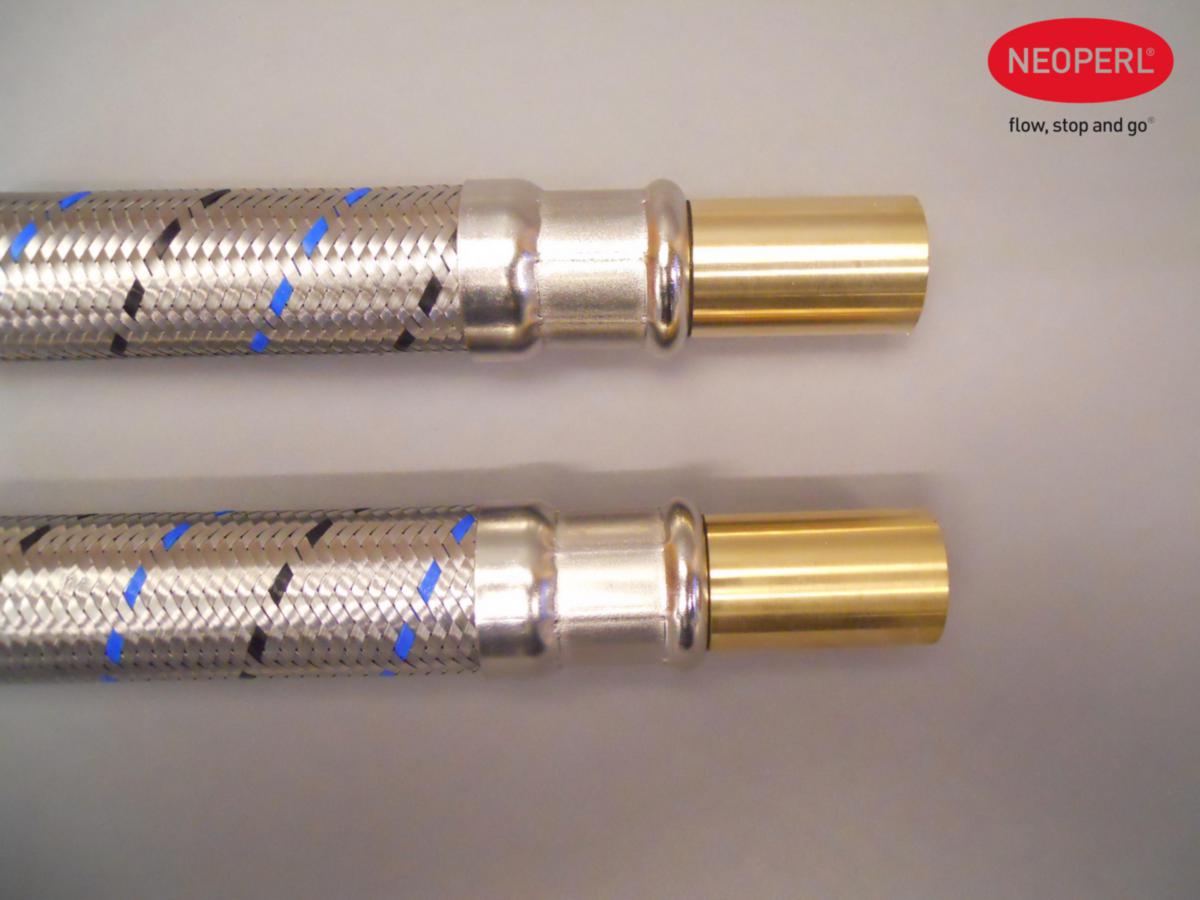

NEOFLEX BUTYL HOSE DN13 0,4 M 15MMX15MM STRAIGHT SMOOTH END
Article number: Suppl. article no:
8192560
36558904001
to see price and stock
Butyl inner hose, stainless steel sleeves, brass couplings. Max operating pressure at 90gr 10 bar, at 20gr , 25 bar. For connection of cooling & heating systems as well as cold & hot water for technical use, etc.
Smooth end.
Smooth end.
- Article number: 8192560
- Suppl. article no: 36558904001
- Ean no: 5708550106603
- Replaces art.nbr: 8190140
- Material class PCP02A
Technical data
- Packagin Size: 1 ST/50 ST
- Connection 1: Tube end
- Connection 2: Tube end
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Length: 400 mm
- Max. medium temperature (continuous): 100 °C
- Max. pressure: 10 bar
- Suitable for water: Yes
- Suitable for oil: No
- REACH contains candidate substances: Bly
- REACH Date: 2024-05-17
- REACH Information obligation: Yes
