Vatette

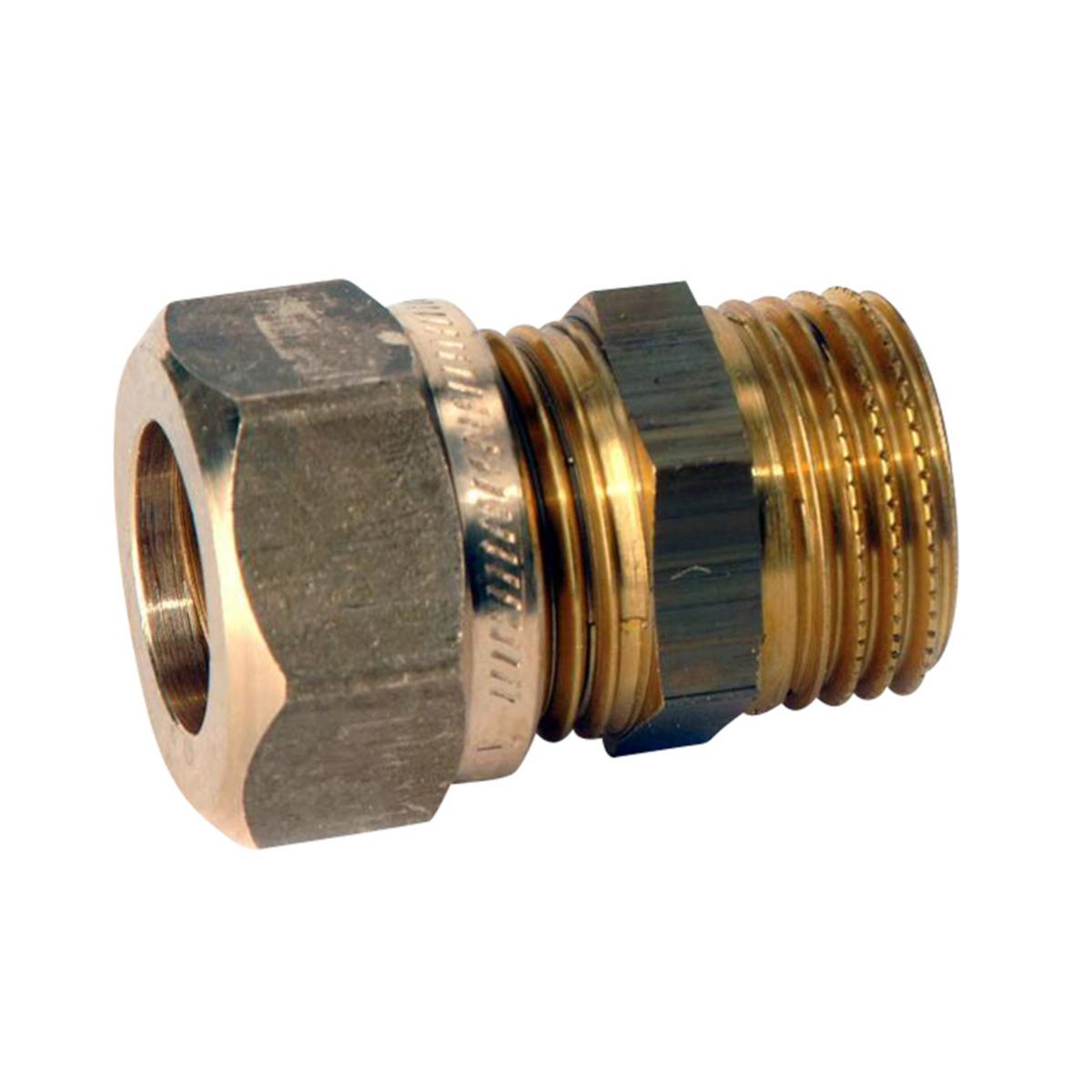

Straight coupling VA 1136, Vatette
VATETTE STRAIGHT COUPLING MALE 54XG40, YELLOW
Article number: Suppl. article no:
1962350
FG0322439
to see price and stock
For copper, steel and PEX pipes. Support sockets must be used for soft and semi-hard copper and steel pipes and PEX pipes. G=cylindrical pipe thread. Smooth end x external thread.
- Article number: 1962350
- Suppl. article no: FG0322439
- Ean no: 7391530090818
- Material class PAD10A
Technical data
- Outer pipe diameter connection 1: 54 mm
- Connection 1: Compression ring
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 2: 1 1/2 inch (40)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): -50-120 °C
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 6,9146 kgCO2e/ST
- REACH Date: 2025-04-07
- REACH Information obligation: Yes
