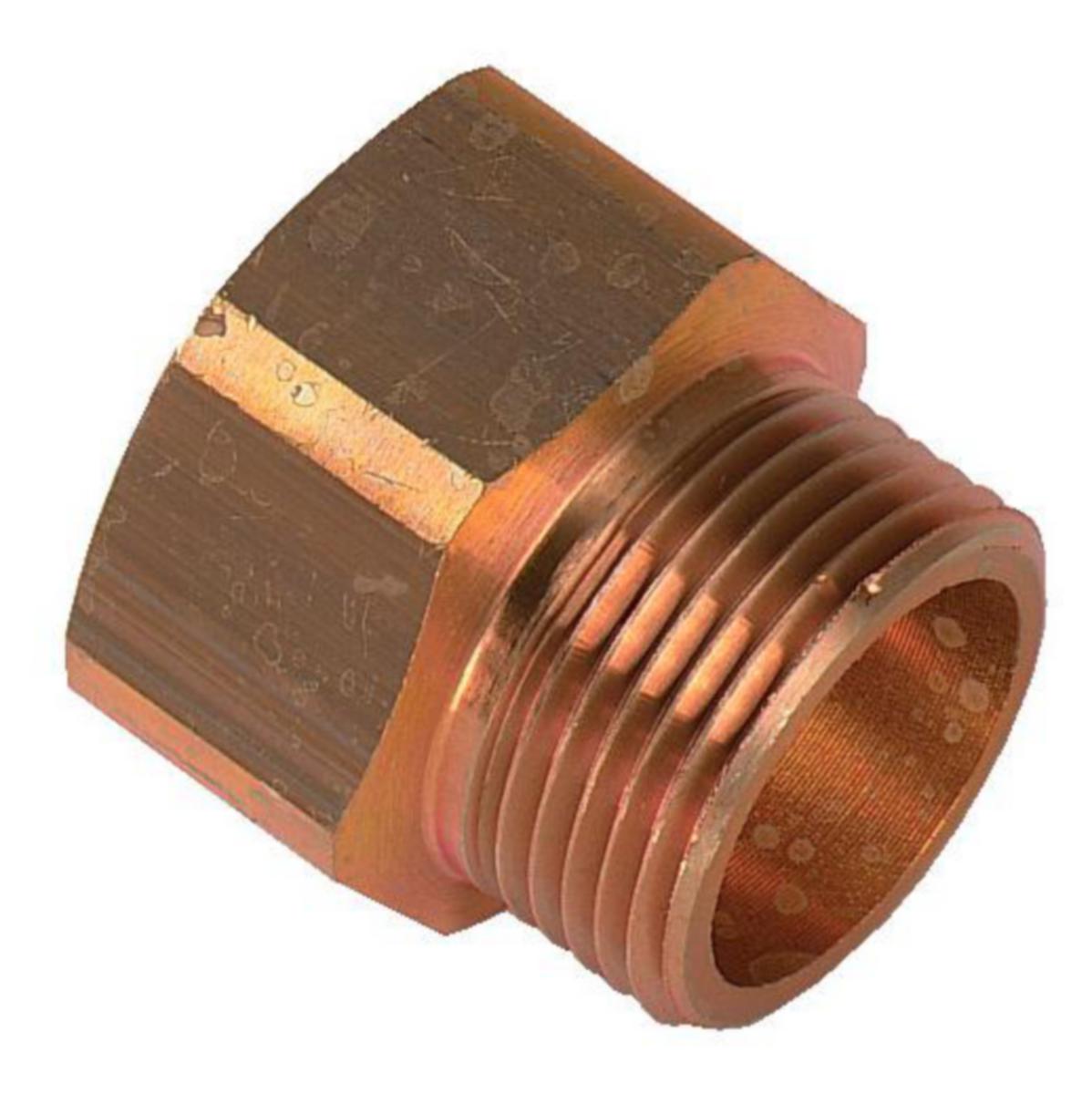

Transition nipple VA 1250, Vatette
22xG20 TRANSITION NIPPLE VATETTE 1250
Article number: Suppl. article no:
1946326
FG0600852
to see price and stock
For copper, steel and PEX pipes. Support sockets must be used for soft and semi-hard copper and steel pipes and PEX pipes. G=cylindrical pipe thread. Special thread x external thread. The dimensions apply to couplings intended for pipes dy/mm.
- Article number: 1946326
- Suppl. article no: FG0600852
- Ean no: 7393792100106
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread metric
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: M28 x 1.5
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Max. medium temperature (continuous): 120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Colour: Yellow
- REACH Information obligation: Yes
