Vatette

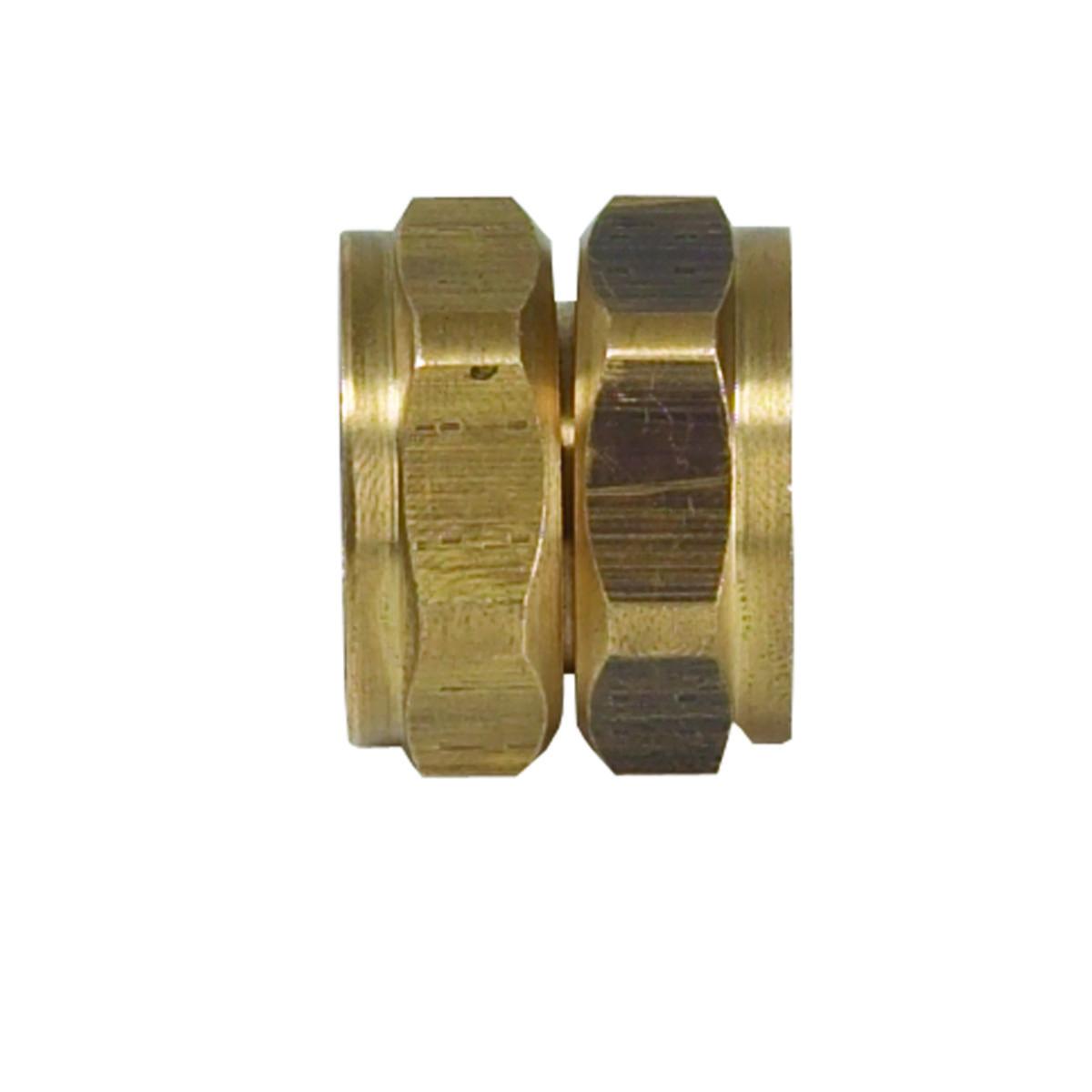

Double nut V6 yellow, Vatette
VATETTE DOUBLE NUT V6 22 DY22xDY22
Article number: Suppl. article no:
1946088
FG0398071
to see price and stock
For connection to Vatette-end Dy15
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
- Article number: 1946088
- Suppl. article no: FG0398071
- Ean no: 7393792101233
- Material class PAP101
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: Other
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Connection 1: Internal thread metric
- Connection 2: Internal thread metric
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- Medium temperature (continuous): 0-100 °C
- Flange compression class: PN 16
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Material connection 1: Brass
- Material connection 2: Brass
- Bend angle: 0 °
- Wrench width union nut: 32 mm
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Colour: Chrome-plated
- REACH Information obligation: Yes
