Vatette

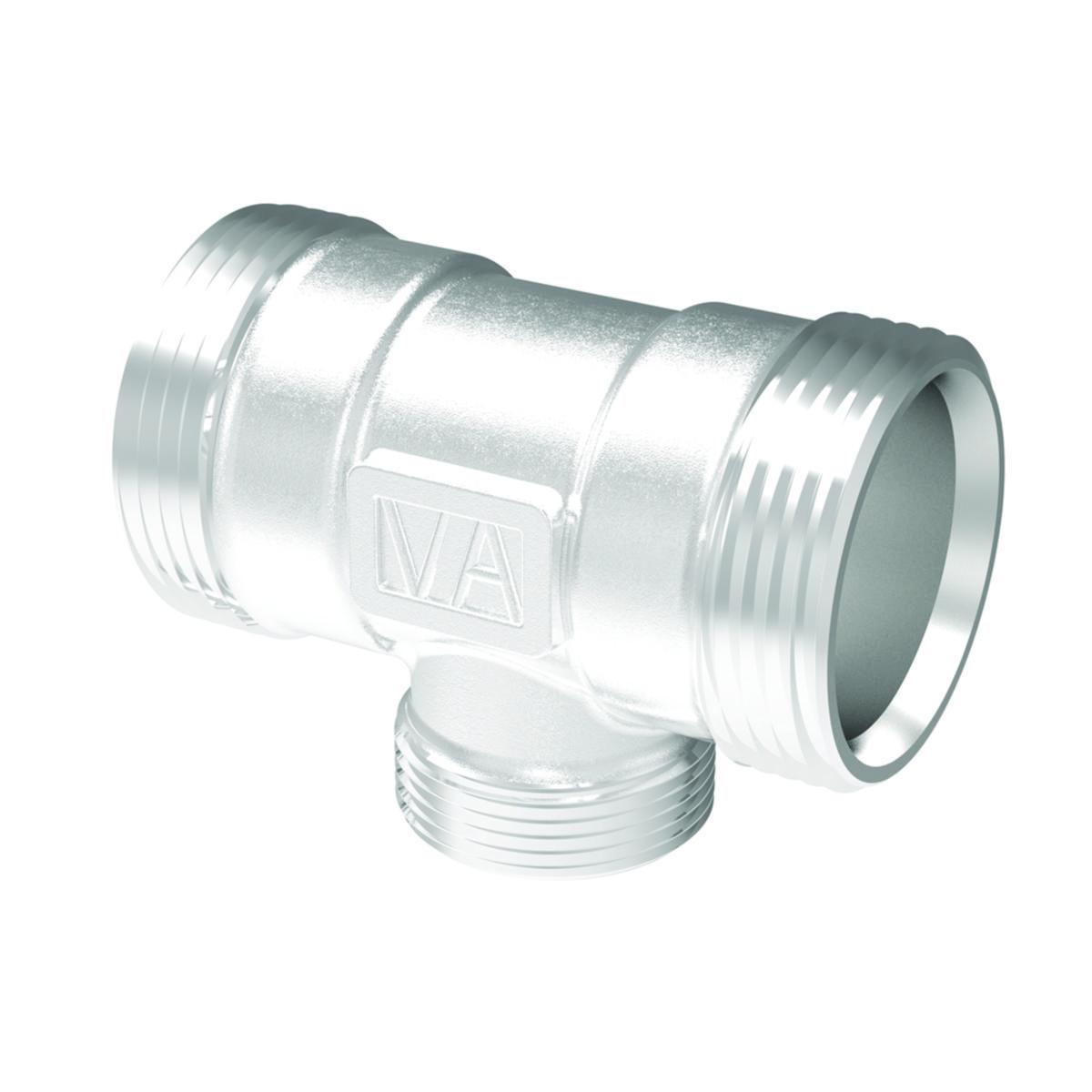

T-connector screw part V6 chrome, Vatette
VATETTE FITTINGV6 T-PIPE Cr Ø22XØ15XØ22
Article number: Suppl. article no:
1970172
FG060365620
to see price and stock
Build a custom wall distributor with Vatette screw parts, double nuts and ball valves.
Use products marked V6 and get 60 cc automatically
With Vatette ends.
Use products marked V6 and get 60 cc automatically
With Vatette ends.
- Article number: 1970172
- Suppl. article no: FG060365620
- Ean no: 7393792106719
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/25 ST/1375 ST/5500 ST
- Connection 1: External thread metric
- Connection 2: External thread metric
- Connection 3: External thread metric
- Nominal diameter connection 2: M24 x 1.5
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 22 mm
- Multi-part: Yes
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 3: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- With buffer stud: Yes
- Model: T-piece
- Nominal diameter connection 1: M24 x 1.5
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface treatment connection 3: Untreated
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface protection connection 3: Chromium-plated
- Nominal diameter connection 3: 1/2 inch (15)
- Max. medium temperature (continuous): 120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Min. medium temperature (continuous): -50 °C
- REACH Information obligation: Yes
