Vatette

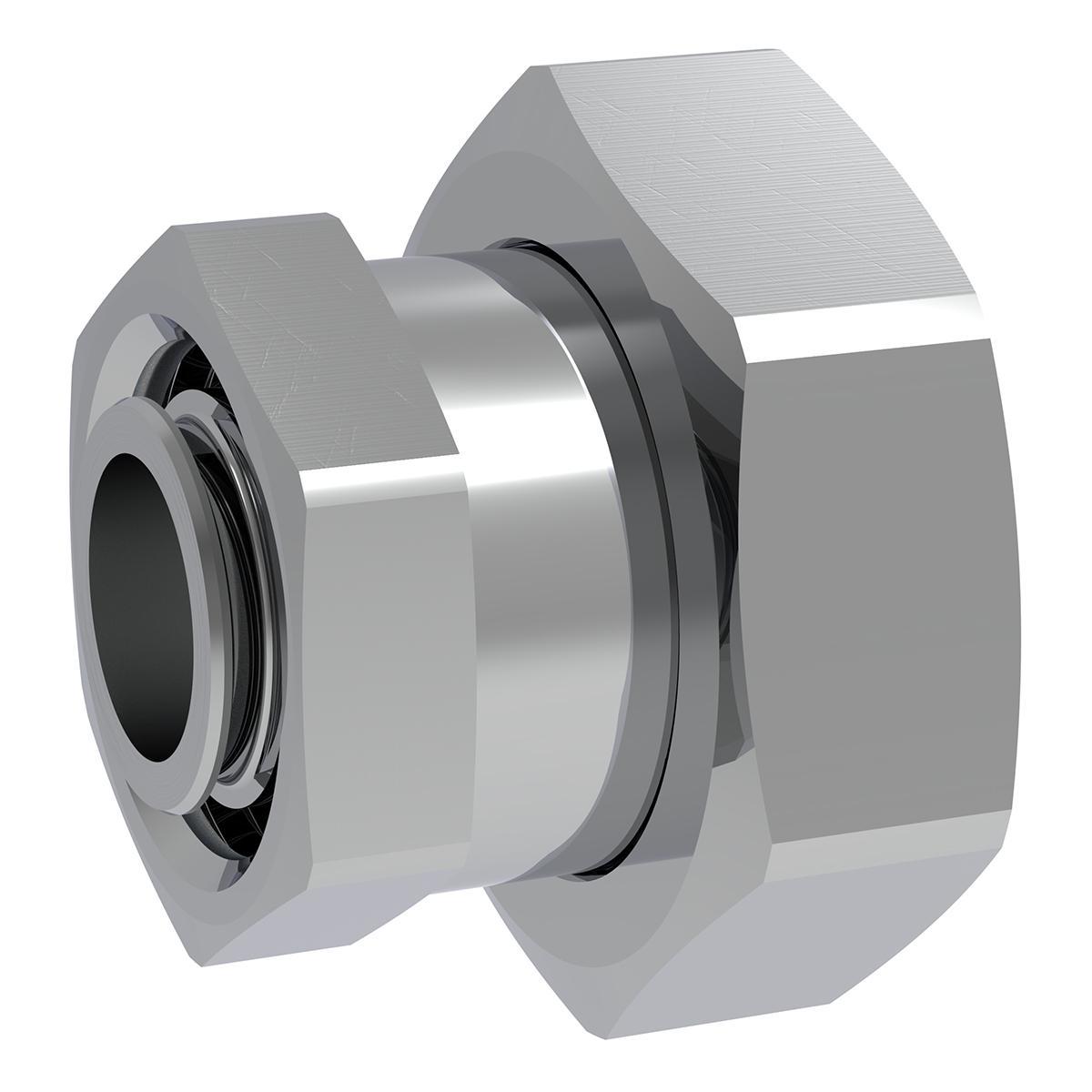

Double nut chromium, Vatette
Double nut 22x G 1/2
Article number: Suppl. article no:
1962344
FG039808420
to see price and stock
For connecting two Vatette screw parts.
- Article number: 1962344
- Suppl. article no: FG039808420
- Ean no: 7391530087719
- Material class PAP100
Technical data
- Packagin Size: 1 PCS/50 PCS/1600 PCS
- Nominal diameter connection 1: M28 x 1.5
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Union nut
- Connection 2: Union nut
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- Medium temperature (continuous): 0-100 °C
- Flange compression class: PN 16
- Max. operating pressure at 20 °C: 10 bar
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Material connection 1: Brass
- Material connection 2: Brass
- Bend angle: 0 °
- REACH Date: 2024-10-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
