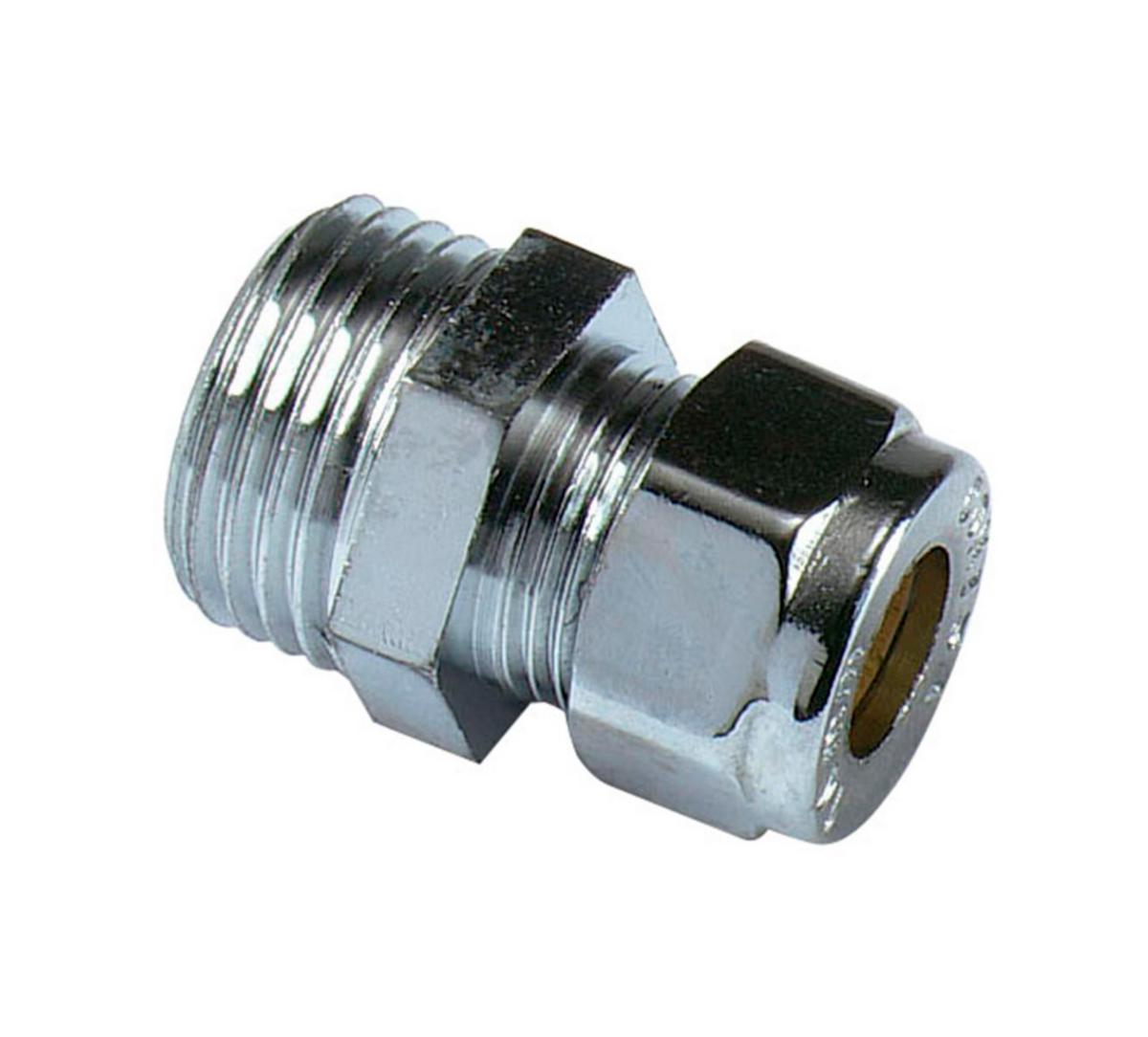

Straight Coupling A 902, chrome-plated, a-collection
10xR15 COMPRESSION FITTING CU x MALE,CROME STRAIGHT A-COLL.
Article number: Suppl. article no:
1926222
A43.15
to see price and stock
For more information, please read our brochure order no. BRR7705
For copper and PEX pipes. For certain soft, thin-walled copper and PEX pipes, support sockets must be used. G=cylindrical pipe thread.
Smooth end x external thread. Type-approved: Swedish certified 0164.
For copper and PEX pipes. For certain soft, thin-walled copper and PEX pipes, support sockets must be used. G=cylindrical pipe thread.
Smooth end x external thread. Type-approved: Swedish certified 0164.
- Article number: 1926222
- Suppl. article no: A43.15
- Ean no: 7333123927156
- Material class PAD01B
- This is an alternative to item 1851943
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 10 mm
- Connection 1: Compression ring
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 0 °
- FM quality mark: No
- Shape: Straight
- Reducing: No
- LPCB quality mark: No
- With de-aerator: No
- With drain valve: No
- Capped: No
- With buffer stud: No
- System specific: No
- UL quality mark: No
- ULC quality mark: No
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- DIN-CERTCO certificate: No
- High tensile strength: No
- KIWA certified: No
- Medium temperature (continuous): 0-85 °C
- VdS quality mark: No
- Max. medium temperature (continuous): 100 °C
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- Eccentric: No
- KOMO certified: No
- REACH Information obligation: Yes
- With thermal insulation: No
- With connection indicator: No
- Certified according to NF 545: No
