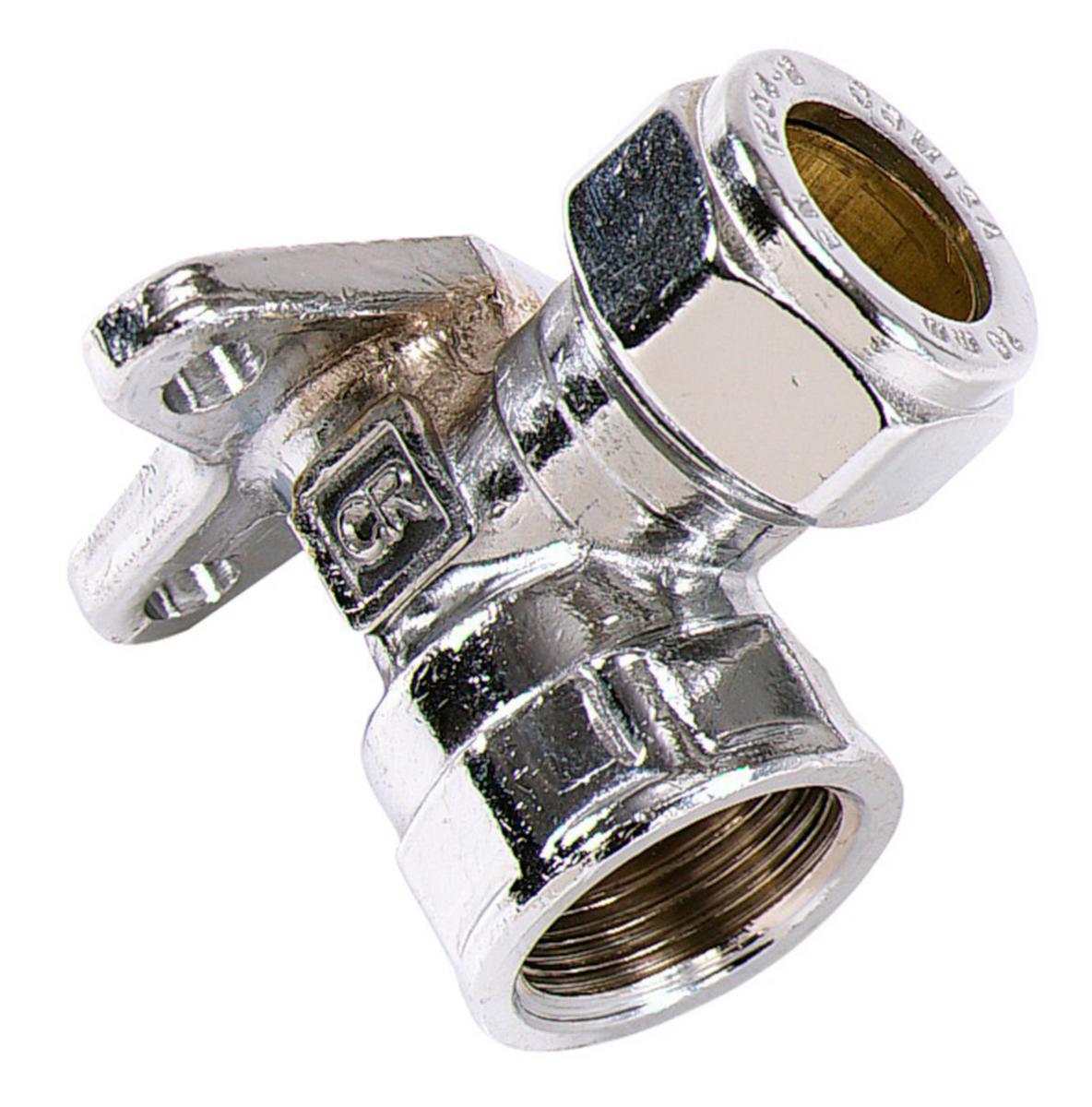

Valve bracket A 803 WP, chrome-plated, a-collection
15xG15 WALLPLATE ELBOW Cu x FEMALE, CROME A-COLLECTION
Article number: Suppl. article no:
1926210
15X1/2 A43.21
to see price and stock
For copper and PEX pipes. For certain soft, thin-walled copper and PEX pipes, support sockets must be used. G=cylindrical pipe thread. Smooth end x internal thread.
Type-approved: Swedish certified 0164.
Type-approved: Swedish certified 0164.
- Article number: 1926210
- Suppl. article no: 15X1/2 A43.21
- Ean no: 7333123927309
- Material class PAD01B
Technical data
- Packagin Size: 1 ST/10 ST
- Connection: Compression ring
- Thread size tap connection: 1/2 inch
- Outer pipe diameter connection: 15 mm
- Shape: Right-angled
- Surface protection: Chromium-plated
- Max. operating pressure at 20 °C: 16 bar
- Material quality: Dezincification resistant brass (DZR)
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: DN 15
- Housing material: Brass
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- Medium temperature (continuous): 0-95 °C
- Colour: Chrome-plated
- REACH Information obligation: Yes
