Oras

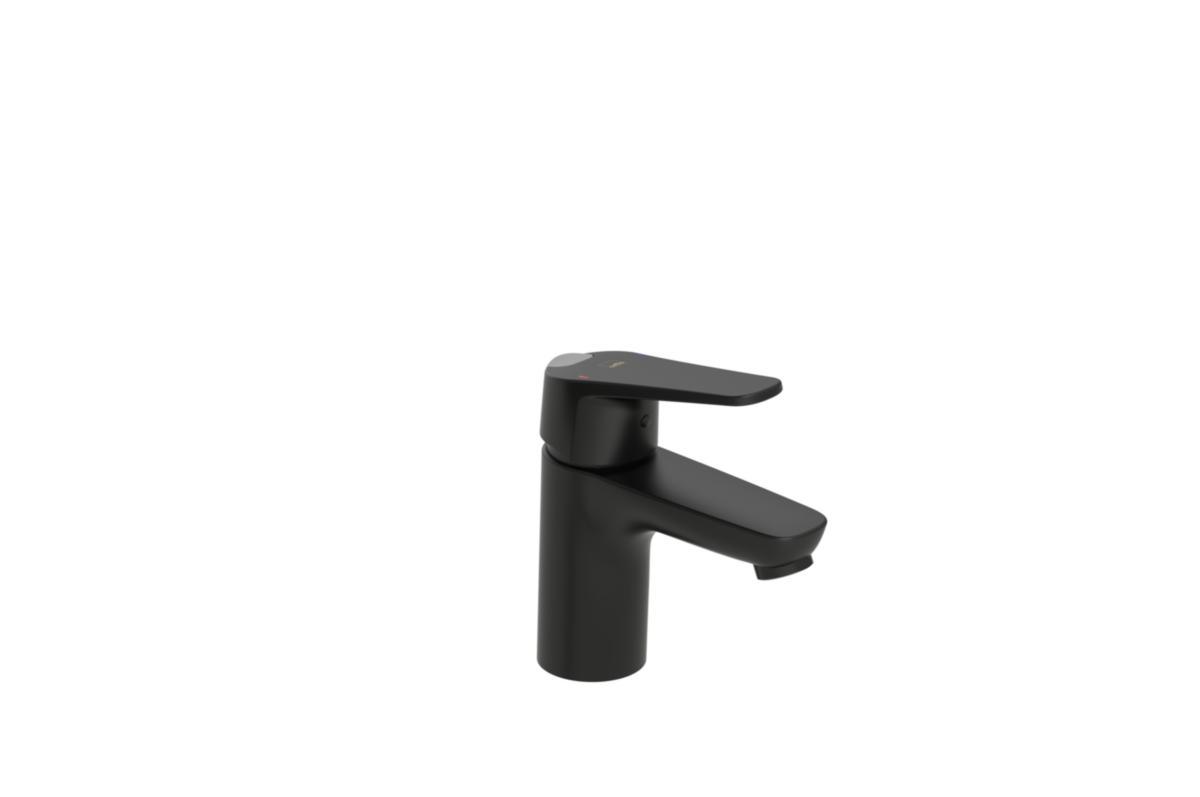

Washbasin mixer 1810FG Matte Black Vega Oras
ORAS VEGA WASHBASIN MIXER MATT BLACK, 1810FG-33
Article number: Suppl. article no:
8278386
1810FG-33
to see price and stock
Black washbasin mixer eco with scald protection, fixed outlet spout and jet collector.
The lever is equipped with an eco button for limiting temperature and flow.
Higher temperature and increased flow are obtained by pressing the eco button at the same time as the lever is raised or turned past the lock position.
Flow 0.11 / 0.18 l / s (eco / standard). Maximum temperature limitation possible. F = flexible connection.
The mixer is equipped with a 3S installation system for quick and easy installation. 4MS approved brass alloy.
The lever is equipped with an eco button for limiting temperature and flow.
Higher temperature and increased flow are obtained by pressing the eco button at the same time as the lever is raised or turned past the lock position.
Flow 0.11 / 0.18 l / s (eco / standard). Maximum temperature limitation possible. F = flexible connection.
The mixer is equipped with a 3S installation system for quick and easy installation. 4MS approved brass alloy.
- Article number: 8278386
- Suppl. article no: 1810FG-33
- Ean no: 6414150097621
- Material class PCK13B
Technical data
- Packagin Size: 1 ST/8 ST
- Basic colour: Black
- Surface treatment: Other
- Surface protection: Coated
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)

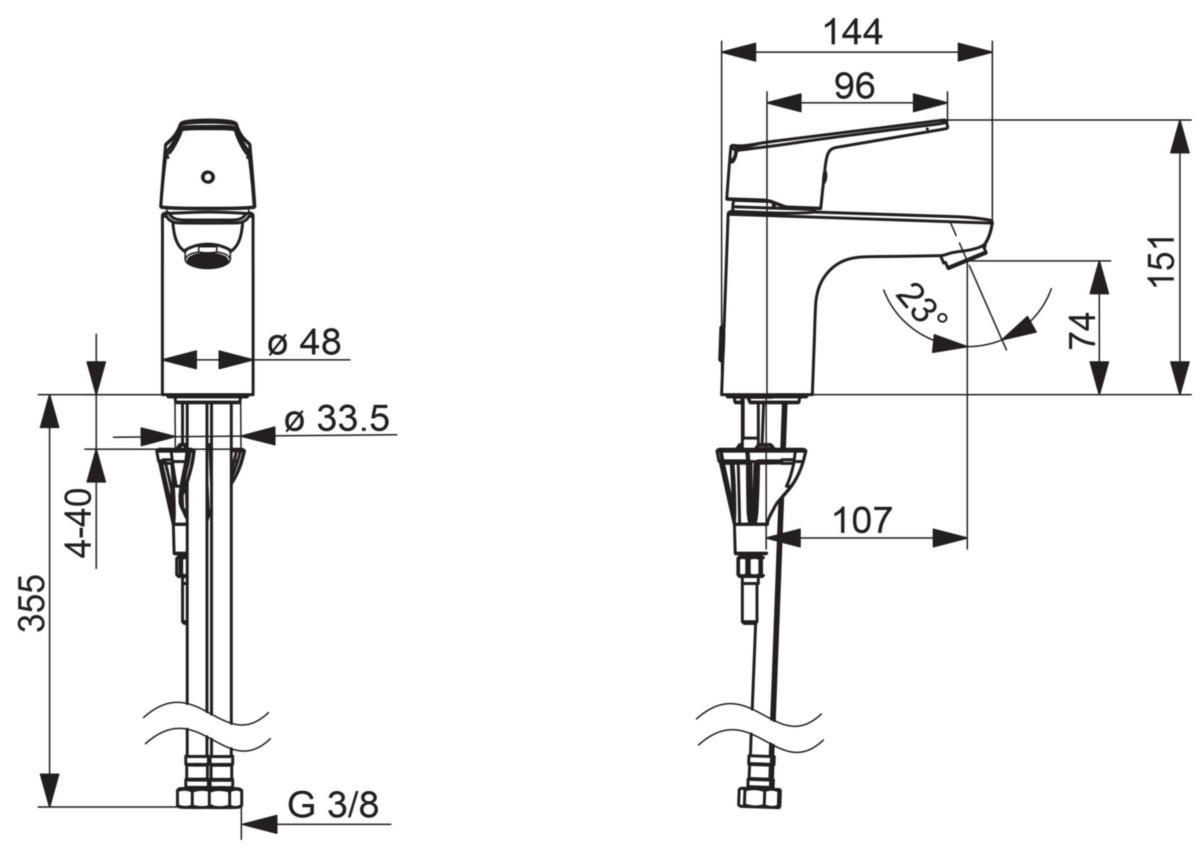

- Spout overhang length: 107 mm
- Spout model: Fixed
- Mounting method: Top/tap hole
- Max. tap capacity (at 300 kPa): 10.8 l/min
- With stop valve for external equipment: No
- With temperature limit: Yes
- Total construction height: 151 mm
- Construction height, underside of tap nozzle: 74 mm
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Type of grip: Single-grip
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 7,3289 kgCO2e/ST
- REACH Information obligation: Yes
