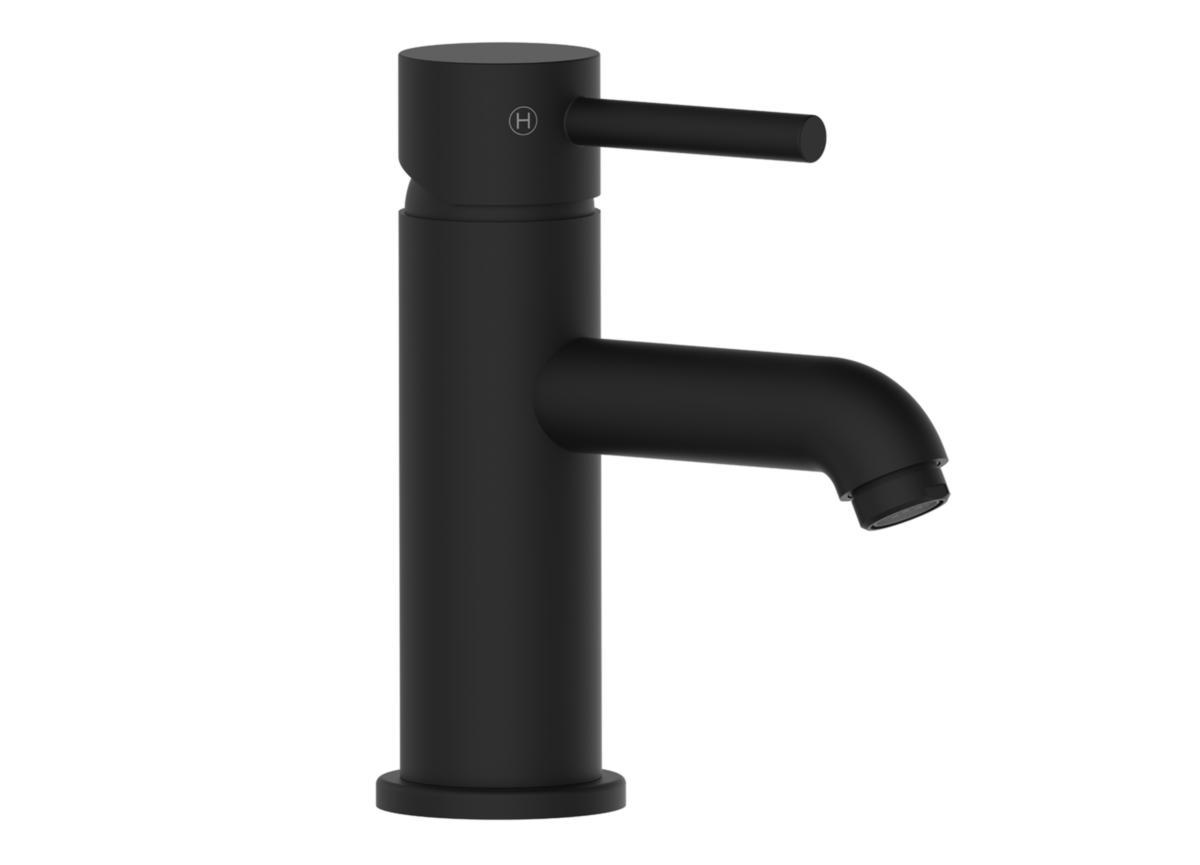

Washbasin mixer Azur III ECO, a-collection
BASIN MIX. AZUR ECO III. BLACK WITH POP-UP WASTE
Article number: Suppl. article no:
8278324
8278324
to see price and stock
Azur III ECO is a washbasin mixer designed for both energy efficiency and easy installation. Here are the key features and components:
Ceramic Cartridge: The mixer features a 35 mm ceramic cartridge that extends its lifespan and ensures smooth and precise temperature control.
Pop-Up Waste: This is included and allows you to easily control the water flow through the washbasin.
Connection Hoses: The mixer comes with flexible connection hoses made of metal-coated Soft PEX®, providing increased durability and easy connection. The hoses have G10 coupling nuts for easy installation.
Energy-Saving Features:
Constant Flow Aerator: For energy-efficient and water-saving function.
Energy Efficiency Class A: Categorized for its energy efficiency.
Cold Start Function: Reduces unnecessary hot water flow when the lever is opened straight up. This saves energy by preventing hot water from entering the flow when it is not needed.

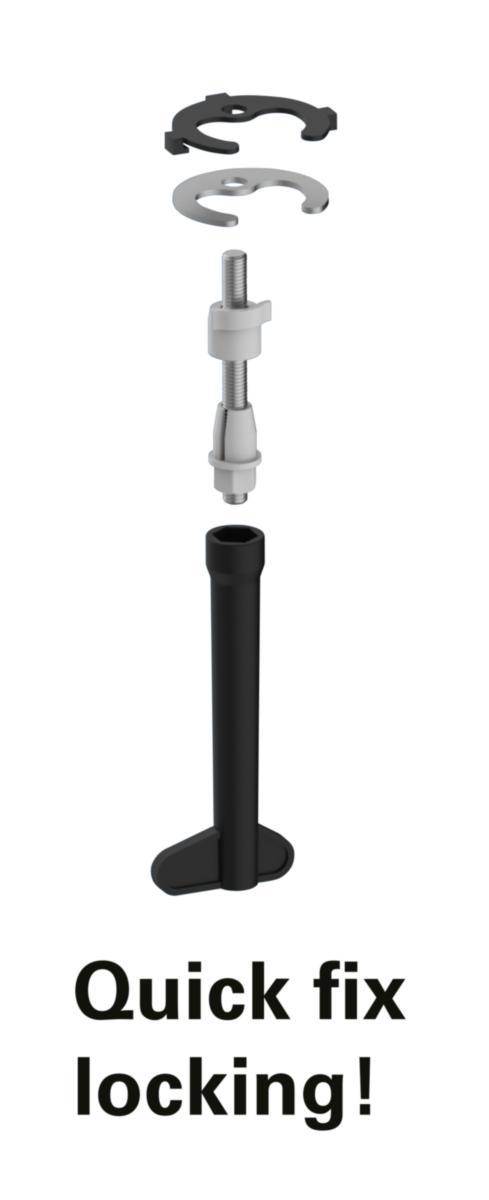

Quickfix: The patented "Quickfix" allows for quick final assembly without the need for additional tools, providing an easy and fast installation.
Material: Made of 4MS approved dezincification-resistant brass alloy, ensuring long-lasting durability and resistance to corrosion.
Ceramic Cartridge: The mixer features a 35 mm ceramic cartridge that extends its lifespan and ensures smooth and precise temperature control.
Pop-Up Waste: This is included and allows you to easily control the water flow through the washbasin.
Connection Hoses: The mixer comes with flexible connection hoses made of metal-coated Soft PEX®, providing increased durability and easy connection. The hoses have G10 coupling nuts for easy installation.
Energy-Saving Features:
Constant Flow Aerator: For energy-efficient and water-saving function.
Energy Efficiency Class A: Categorized for its energy efficiency.
Cold Start Function: Reduces unnecessary hot water flow when the lever is opened straight up. This saves energy by preventing hot water from entering the flow when it is not needed.
Quickfix: The patented "Quickfix" allows for quick final assembly without the need for additional tools, providing an easy and fast installation.
Material: Made of 4MS approved dezincification-resistant brass alloy, ensuring long-lasting durability and resistance to corrosion.
- Article number: 8278324
- Suppl. article no: 8278324
- Ean no: 7333123064585
- Replaces art.nbr: 8278143
- Material class PCK020
Technical data
- Packagin Size: 1 ST/10 ST
- Surface protection: Coated
- Surface treatment: Brushed
- Mounting method: Top/tap hole
- Basic colour: Black
- Low-pressure model: No
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 115 mm
- Spout model: Fixed, bottom
- Type of spout: Pipe
- Accent colour: Black
- Max. tap capacity (at 300 kPa): 4.9 l/min
- With stop valve for external equipment: No
- With couplers: Yes
- With temperature limit: Yes
- Total construction height: 157 mm
- Construction height, underside of tap nozzle: 67 mm
- Cold start function: Yes
- Type approval according to BBR/EKS: Yes
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: No
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- Scald protection: Yes
- Reserve accumulator: No
- KIWA certified: Yes
- Can be disconnected under water pressure: No
- Max. supply temperature: 95 °C
- With drain plug: Yes
- With waste fitting: Yes
- With pre-filter: No
- With chain: No
- With side shower: No
- With transformer: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: No
- Type of waste fitting: Pop-up waste (click-clack)
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Chain eye included: No
- GWP-tot (A1-A3): 9,4094 kgCO2e/ST
