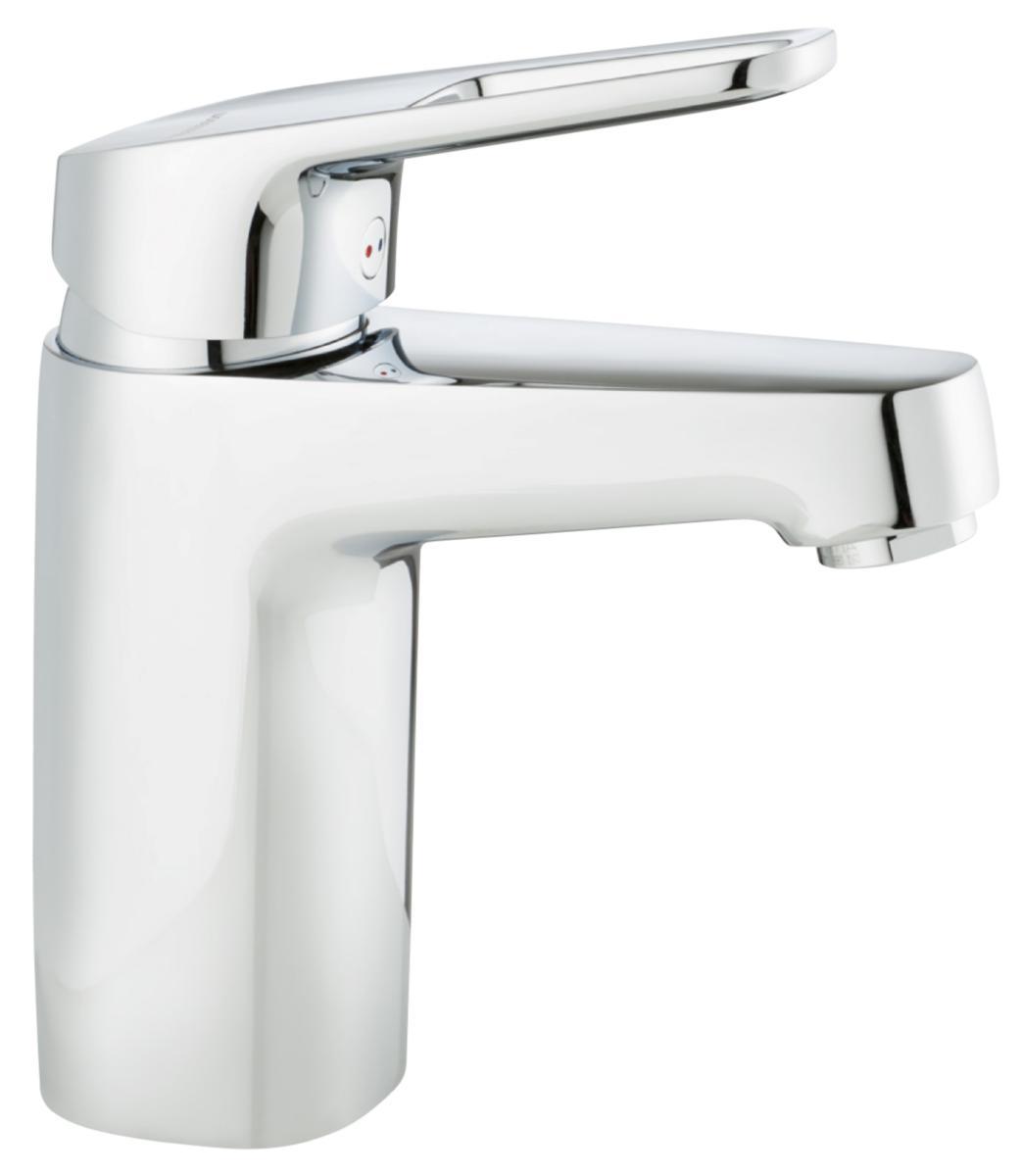

Washbasin mixer Siljan, FMM
FMM SILJAN WASH BASIN MIXER LEAD FREE, 8550-0010
Article number: Suppl. article no:
8277538
85500010
to see price and stock
Single lever wash basin mixer, Siljan, without bottom valve. EcoSafe mixers.
- Article number: 8277538
- Suppl. article no: 85500010
- Ean no: 7391887245855
- Material class PCK11A
Technical data
- Packagin Size: 1 ST/120 ST
- Basic colour: Chrome
- Surface treatment: Polished
- Surface protection: Chromium-plated
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 115 mm
- Spout model: Fixed
- Type of spout: Cast
- Mounting method: Top/tap hole
- Low-pressure model: No
- Accent colour: Other
- Max. tap capacity (at 300 kPa): 5 l/min
- With stop valve for external equipment: No
- With couplers: Yes
- With temperature limit: Yes
- Total construction height: 169 mm
- Construction height, underside of tap nozzle: 100 mm
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- With waste fitting: No
- With side shower: No
- Mounting: Top/tap hole
- Locking mechanism: Top section, ceramic
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2021-11-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
