Mora

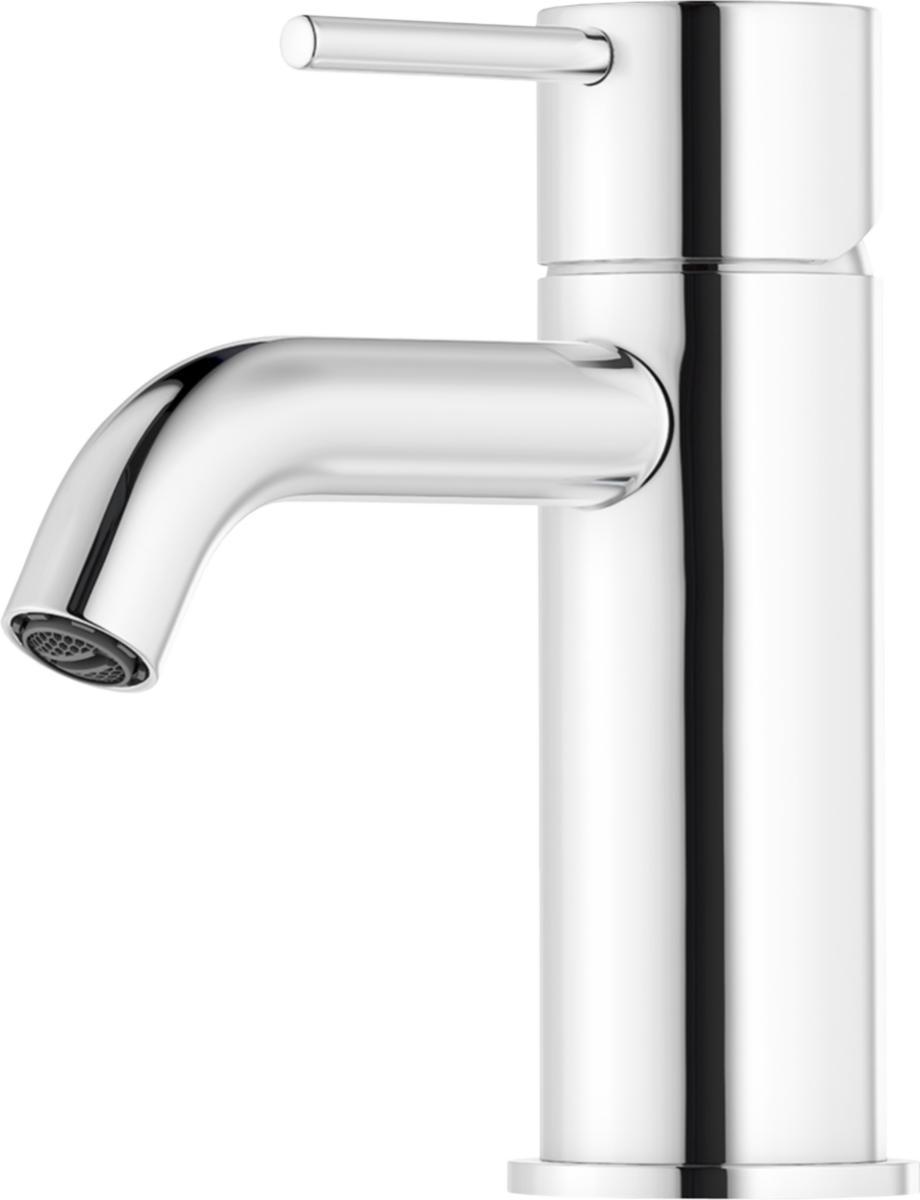

Washbasin mixer INXX II soft small, Mora
MORA INXX II WB MIXER SOFT SMALL, LEED, CHROME
Article number: Suppl. article no:
8275721
273001.LD3
to see price and stock
Washstand mixer with energy- and water-saving constant-flow jet collector, 5 l/min.
Flexible connection pipes in metal spun Soft PEX®, 3/8". Manufactured in 4MS approved brass alloy.
Flexible connection pipes in metal spun Soft PEX®, 3/8". Manufactured in 4MS approved brass alloy.
- Article number: 8275721
- Suppl. article no: 273001.LD3
- Ean no: 7391887269530
- Material class PCM300
Technical data
- Packagin Size: 1 PCS/288 PCS
- Design: Leed Chromium
- Basic colour: Chrome
- Surface protection: Chromium-plated
- Surface treatment: Other
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 106 mm
- Spout model: Fixed
- Type of spout: Pipe
- Mounting method: Top/tap hole
- Accent colour: Chrome
- Max. tap capacity (at 300 kPa): 3 l/min
- With stop valve for external equipment: No
- With couplers: Yes
- With temperature limit: Yes
- Total construction height: 143 mm
- Construction height, underside of tap nozzle: 64 mm
- Cold start function: No
- Type approval according to BBR/EKS: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. flow: No
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- With drain plug: No
- With waste fitting: No
- With chain: No
- With side shower: No
- With transformer: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Chain eye included: No
- Backflow safeguard according to EN 1717: AA, free air gap
