Oras
Basin mixer 2606FH Oras Optima Style
ORAS OPTIMA STYLE WB MIXER BID. MATTE BLACK, 2606FH-33
Article number: Suppl. article no:
8275683
2606FH-33
to see price and stock

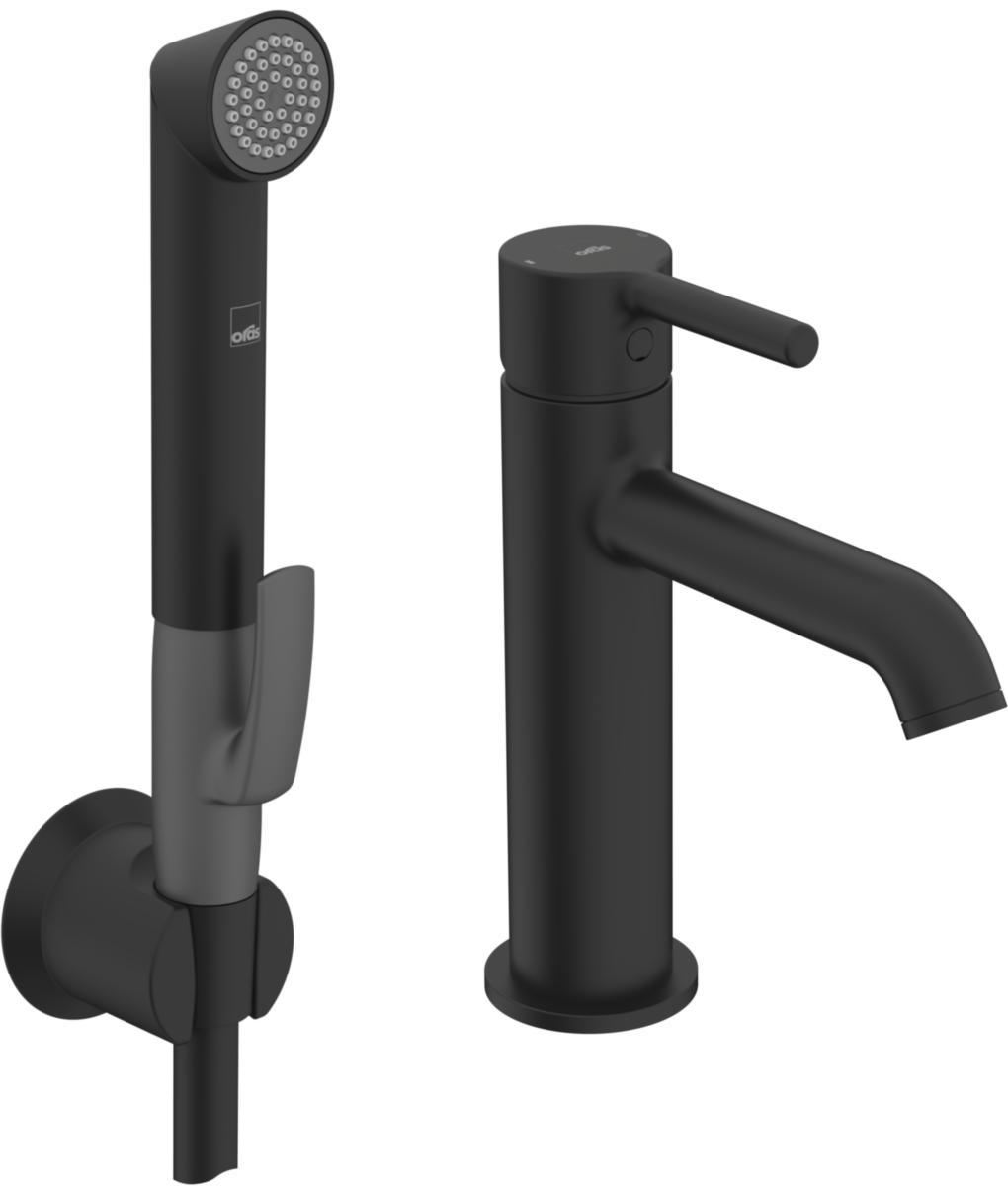

Washstand mixer with a user-friendly stick lever and self-closing Bidetta hand shower, hose and wall bracket.
Dezincification resistant 4MS DZR brass. F = flexible connections.
Builds on Oras 3.0 cassette with built-in flow and temperature barrier.
Dezincification resistant 4MS DZR brass. F = flexible connections.
Builds on Oras 3.0 cassette with built-in flow and temperature barrier.
- Article number: 8275683
- Suppl. article no: 2606FH-33
- Ean no: 6414150102547
- Material class PCK13A
Technical data
- Design: Matt black
- Cold start function: No
- Basic colour: Black
- Surface treatment: Other
- Surface protection: Coated
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)

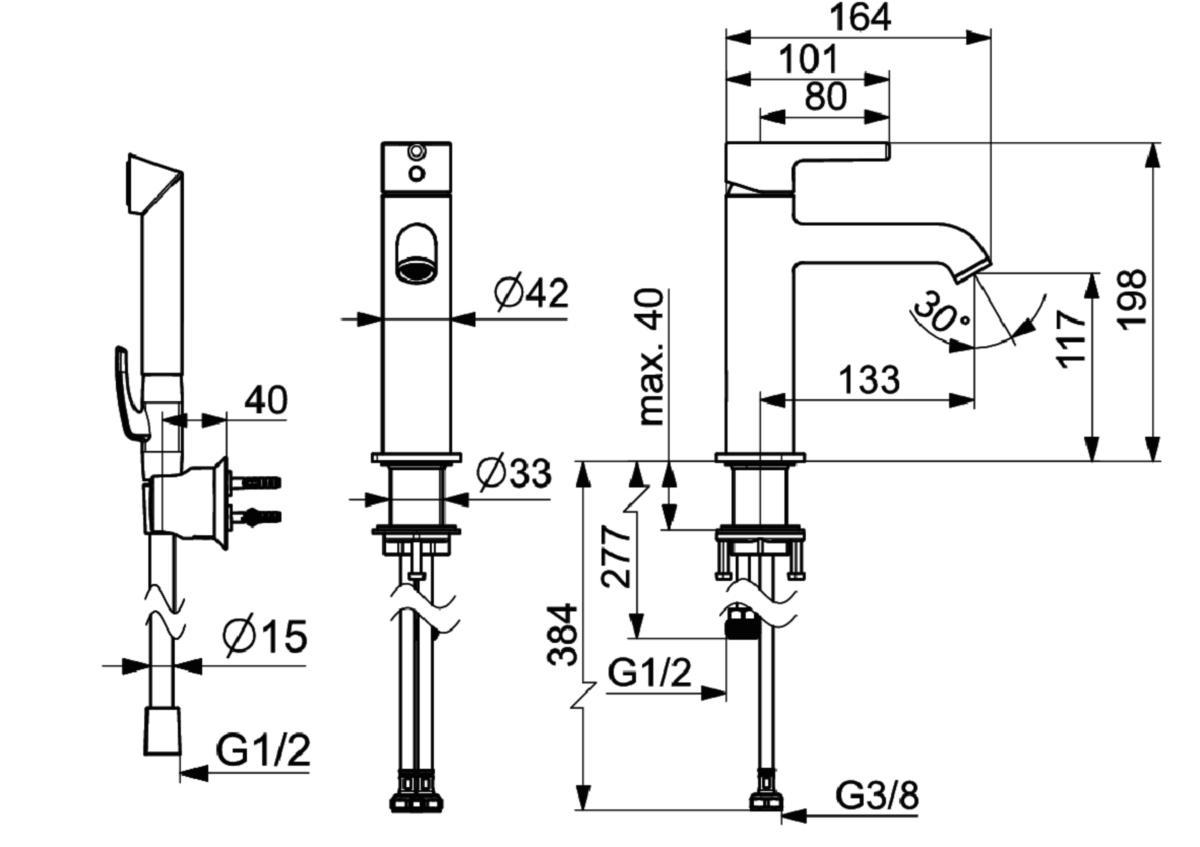

- Spout overhang length: 133 mm
- Spout model: Fixed, bottom
- Type of spout: Cast
- Low-pressure model: No
- Max. tap capacity (at 300 kPa): 6 l/min
- With stop valve for external equipment: No
- With couplers: No
- With temperature limit: Yes
- Total construction height: 198 mm
- Construction height, underside of tap nozzle: 117 mm
- Type approval according to BBR/EKS: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: No
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- Certified according to Belgaqua: Yes
- Reserve accumulator: No
- Can be disconnected under water pressure: No
- Max. supply temperature: 80 °C
- With building management system connection: No
- With drain plug: No
- With waste fitting: No
- With chain: No
- With side shower: Yes
- With transformer: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Chain eye included: No
- Backflow safeguard according to EN 1717: EB
- Shape of spout: J spout
- Material handle: Plastic
- With siphon: No
- GWP-tot (A1-A3): 11,4269 kgCO2e/ST
