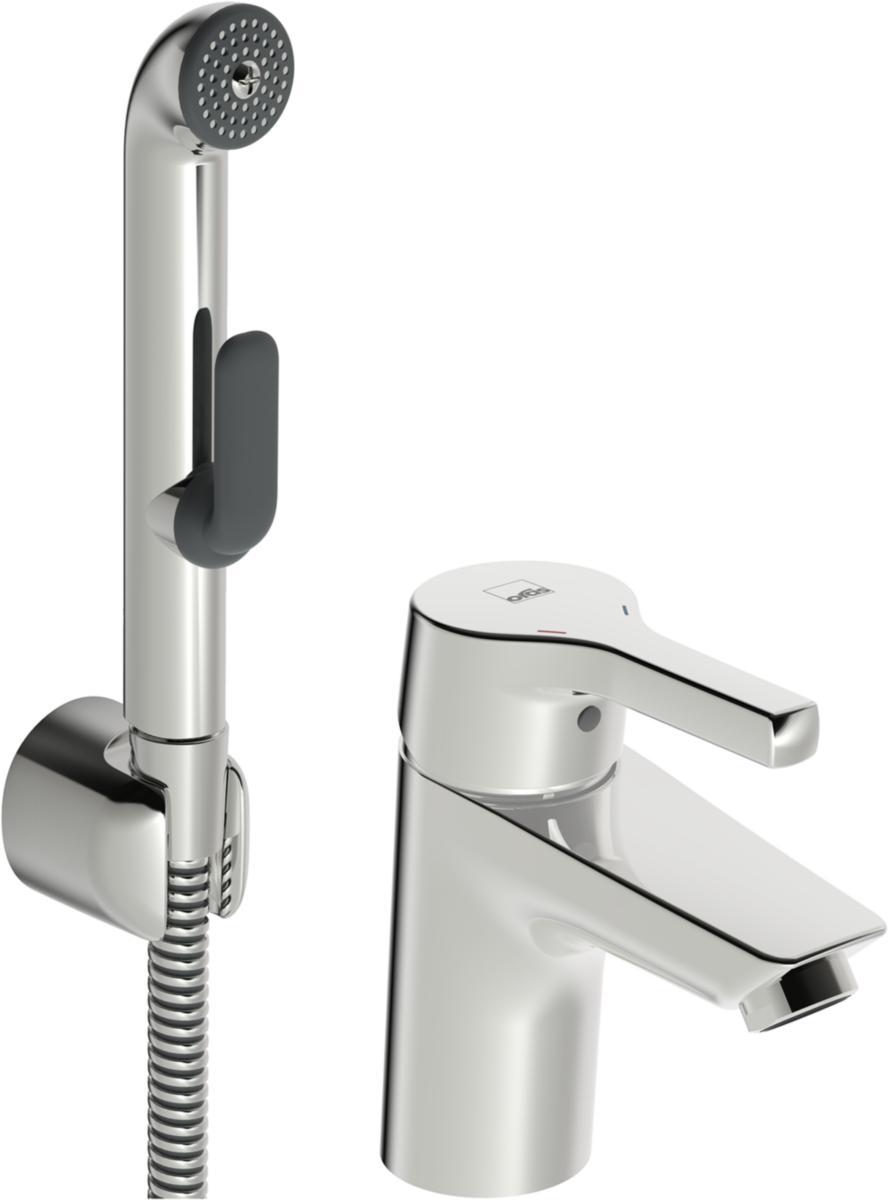

Basin mixer 3912FH Oras Saga Style
ORAS SAGA STYLE WASBASIN MIXER, W BIDETTA 3912FH
Article number: Suppl. article no:
8275617
3912FH
to see price and stock
Washstand mixer with Bidetta hand shower. Fixed outlet spout, jet collector, shower hose 1.5 m and wall bracket. Built-in barrier for limiting temperature and flow via Oras 3.5 STD cassette.
Oras 3S installation system for quick and easy installation.
Flow control 6.0 l/min. F=flexible connection. G3/8" in. G
Oras 3S installation system for quick and easy installation.
Flow control 6.0 l/min. F=flexible connection. G3/8" in. G
- Article number: 8275617
- Suppl. article no: 3912FH
- Ean no: 6414150088674
- Material class PCK130
Technical data
- Basic colour: Chrome
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)

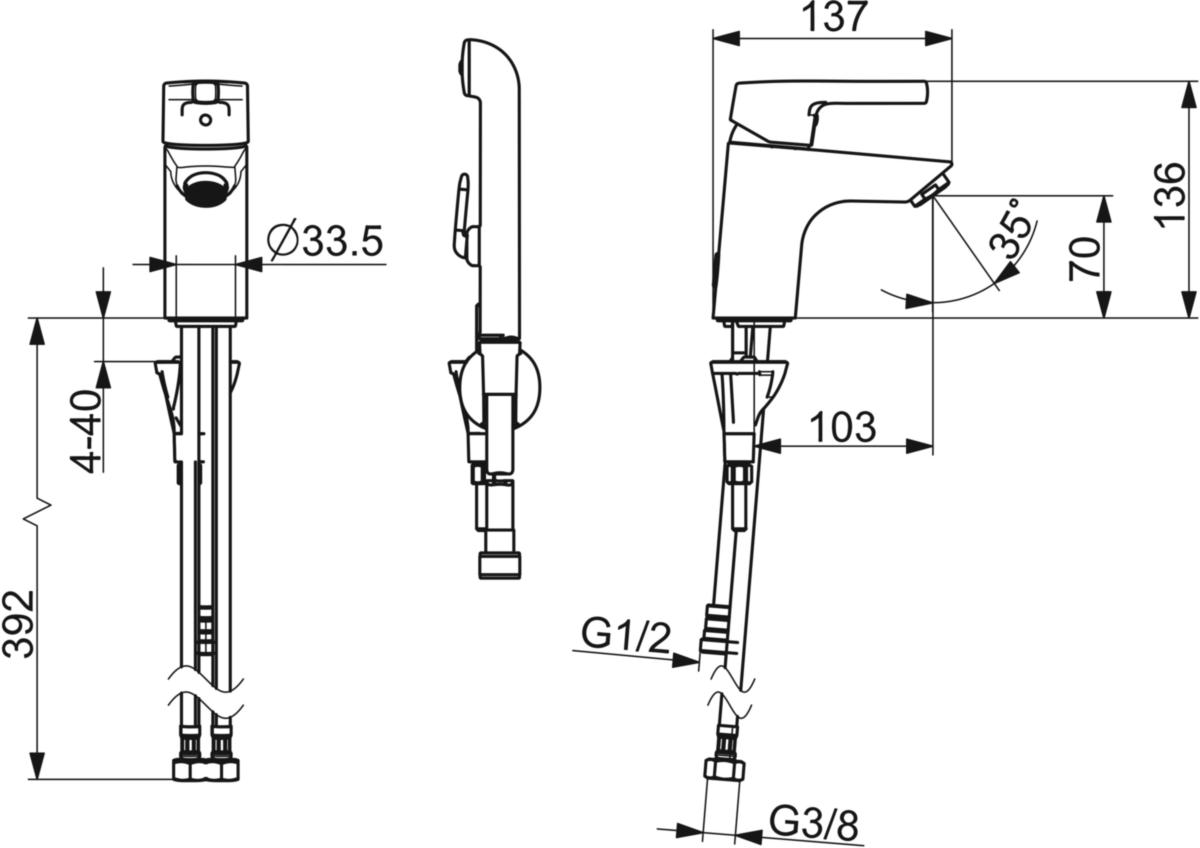

- Spout overhang length: 103 mm
- Spout model: Fixed, bottom
- Type of spout: Cast
- Max. tap capacity (at 300 kPa): 6 l/min
- With temperature limit: Yes
- Total construction height: 136 mm
- Construction height, underside of tap nozzle: 70 mm
- Type approval according to BBR/EKS: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- Number of tap holes: 1-hole
- With side shower: Yes
- Model: Mechanical
- Mounting: Top/tap hole
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-11-01
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 10,0549 kgCO2e/ST
- REACH Information obligation: Yes
