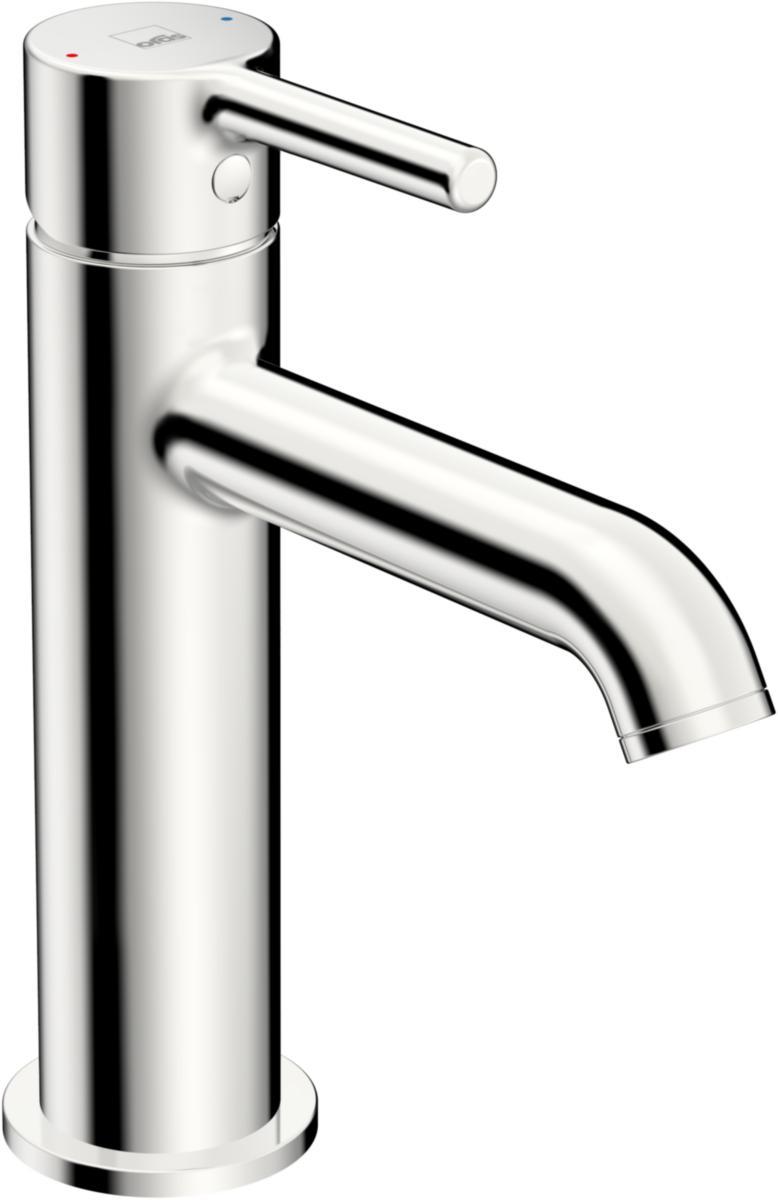

Washbasin mixer 2605FH Oras Optima Style
ORAS OPTIMA STYLE WASHBASIN 2606FH
Article number: Suppl. article no:
8275011
2605FH
to see price and stock
Washstand faucet with a user-friendly stick lever that is easy to grip.
Dezincification resistant 4MS DZR brass. F = flexible connections.
Builds on Oras 3.0 cassette with built-in flow and temperature barrier.
Dezincification resistant 4MS DZR brass. F = flexible connections.
Builds on Oras 3.0 cassette with built-in flow and temperature barrier.
- Article number: 8275011
- Suppl. article no: 2605FH
- Ean no: 6414150099236
- Material class PCK130

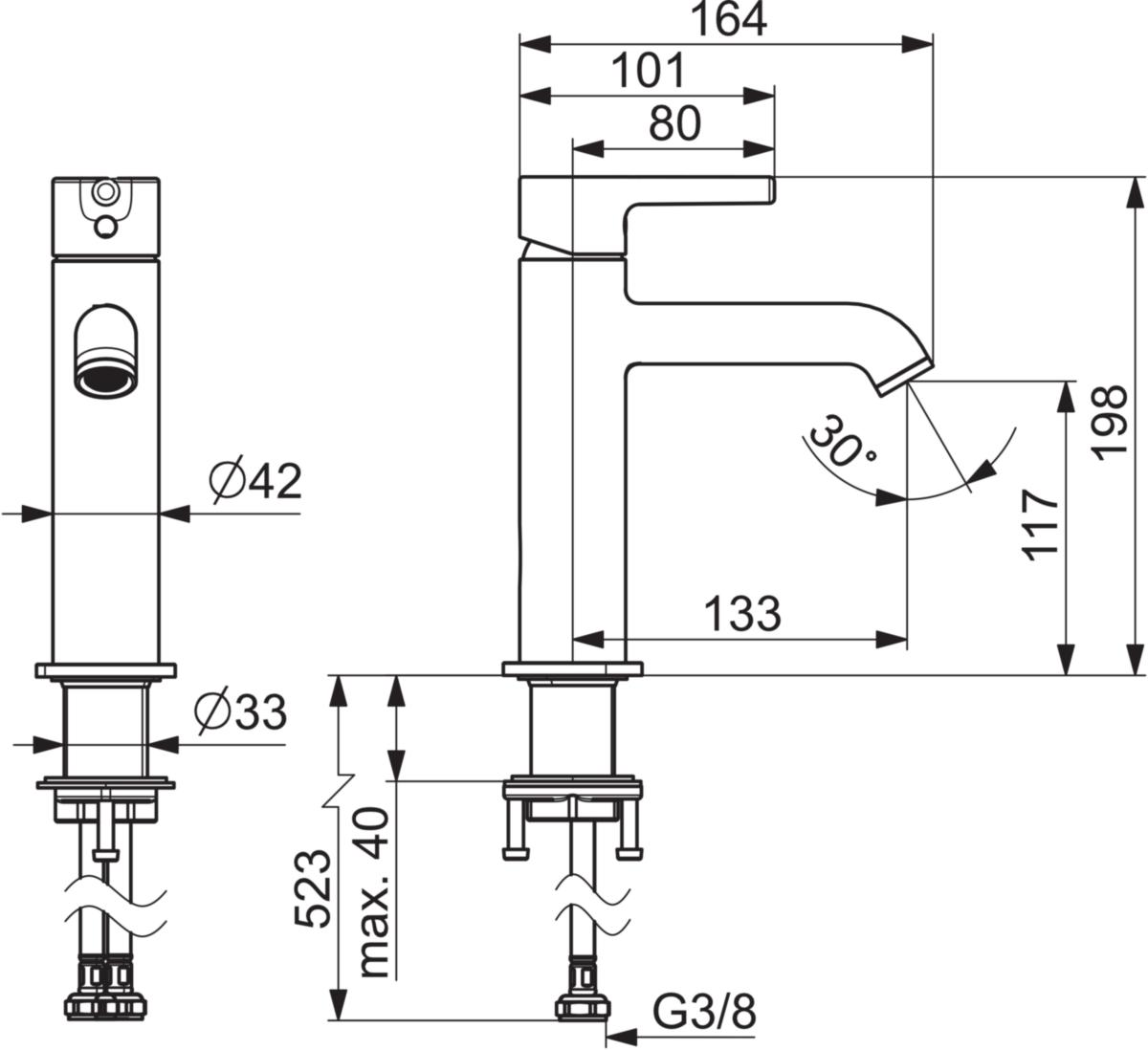

Technical data
- Packagin Size: 1 PCS/12 PCS/144 PCS
- Design: Chromium
- Basic colour: Chrome
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 133 mm
- Spout model: Fixed, bottom
- Type of spout: Cast
- Max. tap capacity (at 300 kPa): 6 l/min
- With temperature limit: Yes
- Total construction height: 198 mm
- Construction height, underside of tap nozzle: 117 mm
- Type approval according to BBR/EKS: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- Number of tap holes: 1-hole
- KIWA certified: Yes
- Can be disconnected under water pressure: No
- Max. supply temperature: 80 °C
- With waste fitting: No
- Model: Mechanical
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2023-04-17
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 7,5130 kgCO2e/ST
- REACH Information obligation: Yes
