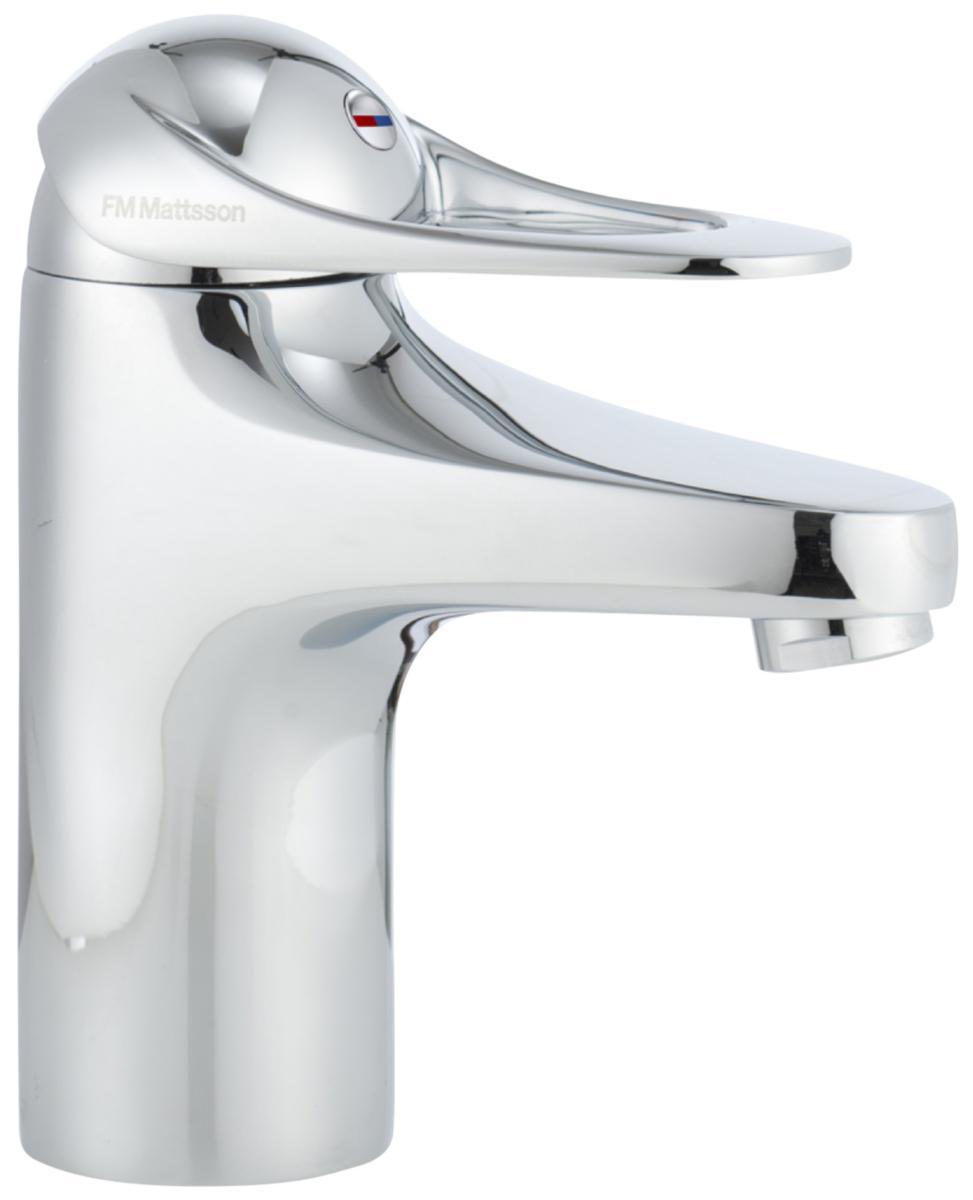

Washbasin mixer 9000E II, FMM
FMM 9000E II WASHBASIN MIXER 8060-0010 3/8"
Article number: Suppl. article no:
8235437
80600010
to see price and stock
Energy-rated washbasin mixer with eco-flow. Soft closing that prevents bangs and pressure shocks is standard, as well as cold start, ceramic seal and built-in temperature barrier. 5 year print warranty. Also available with strainer plug valve or pressure plug.
- Article number: 8235437
- Suppl. article no: 80600010
- Ean no: 7391887232725
- Material class PCK11A
Technical data
- Packagin Size: 1 ST/11 ST
- Design: 8060-0010
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Basic colour: Chrome
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 100 mm
- Spout model: Fixed
- Type of spout: Cast
- Accent colour: Chrome
- Max. tap capacity (at 300 kPa): 6 l/min
- With stop valve for external equipment: No
- With temperature limit: Yes
- Total construction height: 157 mm
- Construction height, underside of tap nozzle: 78 mm
- Cold start function: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Scald protection: Yes
- With rosettes/cover plate: No
- Mounting: Top/tap hole
- Locking mechanism: Top section, ceramic
- Type of grip: Single-grip
- Tap nozzle: Anti-splash jet nozzle
- Material tap: Brass
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2021-11-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
