Oras
Shower mixer 150 c/c Nova 7460, Oras
ORAS NOVA SHOWER MIXER MATT BLACK. 150C/C, 7460-33
Article number: Suppl. article no:
8351387
7460-33
to see price and stock
Thermostat mixer for shower. Temperature dial with safety lock at 38°C, volume dial with control for Eco-flow, ceramic upper part. The mixer is equipped with check valves and dirt filter.
- Article number: 8351387
- Suppl. article no: 7460-33
- Ean no: 6414150097607
- Material class PCL13B
Technical data
- Packagin Size: 1 ST/6 ST
- Connection supply: Internal thread
- Connection size supply: 3/4 inch (20)

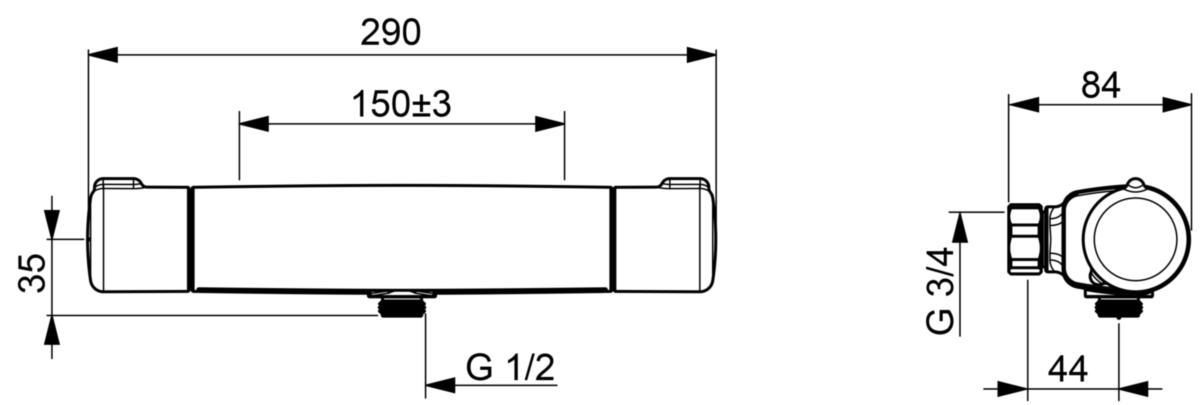

- Centre distance: 150 mm
- Basic colour: Black
- Type of temperature control: Thermostatic
- Nominal diameter outlet: 1/2 inch (15)
- Outlet location: Downwards
- Cool housing: Yes
- With shower set: No
- Type of grip: Two-grip
- Material tap: Brass
- With fixed head shower: No
- With spout: Yes
- Mounting method: Wall
- Backflow safeguard according to EN 1717: EB
- Temperature blocking (38 °C): Yes
- With temperature limit: Yes
- Locking mechanism: Top section, ceramic
- With override stop for flow limitation: Yes
- Surface treatment: Other
- Surface protection: Coated
- Max. tap capacity (at 300 kPa): 16.2 l/min
- Tap nozzle: Open
- Type approval according to BBR/EKS: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- Temperature limit retrofittable: Yes
- REACH Date: 2022-02-24
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 9,9932 kgCO2e/ST
- REACH Information obligation: Yes
