Oras

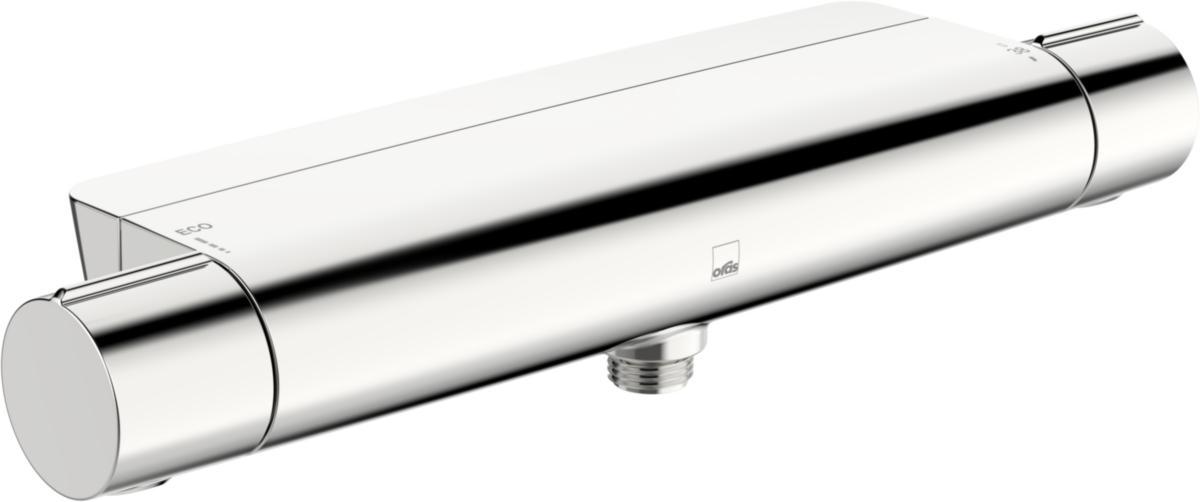

Shower mixer Optima Style, Oras
ORAS OPTIMA STYLE SHOWERMIXER 150C/C, CHROME
Article number: Suppl. article no:
8350270
7160N
to see price and stock
Thermostat mixer for shower. User-friendly knob with temperature limitation button 38°, control for Eco flow via push button. The mixer is equipped with non-return valves and dirt filter.
The mixer has a magnetic shelf included for attachment to the mixer body which provides a deeper shelf surface.
7.2/13.2L/min @ 3 bar - Eco/shower flows
The mixer has a magnetic shelf included for attachment to the mixer body which provides a deeper shelf surface.
7.2/13.2L/min @ 3 bar - Eco/shower flows
- Article number: 8350270
- Suppl. article no: 7160N
- Ean no: 6414150099403
- Replaces art.nbr: 8343747
- Material class PCL13B
Technical data
- Connection supply: Internal thread
- Connection size supply: 3/4 inch (20)
- Centre distance: 150 mm
- Basic colour: Chrome
- Type of temperature control: Thermostatic
- Accent colour: Chrome
- Nominal diameter outlet: 1/2 inch (15)
- Outlet location: Downwards
- Cool housing: Yes
- Type of grip: Two-grip
- Material tap: Brass
- Backflow safeguard according to EN 1717: EB
- Temperature blocking (38 °C): Yes
- With temperature limit: Yes
- With override stop for flow limitation: Yes
- Model: Mechanical
- Surface treatment: Polished
- Surface protection: Chromium-plated
- KIWA certified: Yes
- Max. supply temperature: 80 °C
- With pre-filter: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With rosette: Yes
- GWP-tot (A1-A3): 10,2403 kgCO2e/ST
