Gustavsberg

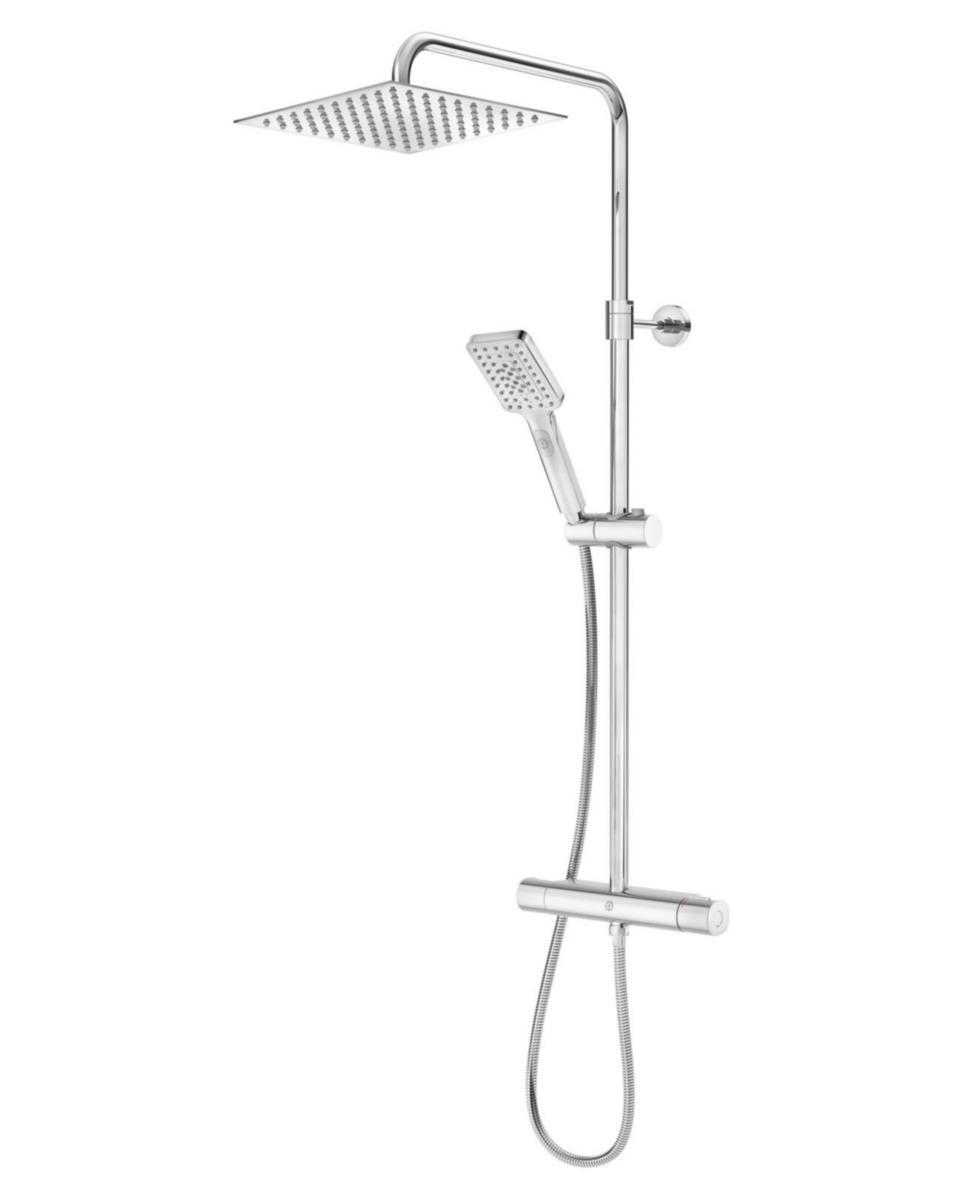

Shower system Atlantic Square, Gustavsberg
GBG ATLANTIC SQUARE SHOWER SYSTEM, 160C/C, CHROME
Article number: Suppl. article no:
8231036
GB41201335
to see price and stock
Thermostat including roof shower set Square.
Super thin ceiling shower 250 x 250 mm
Easy clean – the design of the shower nozzles means that lime deposits can be effectively wiped away
The overhead shower and shower arm are rotatable and can be adjusted individually
400 mm long shower arm provides a generous shower space
Telescopically adjustable height 770-1165 mm
Flexible wall mount 50-130 mm for easy installation
3-function hand shower with button
Hand shower on slides
1.75 m chrome-plated hose
Reverse function in the flow knob
Built-in automatic hot water shut-off for scalding protection
Lock button at comfort temperature 38°C
Safe Touch, minimizes the heat on the front of the mixer
Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
Type-approved non-return valves in the inlets
Backflow protection according to SS-EN 1717 [EB]
The shower set can be assembled with screws or glue
Can be combined with Gustavsberg bathtub spout.
Super thin ceiling shower 250 x 250 mm
Easy clean – the design of the shower nozzles means that lime deposits can be effectively wiped away
The overhead shower and shower arm are rotatable and can be adjusted individually
400 mm long shower arm provides a generous shower space
Telescopically adjustable height 770-1165 mm
Flexible wall mount 50-130 mm for easy installation
3-function hand shower with button
Hand shower on slides
1.75 m chrome-plated hose
Reverse function in the flow knob
Built-in automatic hot water shut-off for scalding protection
Lock button at comfort temperature 38°C
Safe Touch, minimizes the heat on the front of the mixer
Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
Type-approved non-return valves in the inlets
Backflow protection according to SS-EN 1717 [EB]
The shower set can be assembled with screws or glue
Can be combined with Gustavsberg bathtub spout.
- Article number: 8231036
- Suppl. article no: GB41201335
- Ean no: 7391530082806
- Material class PCM420
Technical data
- Basic colour: Chrome
- Centre distance: 160 mm
- With shower set: Yes
- With fixed head shower: Yes
- With diverter unit: Yes
- Accent colour: Chrome
- With temperature limit: Yes
- Type of temperature control: Thermostatic
- Connection supply: External thread
- Mounting method: Wall
- Connection size supply: M26 x 1.5
- Material tap: Brass
- Temperature blocking (38 °C): Yes
- Surface treatment: Polished
- Nominal diameter outlet: 1/2 inch (15)
- Outlet location: Upwards
- Type of grip: Two-grip
- Pressure-compensating: No
- Cool housing: Yes
- Surface protection: Chromium-plated
- Max. tap capacity (at 300 kPa): 0.425
- Max. supply temperature: 80 °C
- Model: Mechanical
- With pre-filter: Yes
