Ceiling shower set 160 c/c, Nova Style, Oras - ORAS NOVA STYLE ROOF SHOWER PACK, 160CC, 7405
/external-assets/JPEGlarge800_800/13/59/ProductImage35591359.jpg
/external-assets/JPEGlarge800_800/13/60/ProductImage35591360.jpg
Oras

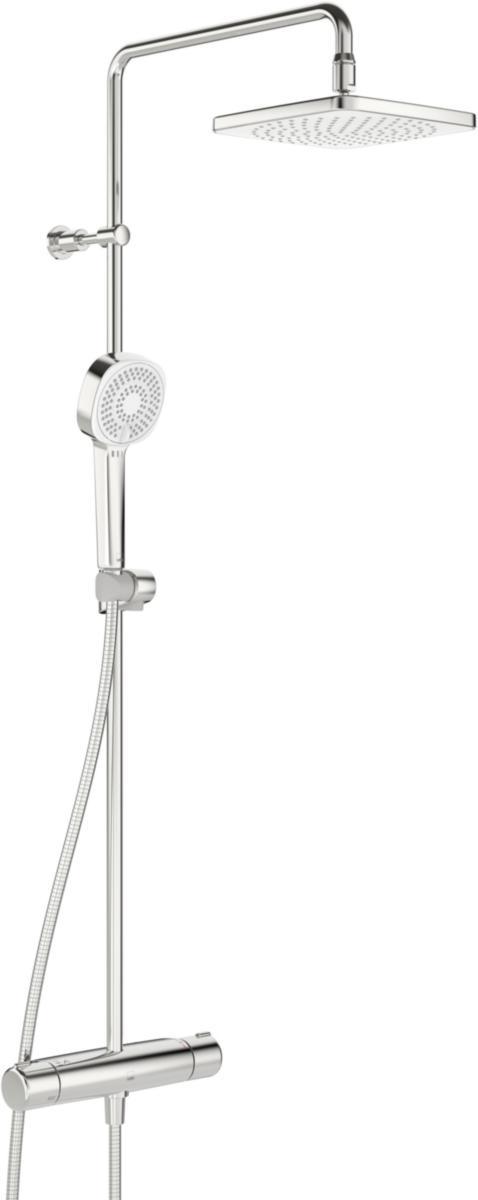

Ceiling shower set 160 c/c, Nova Style, Oras

ORAS NOVA STYLE ROOF SHOWER PACK, 160CC, 7405
Article number:
8283148
Suppl. article no:
7405
‌
‌
‌
‌
‌
 to see price and stock
Environmental product declarationSunda hus: C-Byggvarubedomning: UndviksREACH Information obligation
Nova style overhead shower set with thermostat mixer for shower, connection 160cc, conical connection M26 ext.
User-friendly knobs with temperature limitation and control for Ecoflöde.
The mixer is equipped with non-return valves and dirt filters.
Hand shower with eco-flow and 3-jet types for a comfortable shower experience.
  • Article number:
    8283148
  • Suppl. article no:
    7405
  • Ean no:
    6414150098284
  • Material class
    PCM43B
Technical data
  • Packagin Size: 1 ST/3 ST
  • With diverter unit: Yes
  • With override stop for flow limitation: Yes
  • Centre distance: 160 mm
  • Basic colour: Chrome
  • Surface treatment: Polished
  • With shower set: Yes
  • With fixed head shower: Yes
  • With temperature limit: Yes
  • Type of temperature control: Thermostatic
  • Connection supply: External thread
  • Mounting method: Wall
  • Connection size supply: M26 x 1.5
  • Material tap: Brass
  • Temperature blocking (38 °C): Yes
  • Nominal diameter outlet: 1/2 inch (15)
  • Outlet location: Other
  • Type of grip: Two-grip
  • With couplers: No
  • Backflow safeguard according to EN 1717: EB
  • Cool housing: Yes
  • Surface protection: Chromium-plated
  • Sound class according to EN ISO 3822: Group I, = 20 dB(A)
  • With spout: Yes
  • Max. supply temperature: 75 °C
  • Model: Mechanical
  • Self-closing: No
  • Type approval according to BBR/EKS: Yes
  • REACH Date: 2022-02-25
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
