Oras

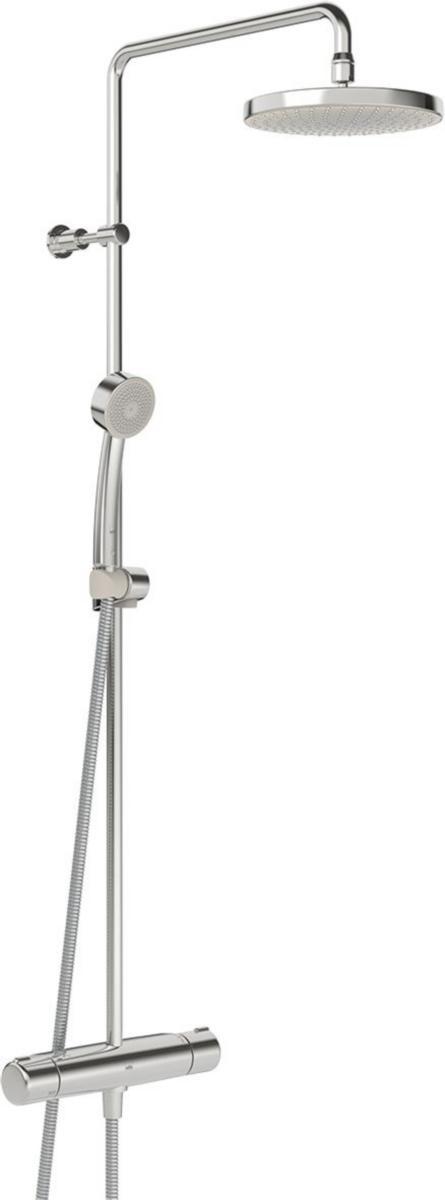

Shower system Nova Rain Shower 150cc, Oras
ORAS NOVA SHOWER SYSTEM 7401
Article number: Suppl. article no:
8283038
7401
to see price and stock
Oras Nova rain shower overhead shower package but thermostatic mixer 150cc, user-friendly knobs with temperature limitation and flow control for Ecoflöde, the mixer is equipped with non-return valves and dirt filter, cutable shower bar with adjustable wall bracket, overhead shower Ø200mm, hand shower with anti-lime nozzle and integrated shower.
Only 4MS approved brass alloys.
NOTE! 8283037, NOT hand shower.
Only 4MS approved brass alloys.
NOTE! 8283037, NOT hand shower.
- Article number: 8283038
- Suppl. article no: 7401
- Ean no: 6414150088223
- Material class PCM43B
Technical data
- Packagin Size: 1 ST/3 ST
- Basic colour: Chrome
- Centre distance: 150 mm
- With shower set: Yes
- With fixed head shower: Yes
- With diverter unit: Yes
- With temperature limit: Yes
- Type of temperature control: Thermostatic
- Connection supply: Internal thread
- Mounting method: Wall
- Connection size supply: 3/4 inch (20)
- Material tap: Brass
- Temperature blocking (38 °C): Yes
- Surface treatment: Polished
- Nominal diameter outlet: Other
- Outlet location: Upwards
- Type of grip: Two-grip
- Backflow safeguard according to EN 1717: EB
- Cool housing: Yes
- Locking mechanism: Top section, ceramic
- Surface protection: Chromium-plated
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spout: Yes
- Max. tap capacity (at 300 kPa): 15 l/min
- KIWA certified: Yes
- Max. supply temperature: 70 °C
- With override stop for flow limitation: Yes
- With rosette: Yes
- Model: Mechanical
- Type approval according to BBR/EKS: Yes
- With pre-filter: Yes
- REACH Date: 2022-02-25
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 19,5708 kgCO2e/ST
- Article number supplier: 7401
- Design: Handshower Ø70mm
- REACH Information obligation: Yes
