Gustavsberg

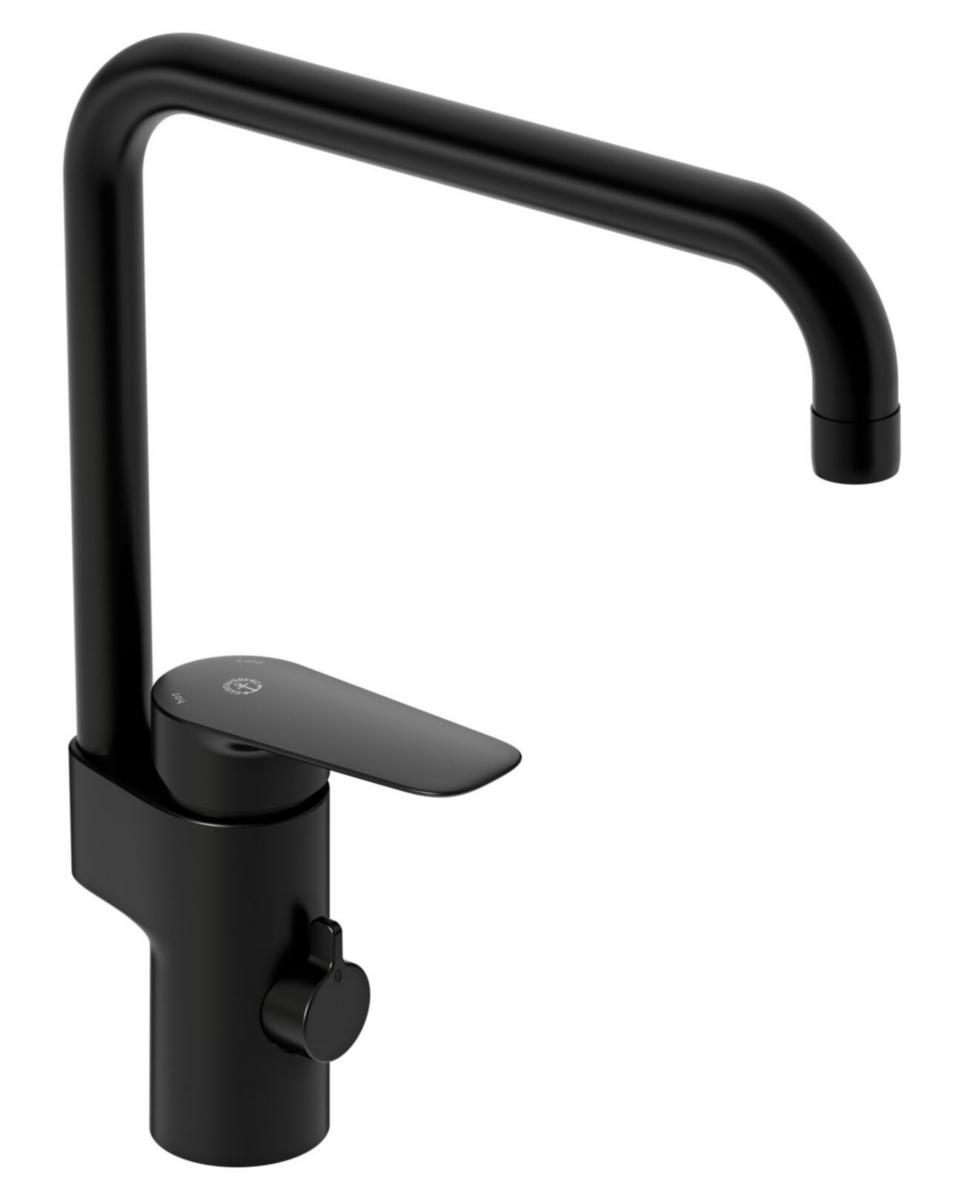

Kitchen Mixer Atlantic, Gustavsberg
GBG ATLANTIC KITCHEN MIXER MATTEBLACK
Article number: Suppl. article no:
8312140
GB4120509853
to see price and stock
All components in food - grade materials
Adjustable maximum temperature for increased scald protection
Swivel spout in 110 ° standard or 60 °
Ceramic seal for drip protection and long service life
Type-approved flexible water connection for easier installation
Backflow protection according to SS-EN 1717 [AA]
Adjustable maximum temperature for increased scald protection
Swivel spout in 110 ° standard or 60 °
Ceramic seal for drip protection and long service life
Type-approved flexible water connection for easier installation
Backflow protection according to SS-EN 1717 [AA]
- Article number: 8312140
- Suppl. article no: GB4120509853
- Ean no: 7391530084893
- Material class PCK120
Technical data
- Packagin Size: 1 PCS/5 PCS
- With stop valve for external equipment: Yes
- Connection supply: Hose (compression)
- Connection size supply: 10 mm
- Type of stop valve for external equipment: Mechanical
- Basic colour: Black
- Spout model: Rotating, top
- Surface protection: Coated
- Surface treatment: Brushed
- Mounting method: Top/tap hole
- Type of spout: Pipe
- With temperature limit: Yes
- Low-pressure model: No
- Total construction height: 330 mm
- Construction height, underside of tap nozzle: 260 mm
- Spout overhang length: 212 mm
- Max. tap capacity (at 300 kPa): 8.16 l/min
- Type approval according to BBR/EKS: Yes
- Cold start function: No
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. hot water temperature: No
- Number of tap holes: 1-hole
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 80 °C
- With drain plug: No
- With chain: No
- Chain eye included: No
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Possibility to limit the max. turning radius of the spout: Yes
- Locking mechanism: Top section, ceramic
- Self-closing: No
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Spout turning radius: 0-110 °
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2023-09-26
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 6,8985 kgCO2e/ST
- REACH Information obligation: Yes
