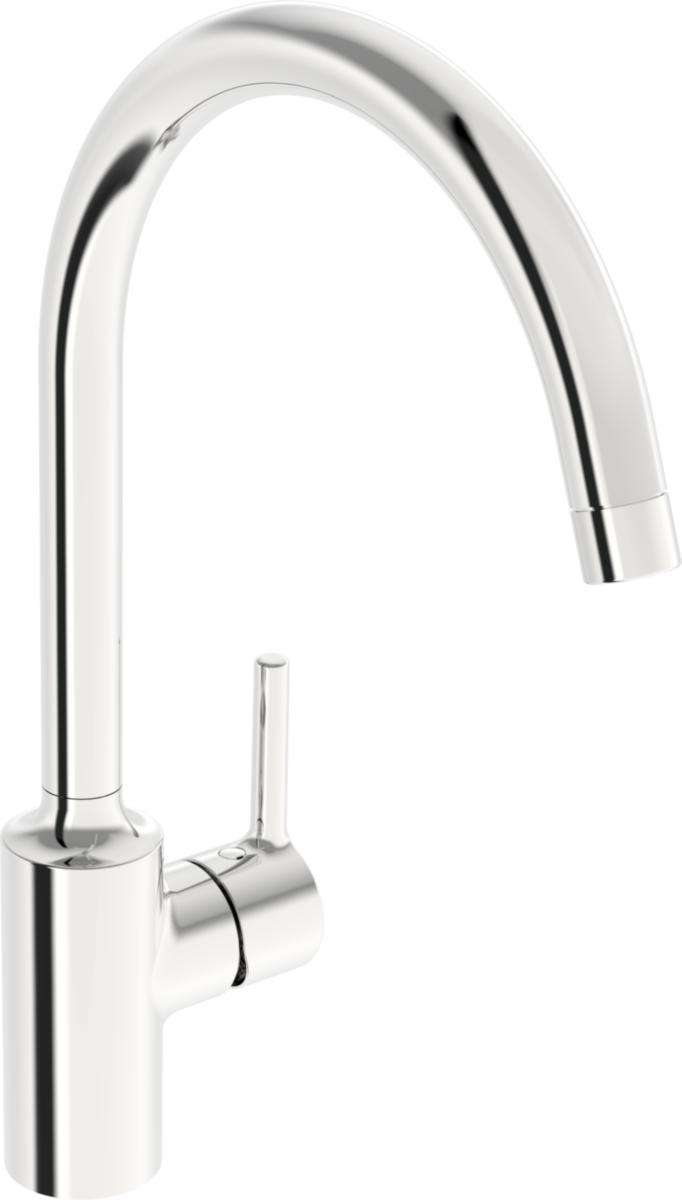

Kitchen faucet 2638AF Oras Optima
ORAS OPTIMA KITCHEN MIXER CHROME, SIDE HANDLE
Article number: Suppl. article no:
8312105
2638AF
to see price and stock
Kitchen mixer with stick lever, high swiveling C outlet spout and jet collector. The swivel radius of the outlet spout is preset to 120° (can be limited to 0°/60°/360°). Built-in barrier for limiting temperature and flow via Oras 3.0 ceramic cassette.
F = flexible connection.
F = flexible connection.
- Article number: 8312105
- Suppl. article no: 2638AF
- Ean no: 6414150102141
- Material class PCK130
Technical data
- With stop valve for external equipment: No
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Basic colour: Chrome
- Spout model: Rotating, top
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Type of spout: Pipe

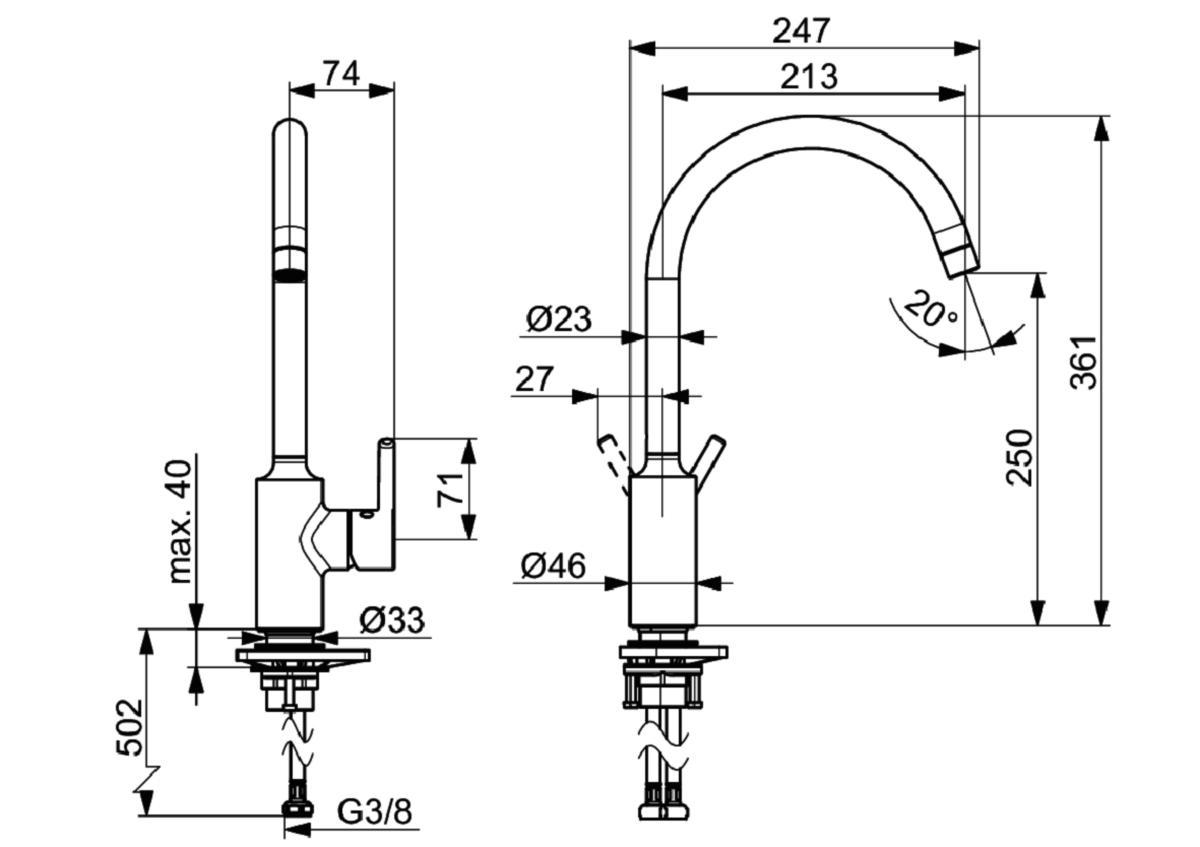

- Total construction height: 361 mm
- Construction height, underside of tap nozzle: 250 mm
- Spout overhang length: 213 mm
- Max. tap capacity (at 300 kPa): 10.8 l/min
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- Number of tap holes: 1-hole
- Material tap: Brass
- Max. supply temperature: 70 °C
- Model: Mechanical
- Mounting: Top/tap hole
- Possibility to limit the max. turning radius of the spout: Yes
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Spout turning radius: 0-120 °
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- GWP-tot (A1-A3): 11,9116 kgCO2e/ST
