Kitchen faucet 1536F Oras Swea - ORAS SWEA KITCHEN WITH DWV SIDE HANDLE, CHROME
Outlet
A

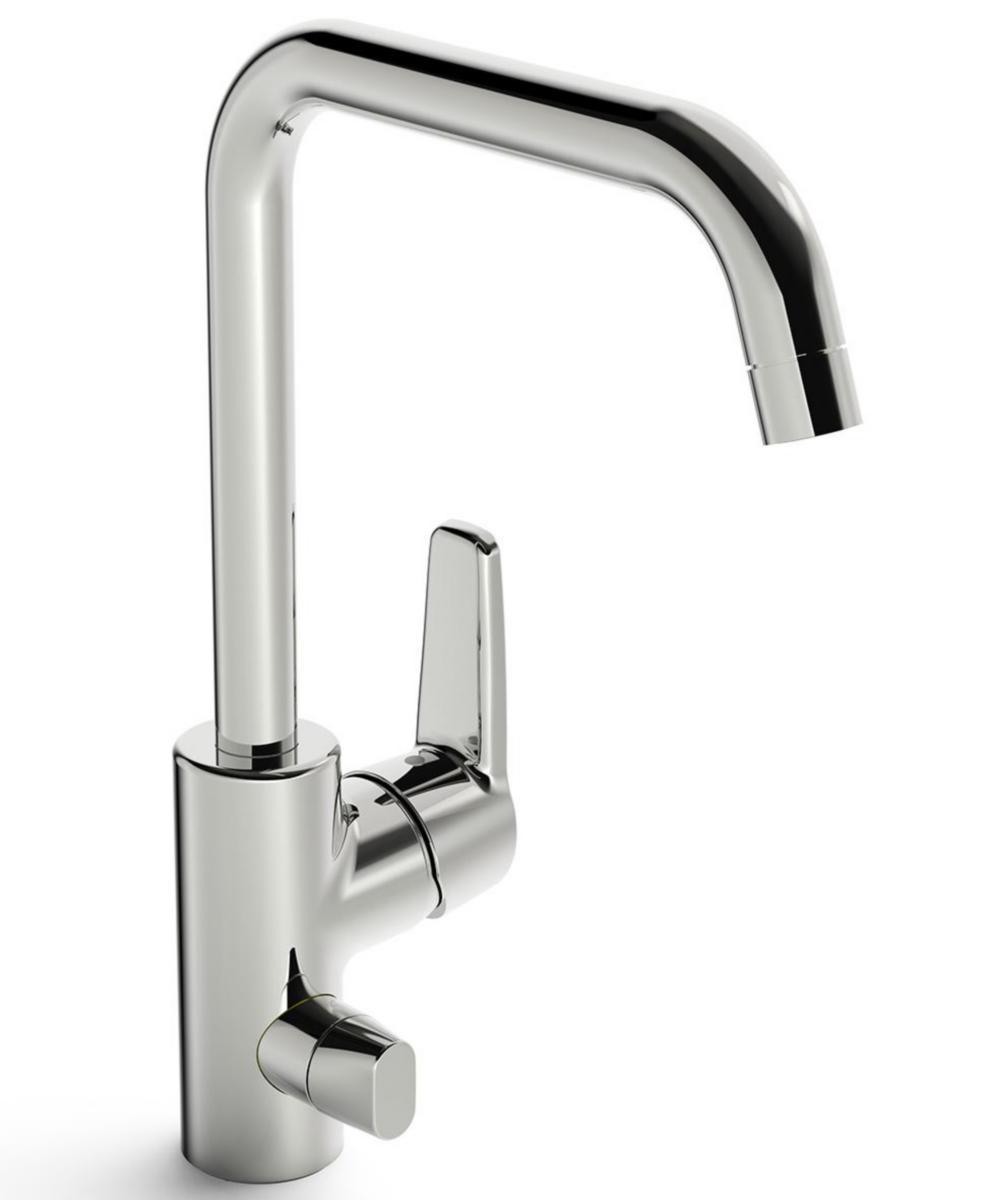

Kitchen faucet 1536F Oras Swea

ORAS SWEA KITCHEN WITH DWV SIDE HANDLE, CHROME
Article number:
8312018
Suppl. article no:
1536F-106
‌
‌
‌
‌
‌
 to see price and stock
Third party verified Environmental product declarationProdukten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.Energimärkt A
Kitchen faucet with side lever, ceramic dishwasher shut-off and high swivel spout. The turning radius of the outlet pipe is preset to 120° (can be limited to 0°, 60°). Built-in barrier for limiting temperature and flow. Cold start cassette, F=flexible connection. Energy class C.
  • Article number:
    8312018
  • Suppl. article no:
    1536F-106
  • Ean no:
    6414150103209
  • Material class
    PCK13A
Technical data
  • Energy label: A
  • With stop valve for external equipment: Yes
  • Connection supply: Hose (gland nut)
  • Connection size supply: 3/8 inch (10)
  • Type of stop valve for external equipment: Mechanical
  • Basic colour: Chrome
  • Spout model: Rotating, top
  • Surface protection: Chromium-plated
  • Surface treatment: Polished
  • Accent colour: Chrome
  • Type of spout: Cast
  • With temperature limit: Yes
  • Total construction height: 325 mm
  • Construction height, underside of tap nozzle: 257 mm
  • Spout overhang length: 203 mm
  • Can be disconnected under water pressure: No
  • Tap can be folded in (bayonet): No
  • Max. tap capacity (at 300 kPa): 6 l/min
  • Type approval according to BBR/EKS: Yes
  • Cold start function: Yes
  • Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
  • With spring-back resistance for max. flow: No
  • With spring-back resistance for max. hot water temperature: No
  • With override stop for flow limitation: Yes
  • Number of tap holes: 1-hole
  • Automatic cycle flushing: No
  • KIWA certified: Yes
  • Suitable for boiling water: No
  • Material tap: Brass
  • Max. supply temperature: 80 °C
  • Extendible side shower: No
  • Extendible spout with hand shower: No
  • Extendible spout with aerator: No
  • Model: Mechanical
  • Mounting: Top/tap hole
  • Possibility to limit the max. turning radius of the spout: Yes
  • Self-closing: No
  • Flushing time adjustable: No
  • Temperature limit retrofittable: Yes
  • Type of grip: Single-grip
  • Type of temperature control: Manually operated
  • Spout turning radius: 0-120 °
  • Tap nozzle: Foam jet nozzle
  • Backflow safeguard according to EN 1717: AA, free air gap
  • REACH Date: 2025-06-04
  • REACH contains candidate substances: Bly
  • GWP-tot (A1-A3): 15,5756 kgCO2e/ST
  • REACH Information obligation: Yes
