Oras

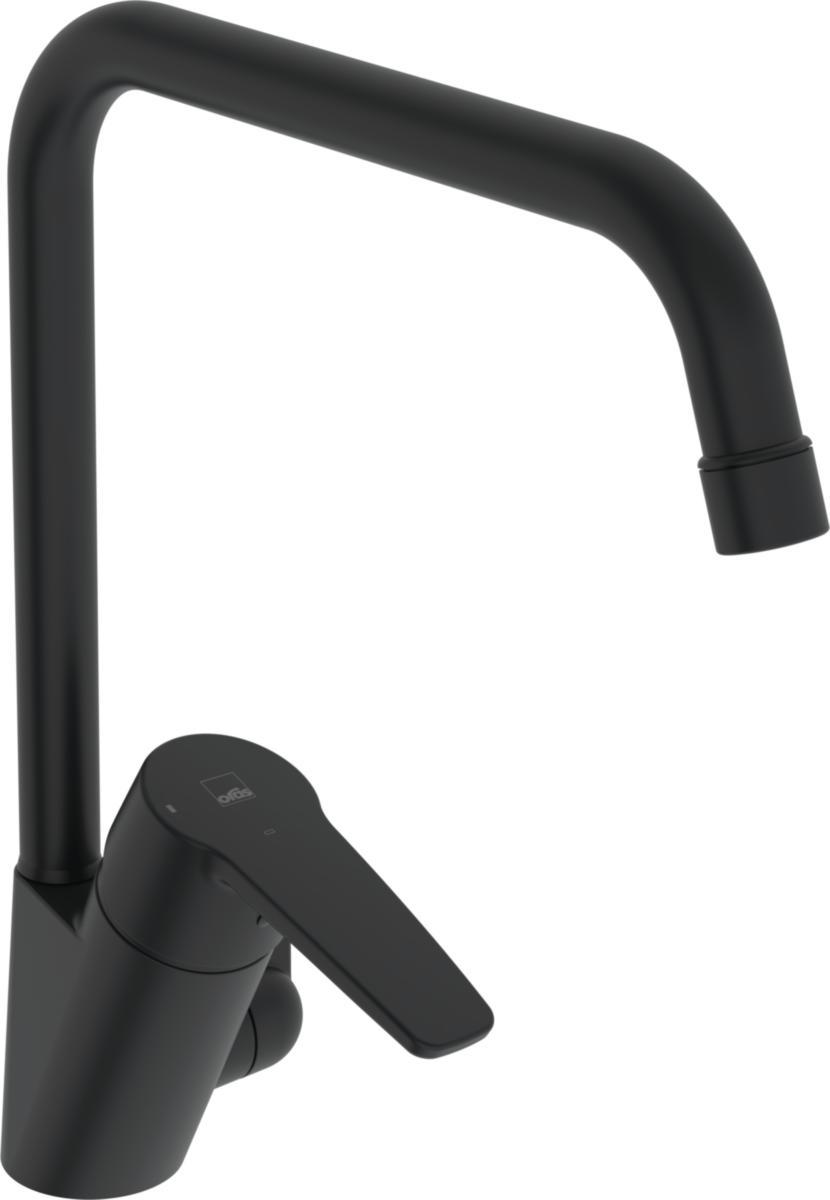

Kitchen Mixer 1534F-106 Oras Swea
ORAS SWEA KITCHEN WITH DWV MATTE BLACK, ENERGYCL. B
Article number: Suppl. article no:
8312016
1534F-106-33
to see price and stock
Matte black kitchen mixer energy class B. With ceramic dishwasher shut-off, high swiveling outlet spout and jet collector. The swiveling radius of the outlet spout is preset to 120° (can be limited to 0°, 60°). Built-in stop to limit temperature and flow. Cold start cassette, F=flexible connection . G3/8" in.G. The product is assessed by Byggvarubedomningen. Manufactured in 4MS approved brass alloy.
- Article number: 8312016
- Suppl. article no: 1534F-106-33
- Ean no: 6414150103186
- Material class PCK130
Technical data
- Energy label: A
- With stop valve for external equipment: Yes
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Type of stop valve for external equipment: Mechanical
- Basic colour: Black
- Spout model: Rotating, top
- Surface protection: Coated
- Surface treatment: Other
- Mounting method: Top/tap hole
- Accent colour: Other
- Type of spout: Pipe
- With temperature limit: Yes
- Total construction height: 301 mm
- Construction height, underside of tap nozzle: 228 mm
- Spout overhang length: 221 mm
- Can be disconnected under water pressure: No
- Tap can be folded in (bayonet): No
- Max. tap capacity (at 300 kPa): 6 l/min
- Type approval according to BBR/EKS: Yes
- Cold start function: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- KIWA certified: Yes
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 70 °C
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Possibility to limit the max. turning radius of the spout: Yes
- Locking mechanism: Cartouche, ceramic
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: Yes
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Spout turning radius: 0-120 °
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2025-06-04
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 10,1180 kgCO2e/ST
- REACH Information obligation: Yes
