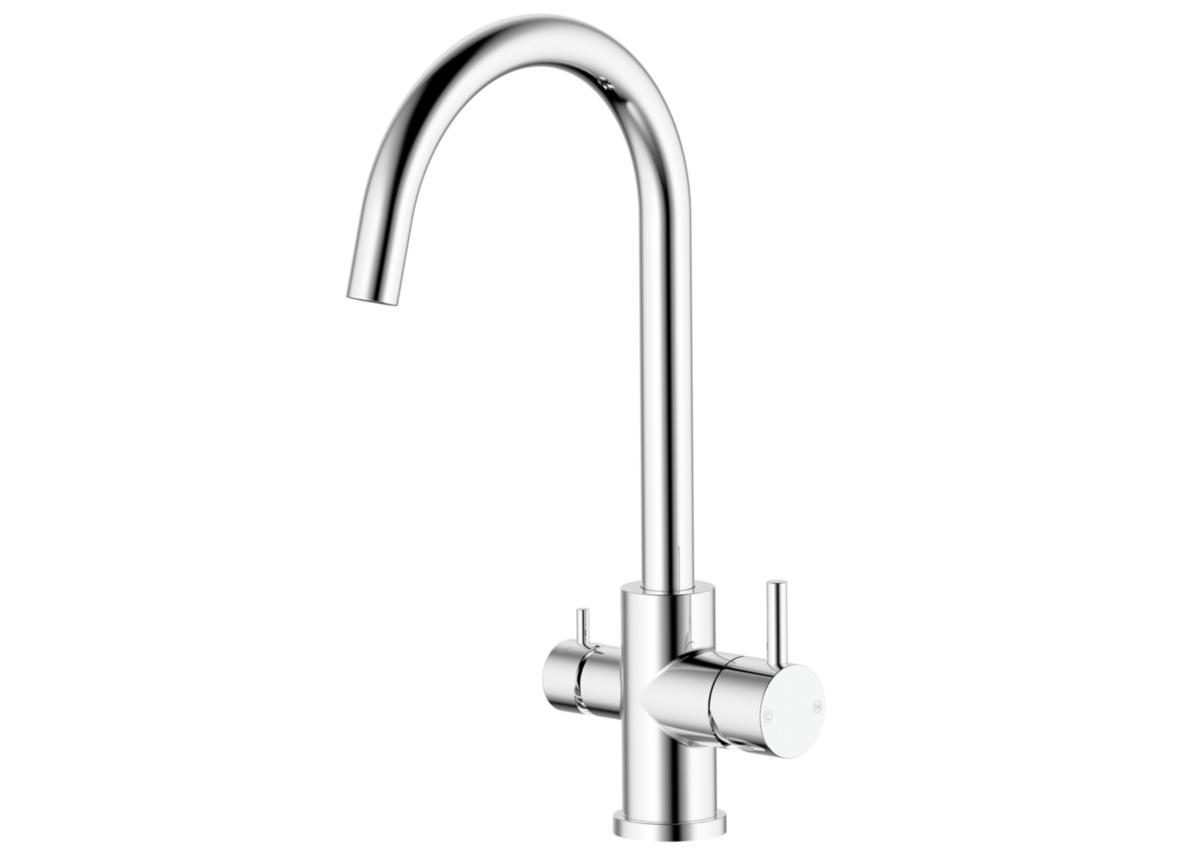

Kitchen Mixer Azur I ECO Chrome, a-collection
KITCHEN MIX. AZUR ECO I CHROM W. DISHWASHER CONNECTION
Article number: Suppl. article no:
8311347
8311347
to see price and stock
Azur I ECO is a kitchen mixer that offers both functionality and energy efficiency. Here are some of its prominent features and technical specifications:
Design and Functionality:
It has a high U-spout and is a single-lever mixer with a 35 mm ceramic cartridge for long-lasting durability and precise temperature control.
Swivel spout with a preset spout stop limited to 120 degrees, providing flexibility and ease of use.
It is available in two versions: with or without dishwasher shut-off. The shut-off rotation tilts to the side when opened, for clarity on whether the water to the dishwasher is on or off.
Technical Specifications:
Energy Saving: Equipped with an energy and water-saving constant flow aerator.
Cold Start Function: Reduces unnecessary hot water flow when the handle is opened straight up, saving energy.

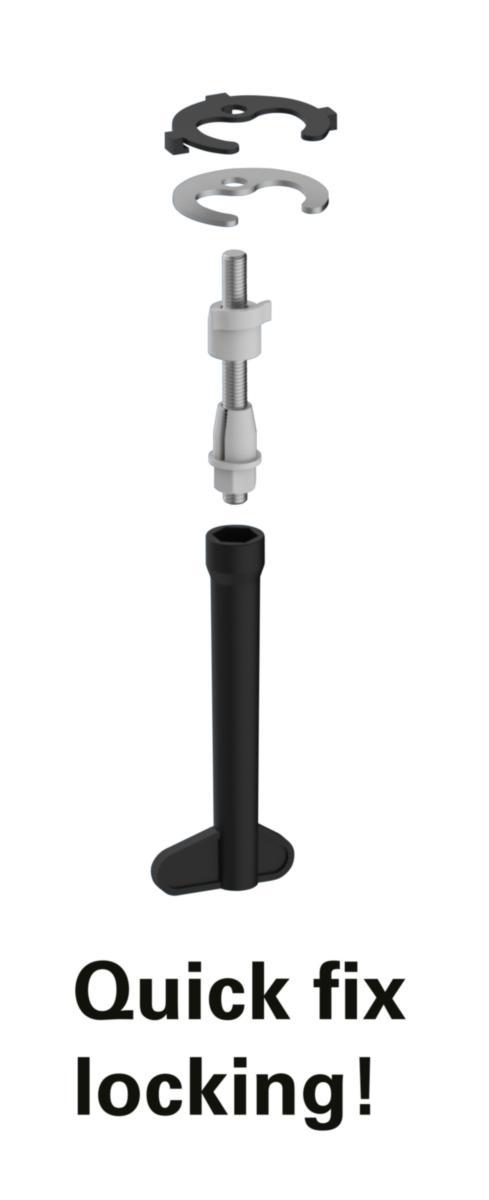

Installation: Patented "Quickfix" for fast and easy final assembly without the need for additional tools.
Connection: Supplied with flexible connection hoses in metal-wrapped Soft PEX®, 500 mm long, with G10 running nut.
Material: Made of a 4MS-approved dezincification-resistant brass alloy, ensuring corrosion resistance and long service life.
This kitchen mixer is ideal for those who desire a combination of modern style, durability, and environmental awareness.
Design and Functionality:
It has a high U-spout and is a single-lever mixer with a 35 mm ceramic cartridge for long-lasting durability and precise temperature control.
Swivel spout with a preset spout stop limited to 120 degrees, providing flexibility and ease of use.
It is available in two versions: with or without dishwasher shut-off. The shut-off rotation tilts to the side when opened, for clarity on whether the water to the dishwasher is on or off.
Technical Specifications:
Energy Saving: Equipped with an energy and water-saving constant flow aerator.
Cold Start Function: Reduces unnecessary hot water flow when the handle is opened straight up, saving energy.
Installation: Patented "Quickfix" for fast and easy final assembly without the need for additional tools.
Connection: Supplied with flexible connection hoses in metal-wrapped Soft PEX®, 500 mm long, with G10 running nut.
Material: Made of a 4MS-approved dezincification-resistant brass alloy, ensuring corrosion resistance and long service life.
This kitchen mixer is ideal for those who desire a combination of modern style, durability, and environmental awareness.
- Article number: 8311347
- Suppl. article no: 8311347
- Ean no: 7333123064691
- Replaces art.nbr: 8310670
- Material class PCK020
Technical data
- Packagin Size: 1 ST/5 ST
- Energy label: B
- With stop valve for external equipment: Yes
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Type of stop valve for external equipment: Mechanical
- Basic colour: Chrome
- Spout model: Rotating, top
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Accent colour: Chrome
- Type of spout: Pipe
- With couplers: No
- With rosettes: Yes
- With temperature limit: Yes
- Volume supply class: B
- Low-pressure model: No
- Total construction height: 405 mm
- Spout overhang length: 200 mm
- Can be disconnected under water pressure: No
- Tap can be folded in (bayonet): No
- Max. tap capacity (at 300 kPa): 7.3 l/min
- Cold start function: Yes
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: No
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- Reserve accumulator: No
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 85 °C
- With drain plug: No
- With chain: No
- Chain eye included: No
- With transformer: No
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: No
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- REACH Date: 2023-01-27
- GWP-tot (A1-A3): 15,9000 kgCO2e/ST
- REACH Information obligation: No
