Oras

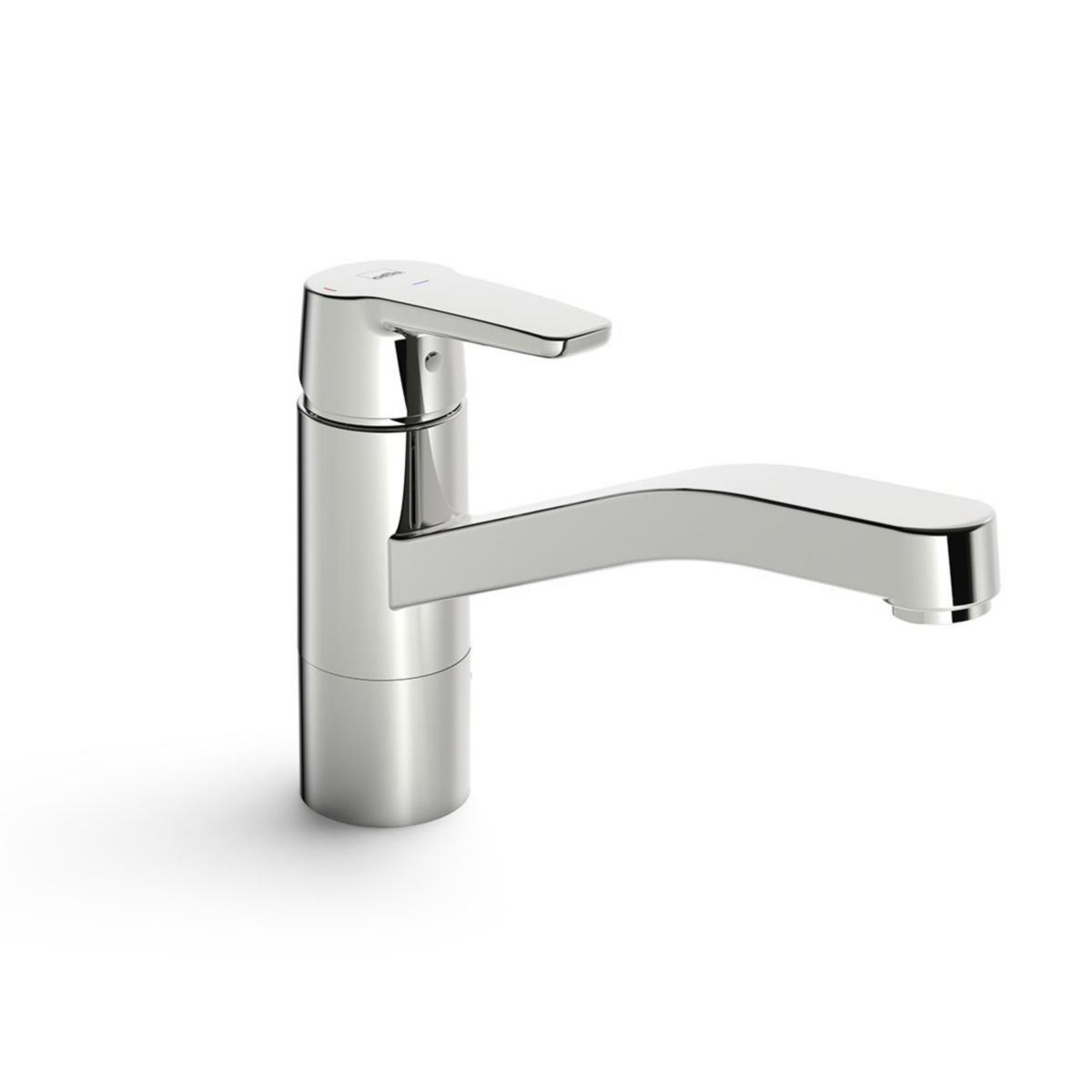

Kitchen Mixer 1530F Oras Swea
ORAS SWEA KITCHEN MIXER ECO, 1530F
Article number: Suppl. article no:
8310603
1530F
to see price and stock
- Article number: 8310603
- Suppl. article no: 1530F
- Ean no: 6414150085727
- Replaces art.nbr: 8347915
- Material class PCK13B
Technical data
- Packagin Size: 1 ST/10 ST
- Cold start function: Yes
- With stop valve for external equipment: No
- Basic colour: Chrome
- Connection size supply: 3/8 inch (10)
- Connection supply: Hose (gland nut)
- Surface protection: Chromium-plated
- Mounting method: Top/tap hole

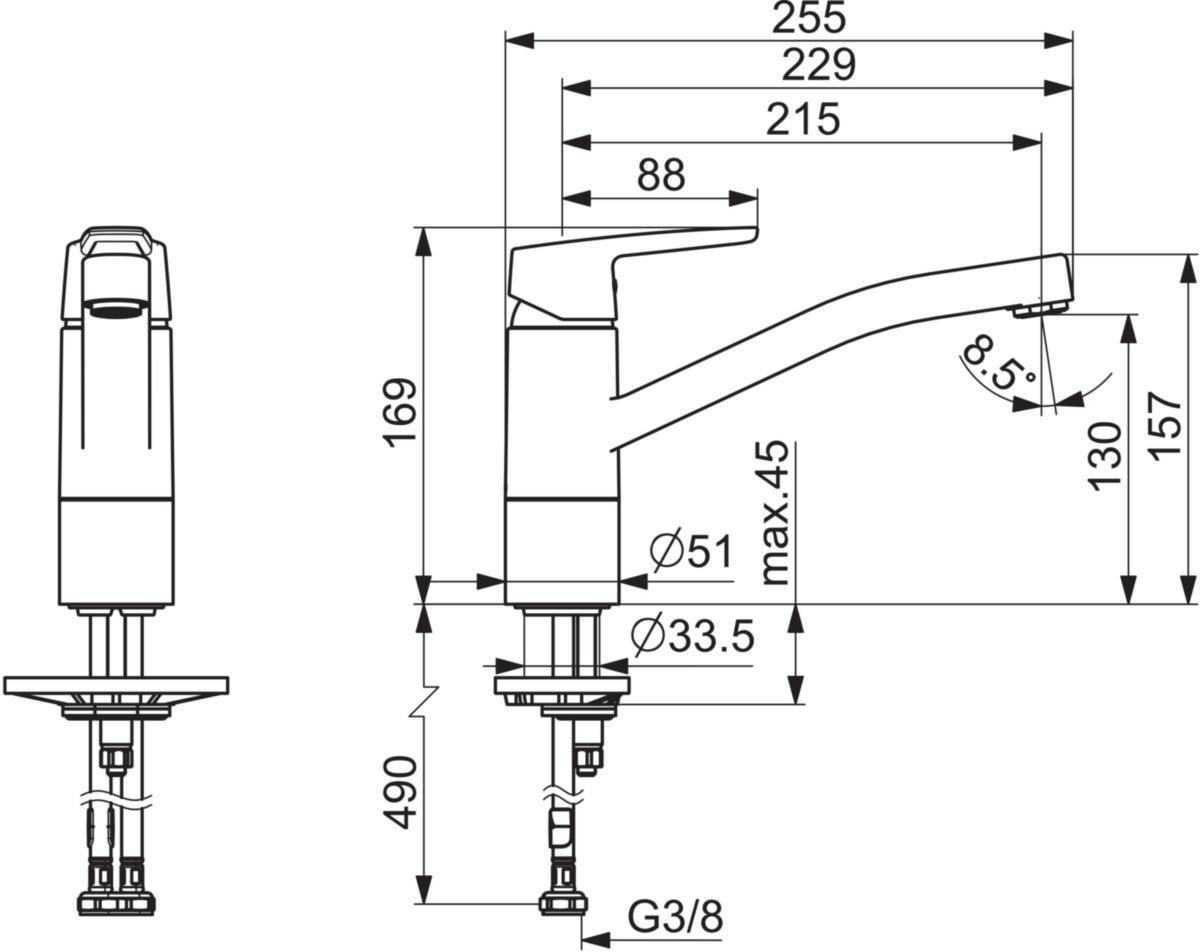

- Total construction height: 169 mm
- Construction height, underside of tap nozzle: 130 mm
- Spout overhang length: 255 mm
- Max. tap capacity (at 300 kPa): 9 l/min
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- KIWA certified: Yes
- Material tap: Brass
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 11,2448 kgCO2e/ST
- REACH Information obligation: Yes
