Oras

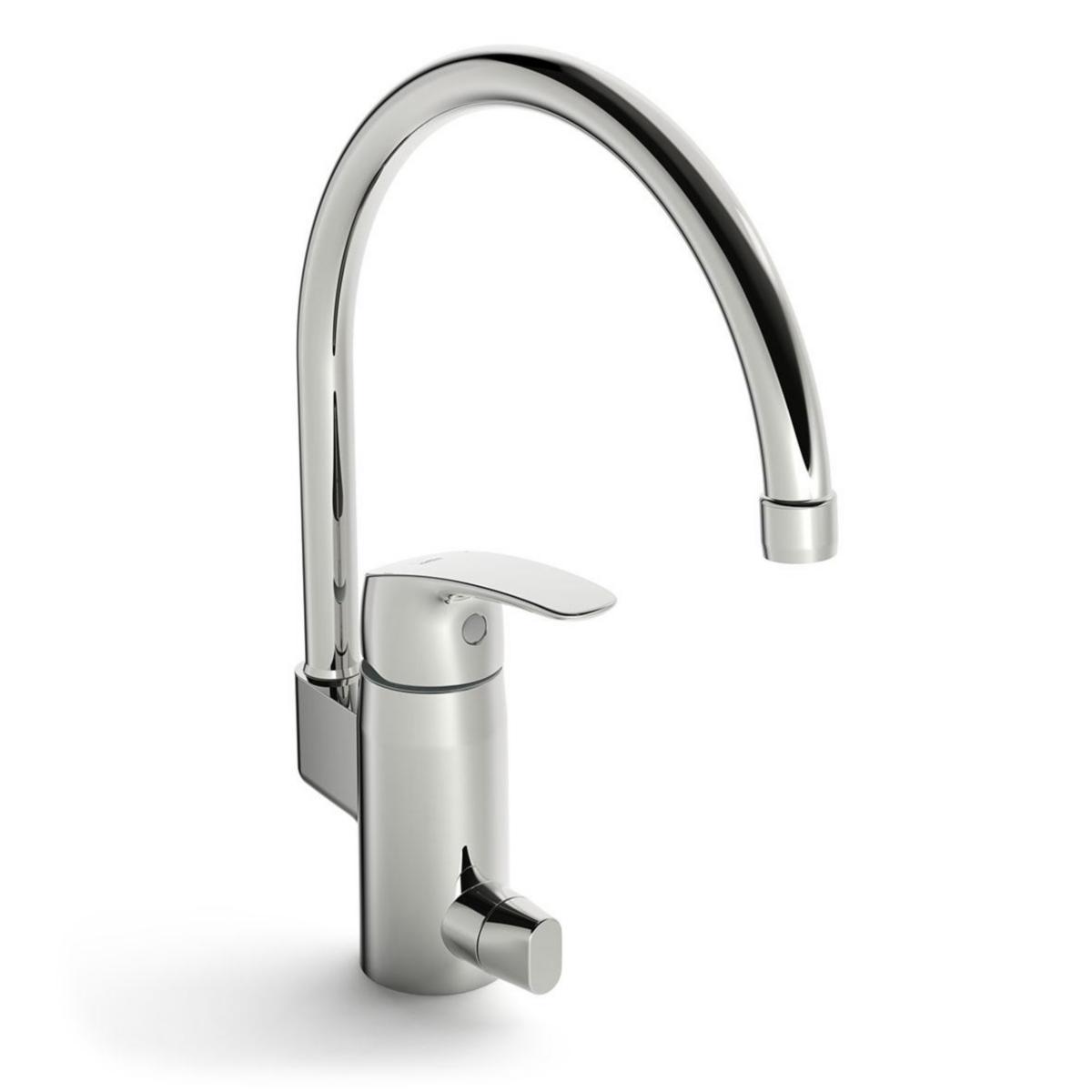

Kitchen Mixer 1039F Oras Safira
ORAS SAFIRA KITCHEN MIXER WITH DWV, 1039F
Article number: Suppl. article no:
8310574
1039F
to see price and stock
Kitchen mixer with ceramic dishwasher shut-off and high spout. The turning radius of the outlet spout is preset to 120 ° (can be limited to 0 ° / 60 ° / 360 °). Built-in latch for limiting temperature and flow. F = flexible connection.
- Article number: 8310574
- Suppl. article no: 1039F
- Ean no: 6414150078958
- Replaces art.nbr: 8347459 8347961
- Material class PCK13A
Technical data
- Packagin Size: 1 ST/4 ST/72 ST
- Cold start function: Yes
- With stop valve for external equipment: Yes
- Basic colour: Chrome
- Surface treatment: Polished
- Connection size supply: 3/8 inch (10)
- Connection supply: Hose (gland nut)
- Type of stop valve for external equipment: Mechanical
- Spout model: Rotating, top
- Surface protection: Chromium-plated
- Mounting method: Top/tap hole
- Accent colour: Chrome
- With diverter unit: No
- With temperature limit: Yes
- Low-pressure model: No
- Total construction height: 338 mm
- Construction height, underside of tap nozzle: 206 mm
- Spout overhang length: 178 mm
- Can be disconnected under water pressure: No
- Tap can be folded in (bayonet): No
- Max. tap capacity (at 300 kPa): 12 l/min
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Suitable for boiling water: No
- Material tap: Brass
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 13,8356 kgCO2e/ST
- REACH Information obligation: Yes
