Oras

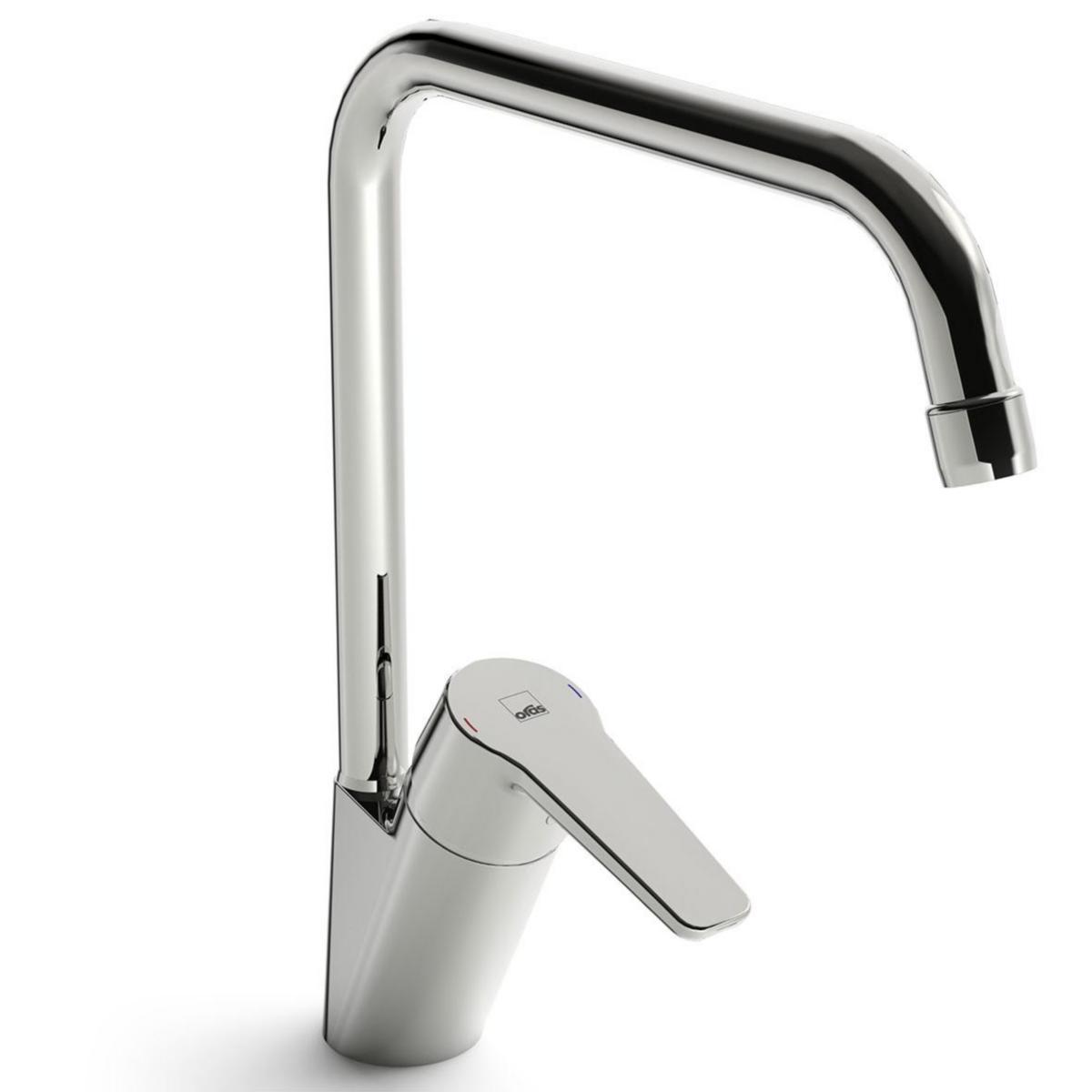

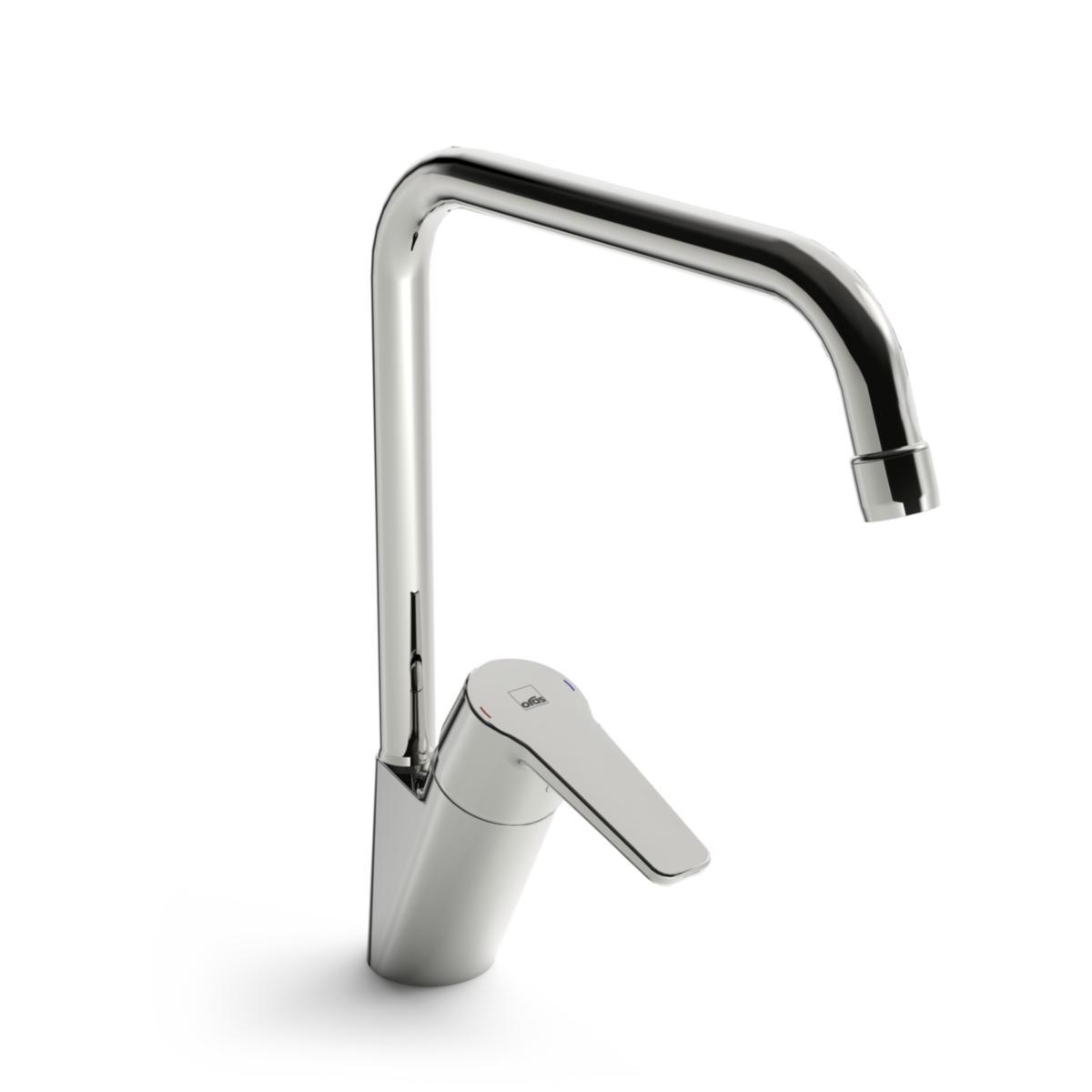

Kitchen Mixer 3934F Oras Saga
ORAS SAGA KITCHEN MIXER 3933F
Article number: Suppl. article no:
8310553
3933F
to see price and stock
- Article number: 8310553
- Suppl. article no: 3933F
- Ean no: 6414150078026
- Replaces art.nbr: 8347888
- Material class PCK13B
Technical data
- Packagin Size: 1 ST/4 ST
- Volume supply class: A
- Cold start function: No
- With stop valve for external equipment: No
- Basic colour: Chrome
- Surface treatment: Polished
- Connection size supply: 3/8 inch (10)
- Connection supply: Hose (gland nut)
- Type of stop valve for external equipment: Mechanical
- Spout model: Rotating, top
- Surface protection: Chromium-plated
- Mounting method: Top/tap hole
- Accent colour: Chrome
- Type of spout: Other
- With couplers: No
- With rosettes: No
- With temperature limit: Yes
- Low-pressure model: No
- Construction height, underside of tap nozzle: 228 mm
- Spout overhang length: 221 mm
- Can be disconnected under water pressure: No
- Tap can be folded in (bayonet): No
- Max. tap capacity (at 300 kPa): 10.2 l/min
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: No
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- Reserve accumulator: No
- KIWA certified: Yes
- Degree of protection (IP): Other
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 80 °C
- With building management system connection: No
- With drain plug: No
- With chain: No
- Chain eye included: No
- With transformer: No
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Possibility to limit the max. swivel range of the spout: Yes
- Locking mechanism: Cartouche, ceramic
- Self-closing: No
- Temperature limit retrofittable: No
- Type of electronic operating method: Other
- Type of grip: Single-grip
- Type of power supply: Other
- Type of temperature control: Other
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 9,6357 kgCO2e/ST
- REACH Information obligation: Yes
