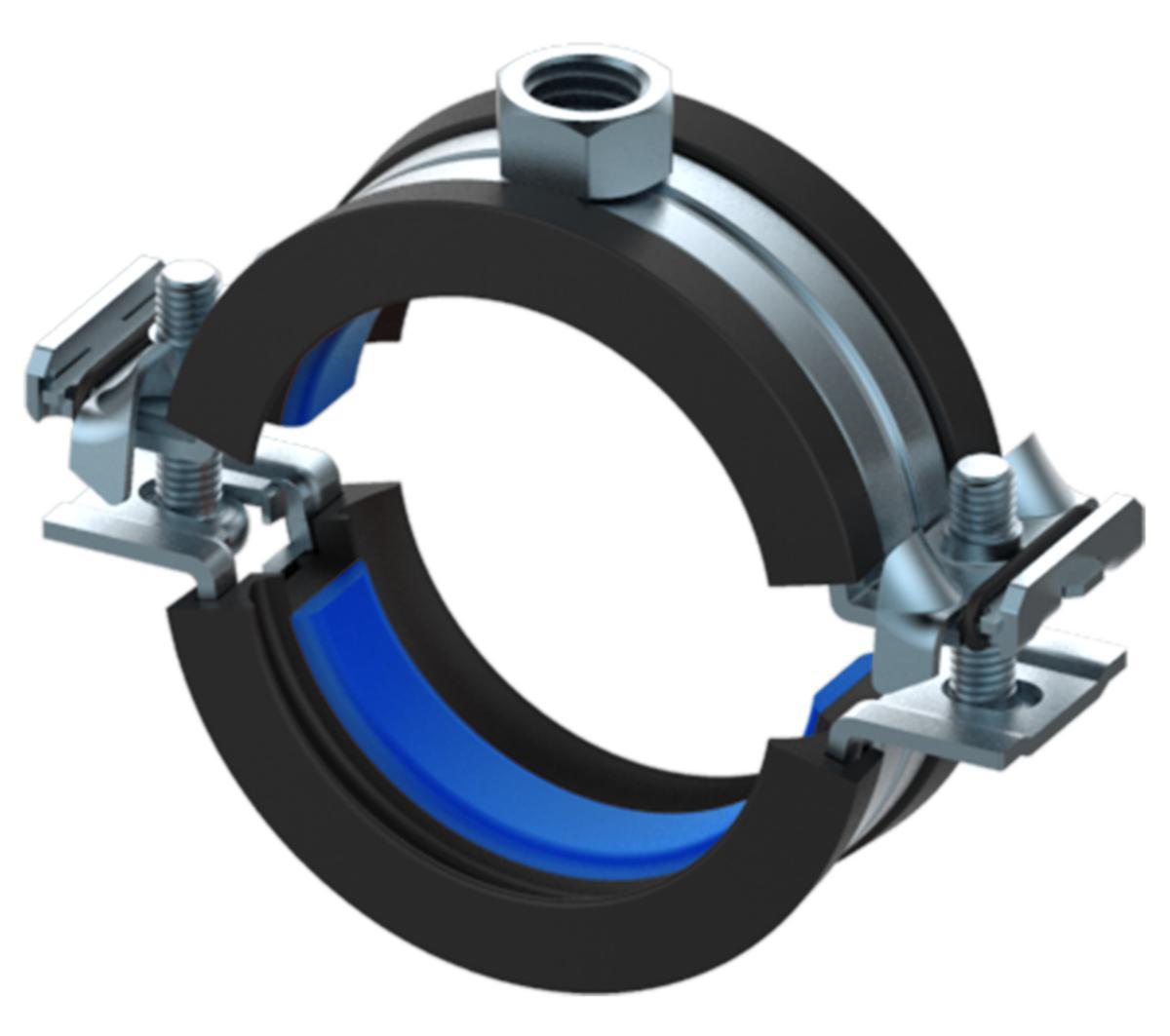

Rubber-Coated Two-Component M8 Clips 280, Jirva
CLAMP 280 12-14MM JIRVA RUBBER-COATED M8- THREAD
Article number: Suppl. article no:
3793579
272012
to see price and stock
- Article number: 3793579
- Suppl. article no: 272012
- Ean no: 7340080790938
- Material class PLF100
Technical data
- Packagin Size: 1 ST/100 ST/9600 ST
- Outer pipe diameter: 12-15 mm
- Width: 25 mm
- Connection size, connection facility: M8
- Material: Steel
- Permitted work load: 1000 N
- Inlay: Rubber
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- FM quality mark: No
- Height: 34 mm
- LPCB quality mark: No
- Lock facility: Other
- UL quality mark: No
- ULC quality mark: No
- Surface treatment: Untreated
- KIWA certified: No
- Medium temperature (continuous): 0-95 °C
- Corrosiveness class: C1
