Ergofast
Fixing Clamp EF FGL, MEFA

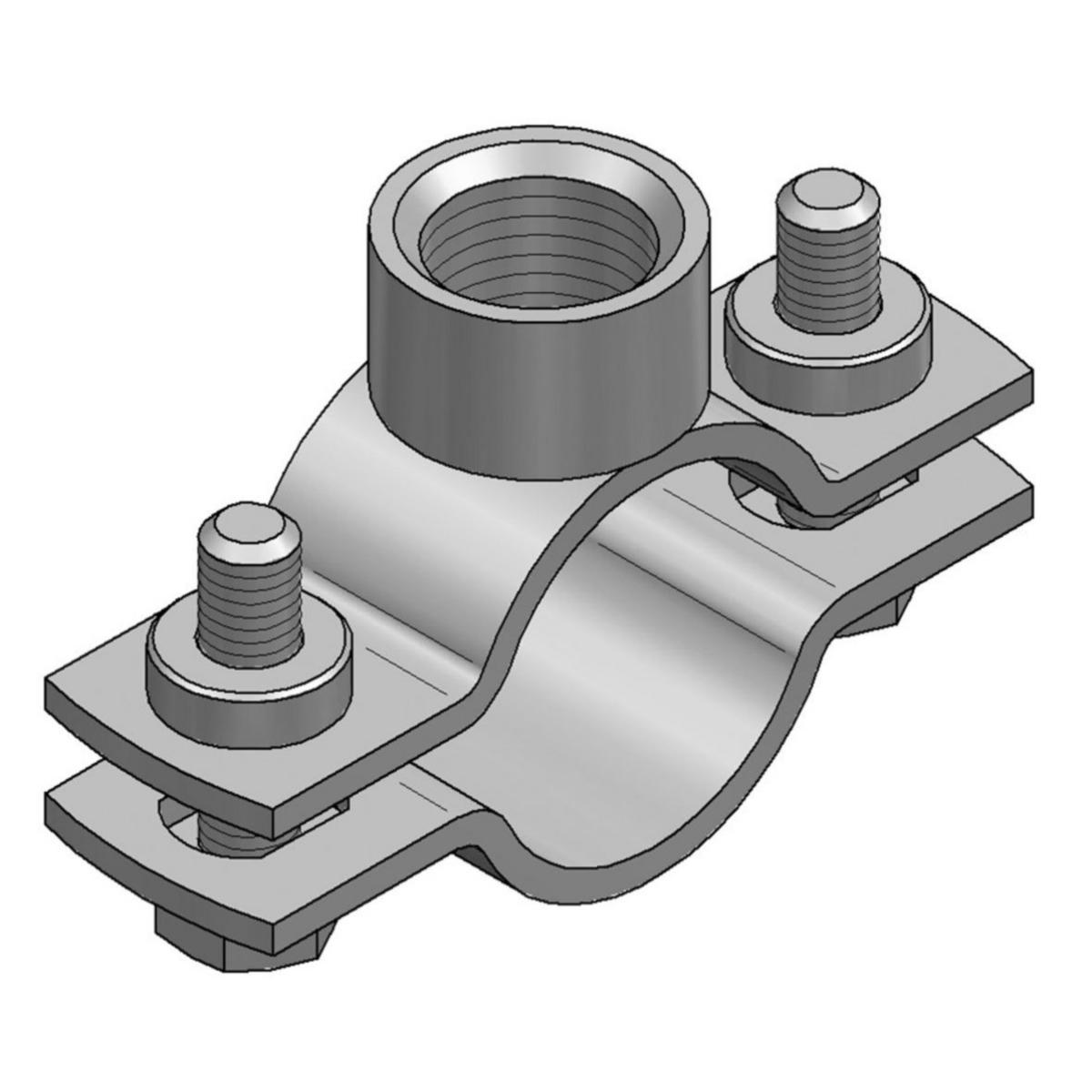

PIPE CLAMP FGL 36-40 FIXSVEP .MEFA
Article number: Suppl. article no:
4024380
69081
to see price and stock
Electro-galvanized Fix Clamp with M8/M10 and 1/2" suspension option. The dimensions of the pipe clamp are 25 x 3.0 mm. Recommended for a maximum axial force of 0.7 kN.
- Article number: 4024380
- Suppl. article no: 69081
- Ean no: 4250928402721
- Material class PLF200
Technical data
- Outer pipe diameter: 36-40 mm
- Width: 92 mm
- Connection size, connection facility: 1/2 inch - M8/M10
- Material: Steel
- Permitted work load: 700 N
- Inlay: None
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- Height: 61 mm
